3D Composite Board Factory

High compression strength



Good Waterproofing and Drainage



Have Good Vertical Drainage Properties


  Contact Now
Product Details

Product Details

Composite drainage net is made from geonet bonding  layers of geotextile which combines the homes of geotextile filtration and geonet drainage and safety,providing entire“inverted clear out drainage to shield”effect.drainage nets center is extruded by way of excessive density polyethylene uncooked materials adding carbon black and ultraviolet and antioxidant stabilizer.the interlaced net office work right into a drainage channel which has fantastic vertical drainage residences.

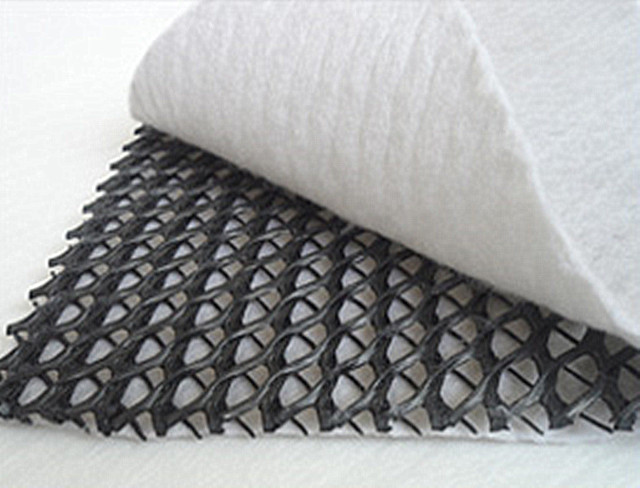

3D Composite Board.jpg


Parameter

Test Properties

Unit

DN750

DN1000

DN1300

DN1600

Unit weight

G/M²

750

1000

1300

1600

Thickness

MM

5

6

7

7.6

Hydraulic Conductivity

M/S

K*10-4

K*10-4

K*10-4

K*10-4

Elongation

%

<50

<50

<50

<50

Tensile Strength(geonet)

Kn/m

8

10

12

14

Geotextile weight

G/M²

200-200,300-300,400-400


Feature

High compression strength

Reduces surface temperature around building

Easy installation

Unique and easy to use interlocking system

Promotes fast and excellent plant growth

Strong structure can support heavy loads

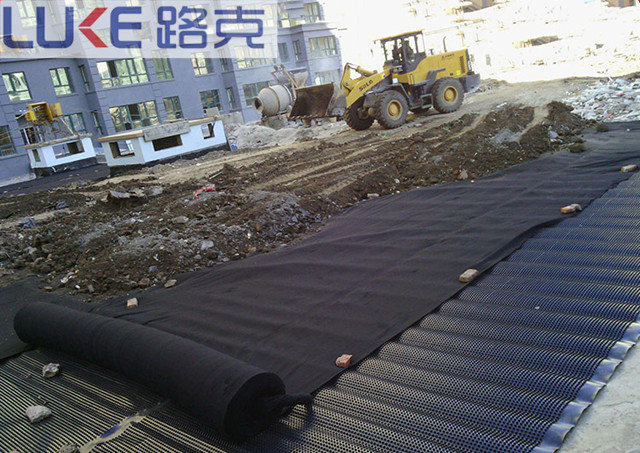

3D Composite Board Factory.jpg



Application

Landfill drainage;Highway roadbed and pavement drainage;

Railway soft soil foundation reinforcement drainage;

Railway roadbed drainage,tunnel drainage;

Underground structure drainage;

Retaining wall drainage;Garden and playground drainage.
