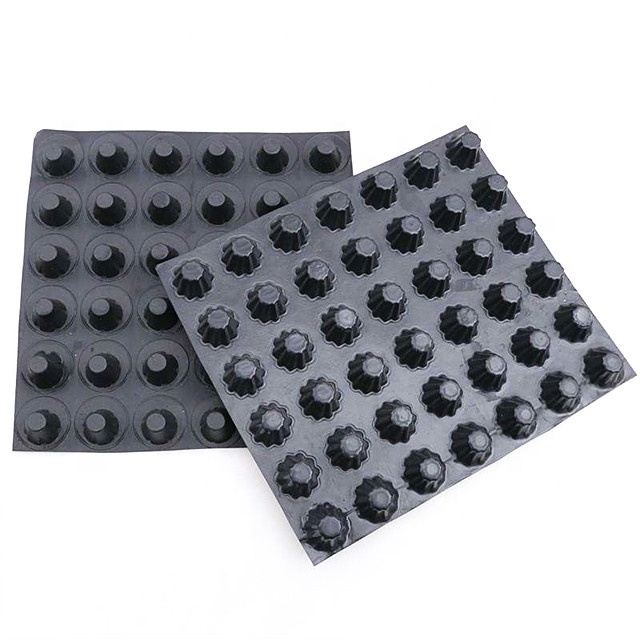

Dimple Drain Board

High compression strength

Good Waterproofing and Drainage

Have Good Vertical Drainage Properties

Color: Black Green White

Width: 2~3M

Thickness: 8~30MM

Roll Length: 5~20M


  Contact Now
Product Details

Product Description

Plastic HDPE dimple drainage board is the use of foundation or blow molding method to produce high density
polyethylene (HDPE) geomembrane, pressed on geomembrane pressure after the special craft the closed swelled the
frustum of a cone shape, having a three-dimensional space and some support stiffness,liquid, gas can flow excreted
within its plate.
This is a latent many functions materials, the use of this plate can be easily constructed out of the overhead layer, using
overhead layer formed drainage, exhaust passage, at the same time to use the overhead layer reaches low noise, vibration
isolation function; drainage drain board water permeability in the field of civil construction can be widely used in the
overhead layer of roofing systems, roof planting, drainage protection building basement waterproofing system, and interior
floor insulation moisture protection, road and rail tunnel drainage water etc.


Dimple Drain Board


Parameter



No

Model

Name

LK-H08

LK-H10

LK-H12

LK-H16

LK-H20

LK-H25

LK-H30

1

Material

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

2

Drain height(mm)

08

10

12

16

20

25

30

3

Weight (g/m2)

1000

1100

1200

1400

1500

1600

1800

4

Board thickness (mm)

0.7

0.8

0.9

1

1.1

1.1

1.2

5

Tensile strength(N/100mm)

350

350

350

350

350

350

350

6

Anti- pression strength(Kpa)

300

300

300

300

300

300

300

7

Elongation rate (% >)

80

80

80

80

80

80

80

8

Flow (cm3.s) ≥

10

10

10

10

10

10

10

9

CBR puncture strength  N

350

350

350

350

350

350

350



Product Features
This is a latent many functions materials, the use of this plate can be easily constructed out of the overhead layer, using overhead layer formed drainage, exhaust passage, at the same time to use the overhead layer reaches low noise, vibration isolation function; drainage drain board water permeability in the field of civil construction can be widely used in the overhead layer of roofing systems, roof planting, drainage protection building basement waterproofing system, and interior floor insulation moisture protection, road and rail tunnel drainage water etc.

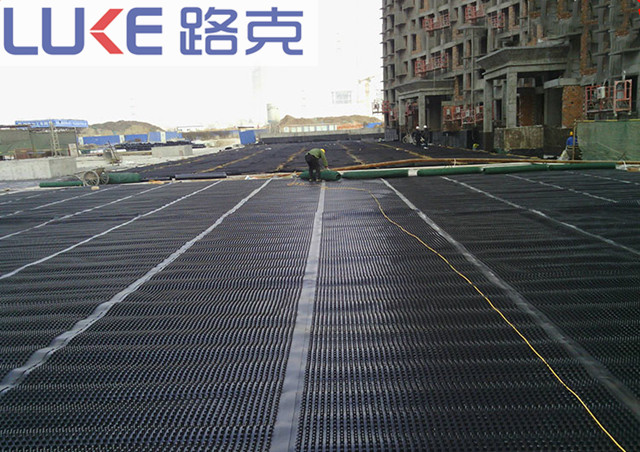

Dimple Drain Board


Application

· Greening Projection: garage roof greening, roof garden, vertical greening, inclined roof greening, football field, golf course.

· Municipal Engineering: Airport, Road Subgrade, Subway, Tunnel, Landfill.

· Architectural Engineering: building foundation, basement wall and floor and roof, roof impervious layer and thermal insulation layer, etc.

· Water conservancy projection: water seepage prevention work of reservoir and artificial lake .

· Traffic engineering: roads, railway subgrade, dams and slope protection layers.

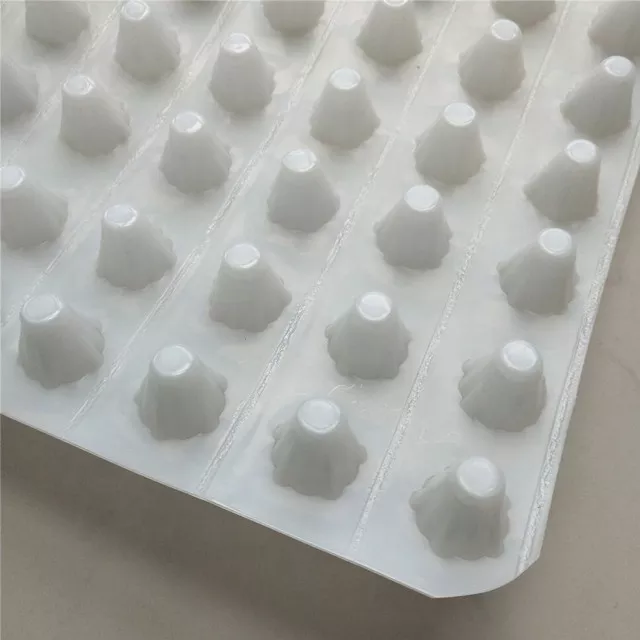

Dimple Drain Board
