HDPE Waterproof Dimple Drain Board

HDPE dimple drain board have good waterproofing.

Fast drainage speed: The drainage plate has good hydrophobic performance and can quickly discharge a lot of rainwater.

Good durability: The drainage board is made of corrosion-resistant and age-resistant polymer material with long service life.

Easy installation: The installation process of the drain board is simple, and the construction conditions are not high.

Affordable: Compared with other drainage equipment, the price of the dimple drain board is relatively low.


  Contact Now
Product Details

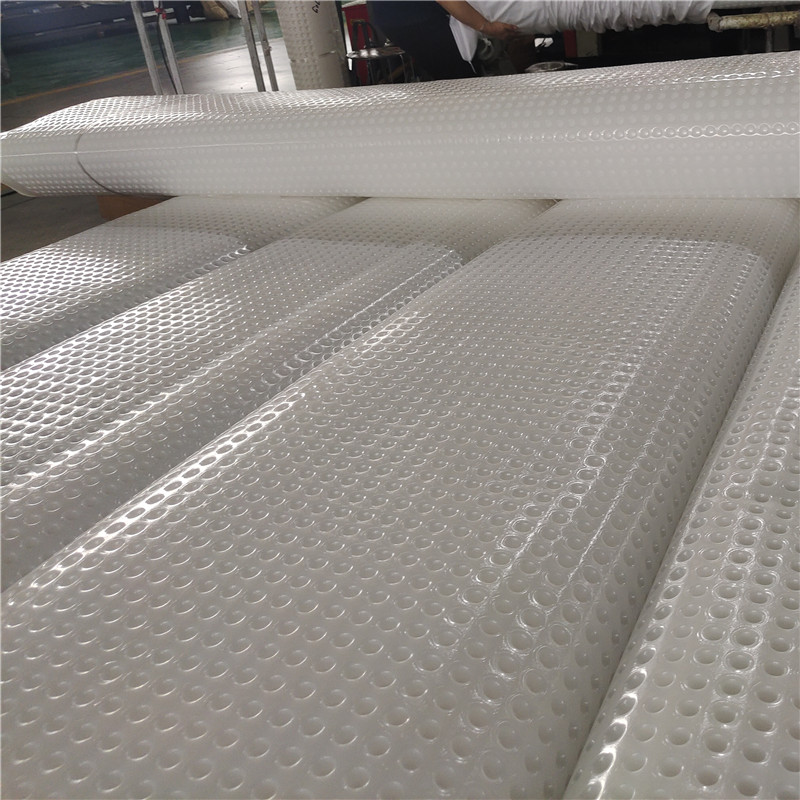

HDPE Waterproof Dimple Drain Board

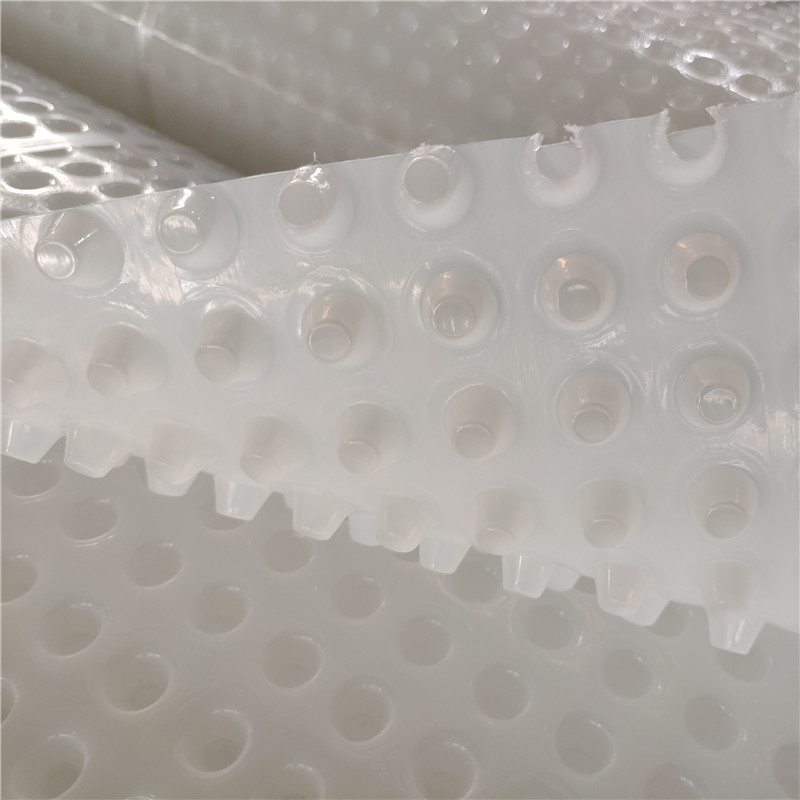

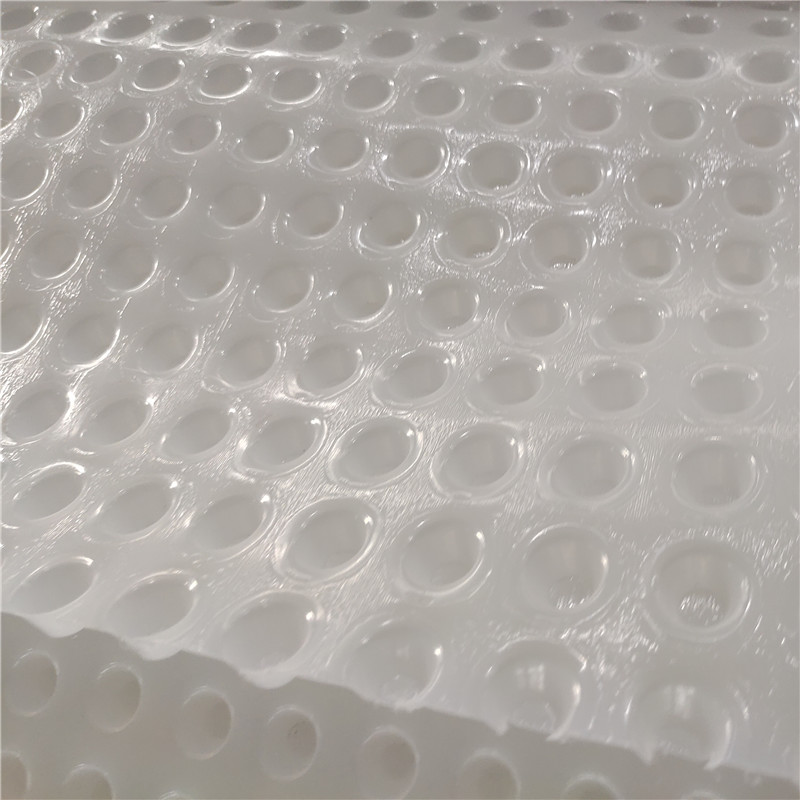

Dimple drain board is the use of foundation or blow molding method to produce high density polyethylene(HDPE) geomembrane,pressed on geomembrane pressure after the special craft the closed swelled the frustum of a cone shape,having a three-dimensional space and some support stiffness,liquid,gas can flow excreted within its plate.

Drainage protection board is widely used in the field of civil engineering.


HDPE Waterproof Dimple Drain Board.jpg


The technical parameters of water proof dimple drain board:


No


LK-H08

LK-H10

LK-H12

LK-H16

LK-H20

LK-H25

LK-H30

1

Material

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

2

Drain height(mm)

08

10

12

16

20

25

30

3

Weight(g/m2)

1000

1100

1200

1400

1500

1600

1800

4

Board thickness(mm)

0.7

0.8

0.9

1

1.1

1.1

1.2

5

Tensile strength(N/100mm)

350

350

350

350

350

350

350

6

Anti-pression strength(KPa)

300

300

300

300

300

300

300

7

Elongation rate(% >)

80

80

80

80

80

80

80

8

Flow (cm3.s)≥

10

10

10

10

10

10

10

9

CBR puncture strength N

350

350

350

350

350

350

350


HDPE Waterproof Dimple Drain Board.jpg


HDPE dimple drainage sheet function:

◆ Drainage and water conduction:

The drainage board has excellent drainage and water conduction performance, which can quickly discharge rainwater and avoid water accumulation.

Auxiliary waterproof ‌:

As an auxiliary waterproof material, prevent moisture penetration and protect the foundation of the building.

‌Protective effect‌ :

When backfilling soil, avoid the damage of waterproof layer, play a protective role.

Besides the drainage board also has the functions of sound insulation, ventilation and moisture-proof to improve the comfort of the building.


HDPE Waterproof Dimple Drain Board.jpg

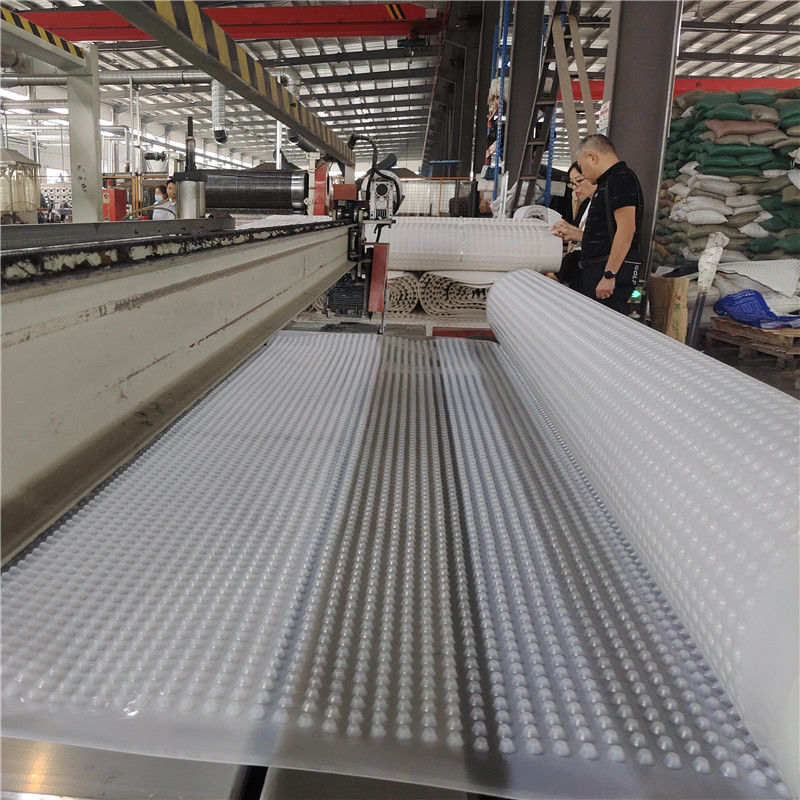

HDPE Waterproof Dimple Drain Board packaging and delivery:

 Standard packaging or customer's requirements.


HDPE Waterproof Dimple Drain Board.jpg


After-sales service:

Our company provides a one-stop service, and our technical staff provides 24/7 online support to solve any technical problems related to hdpe dimple drain board in a timely manner. Thank you for your love of our products.


HDPE Waterproof Dimple Drain Board.jpg

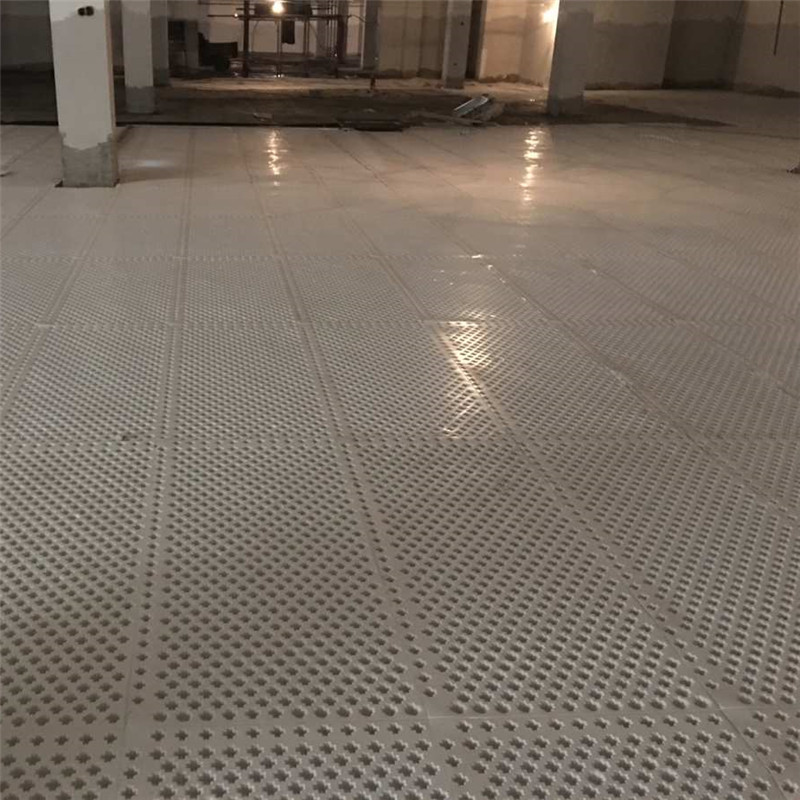

Applications in different projects:

Greening project : used for garage roof greening, roof garden, football field, golf course, etc.

‌Municipal engineering ‌ : including airport, road subgrade, subway tunnel, landfill and so on.

‌Construction project ‌ : used for building foundation upper or lower layer, basement inside and outside wall, roof green drainage and anti-seepage and heat insulation layer.

‌Traffic engineering ‌ : highway, railway roadbed pavement, embankment and slope protection layer backflow drainage.


HDPE Waterproof Dimple Drain Board.jpg
