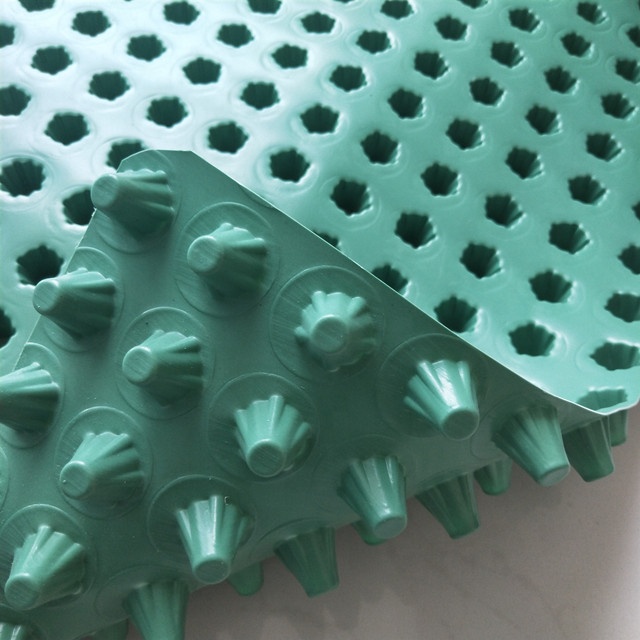

High Quality Plastic HDPE Dimple Drain Board

High compression strength

Good Waterproofing and Drainage

Have Good Vertical Drainage Properties

Color: Black Green White

Width: 2~3M

Thickness: 8~30MM

Roll Length: 5~20M


  Contact Now
Product Details

Product Details

That is a latent many functions substances, using this plate may be effortlessly constructed out of the overhead layer, using overhead layer shaped drainage, exhaust passage, on the same time to apply the overhead layer reaches low noise, vibration isolation function.


Drainage drain board may be extensively used in the overhead layer of roofing systems, roof planting, drainage protection building basement waterproofing device, and interior floor insulation moisture safety, road and rail tunnel drainage water and so forth.


Factory Drainage Boards.jpg


Parameter



No

Model

Name

LK-H08

LK-H10

LK-H12

LK-H16

LK-H20

LK-H25

LK-H30

1

Material

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

2

Drain height(mm)

08

10

12

16

20

25

30

3

Weight (g/m2)

1000

1100

1200

1400

1500

1600

1800

4

Board thickness (mm)

0.7

0.8

0.9

1

1.1

1.1

1.2

5

Tensile strength(N/100mm)

350

350

350

350

350

350

350

6

Anti- pression strength(Kpa)

300

300

300

300

300

300

300

7

Elongation rate (% >)

80

80

80

80

80

80

80

8

Flow (cm3.s) ≥

10

10

10

10

10

10

10

9

CBR puncture strength  N

350

350

350

350

350

350

350


 Feature

1.Convenient construction, easy maintenance and economy.

2.Strong resistance to load and durability.

3.The water can be partially stored and the remaining water can be drained quickly.

4.It provides sufficient moisture and oxygen for plant production.

5.Light weight, the roof heat insulation function strong.


Factory Drainage Boards.jpg



Application

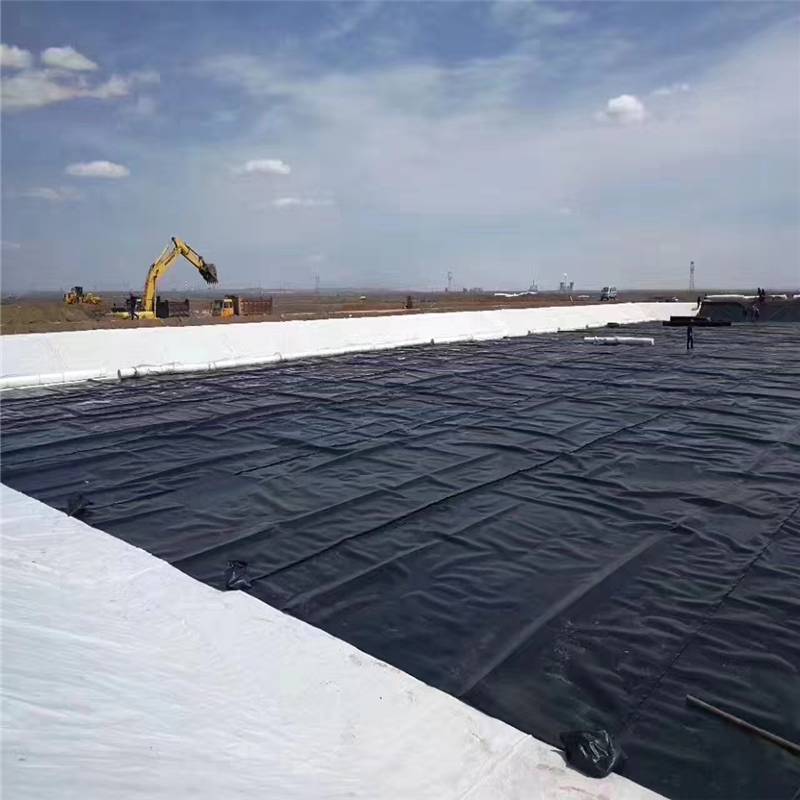

· Greening Projection: garage roof greening, roof garden, vertical greening, inclined roof greening, football field, golf course.

· Municipal Engineering: Airport, Road Subgrade, Subway, Tunnel, Landfill.

· Architectural Engineering: building foundation, basement wall and floor and roof, roof impervious layer and thermal insulation layer, etc.

· Water conservancy projection: water seepage prevention work of reservoir and artificial lake .

· Traffic engineering: roads, railway subgrade, dams and slope protection layers.

Dimple Drain Board
