Biaxial Geogrid for Road Construction

High Tensile Strength and Low Elongation

Excellent soil stabilization

Good sub-base reinforcement

Anti-corrosion

Easy to install

Contact Now

Product Details

Product Details

Fiberglass geogrid is manufactured from tremendous reinforcement type non-alkali glass fiber yarn that is weaved into base material by way of using overseas advanced warp knitting directional shape. fiberglass geogrid could make full use of yarn fabric electricity to improve its chemical performance, excessive anxiety resistance, tearing resistance and creep resistance.

Fiberglass geogrid system is extensively used to enhance avenue surface, prevent dual carriageway harm including crack and rut from happening, solve the problem that asphalt street floor is hard to enhance.

Geogrid of Fiberglass

Parameter

Item		LKSG 30-30	LKSG 50-50	LKSG 80-80	LKSG 100-100	LKSG 120-120	LKSG 200-200
Tensile Strength kN/m	MD	30	50	80	100	120	200
	CD	30	50	80	100	120	200
Break Elongation Ratio(%)	MD	≤3
	CD	≤3
Mesh Size(mm)		12.712.7 25.425.4 40*40
Roll Width(m)		1-6
Note:The specificitions can be customized according to the customer's needs.

Feature

Excellent reinforcement material in road construction.

Suitable for all types of asphalt mixes.

Minimizes both thermal and stress related reflective cracking.

Extending service life of road and prevent deflection cracks.

Increases the fatigue life of pavements with weak foundations.

Extends pavement life.

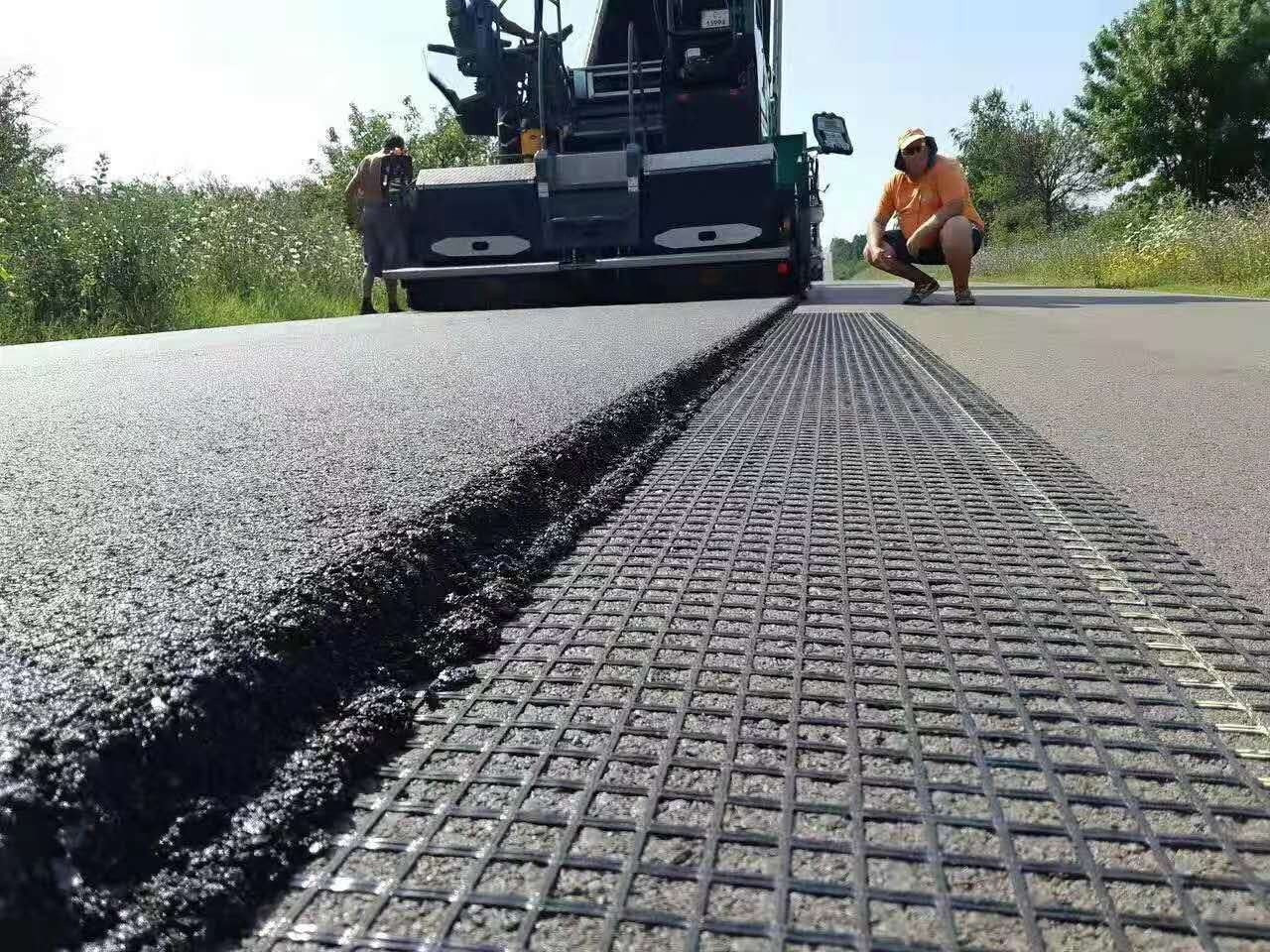

The Fiberglass Geogrid.jpg

Application

* Widely applied in asphalt pavement reinforcement, soil stabilization and embankment reinforcement.
* It can be used as secondary enhanced geogrid.
* Widely used in the reinforcement of soft soil, segmental retaining walls, slopes and subgrade.
* Commonly used in subways, railways and highways construction

The Fiberglass Geogrid.png
