Fiberglass Geogrids

High Tensile Strength and Low Elongation

Excellent soil stabilization

Good sub-base reinforcement

Anti-corrosion

Easy to install


  Contact Now
Product Details

Product Details

Fiberglass geogrid is made of excellent reinforcement type non-alkali glass fiber yarn which is weaved into base material by using foreign advanced warp knitting directional structure. Fiberglass geogrid can make full use of yarn textile strength to improve its chemical performance, high tension resistance, tearing resistance and creep resistance.

Fiberglass geogrid system is widely used to reinforce road surface, prevent highway harm such as crack and rut from occurring, solve the problem that asphalt road surface is difficult to reinforce.

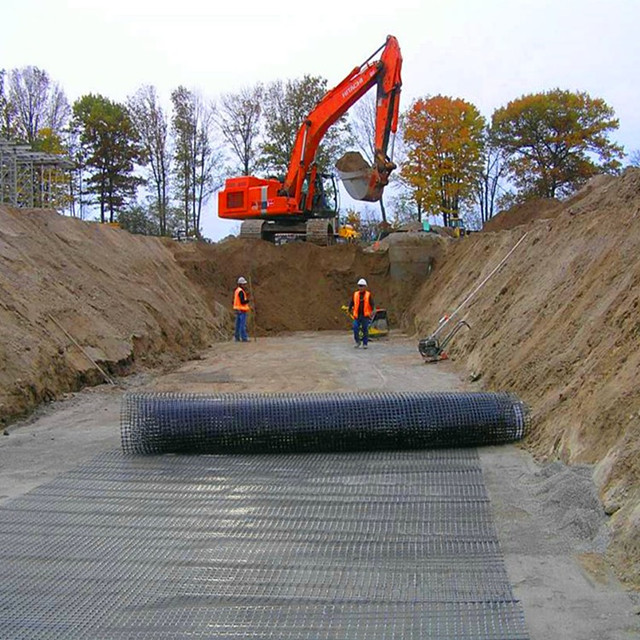

Fiberglass Geogrids .jpg


Parameter

Item

LKSG 30-30

LKSG 50-50

LKSG 80-80

LKSG 100-100

LKSG 120-120

LKSG 200-200

Tensile
Strength kN/m

MD

30

50

80

100

120

200

CD

30

50

80

100

120

200

Break Elongation
Ratio(%)

MD

                                   ≤3

CD

                                   ≤3

Mesh Size(mm)

       12.7*12.7     25.4*25.4     40*40

Roll Width(m)

                           1-6

Note:The specificitions can be customized according to the customer's needs.


Feature

Excellent reinforcement material in road construction.

Suitable for all types of asphalt mixes.

Minimizes both thermal and stress related reflective cracking.

Extending service life of road and prevent deflection cracks.

Increases the fatigue life of pavements with weak foundations.

Extends pavement life.


Fiberglass Geogrids.jpg


Application

* Widely applied in asphalt pavement reinforcement, soil stabilization and embankment reinforcement.
* It can be used as secondary enhanced geogrid.
* Widely used in the reinforcement of soft soil, segmental retaining walls, slopes and subgrade.
* Commonly used in subways, railways and highways construction

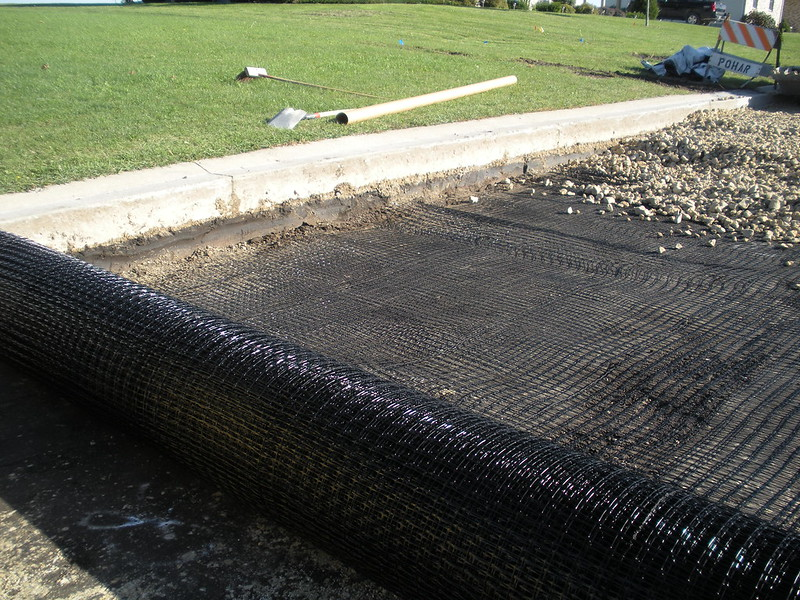

Fiberglass Geogrid.jpg
