Geocell Ground Grid

Geocell groud grid has strong impact resistance.

HDPE geocell has good water permeability.

Geocell erosion control products can bear large loads and has good stability.

Flexible to fold during the transport and installation on construction site.

Higher lateral restrict and prevent slippery.

Contact Now

Product Details

Geocell Ground Grid

Geocell is made of a new type of high strength geosynthetic, which is popular with both domestic and abroad, in accordance with GB/T 19274-2003 implementation of the standards, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation which is easily folding and convenient for transportation.

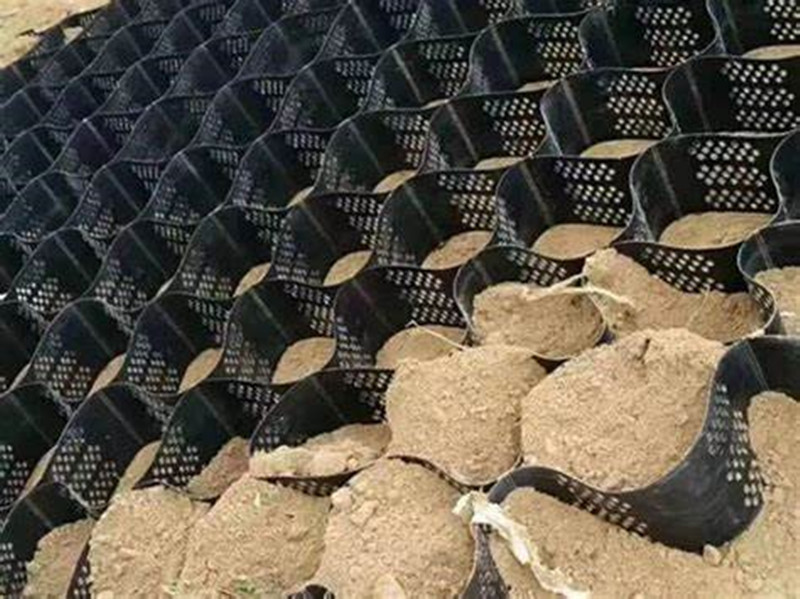

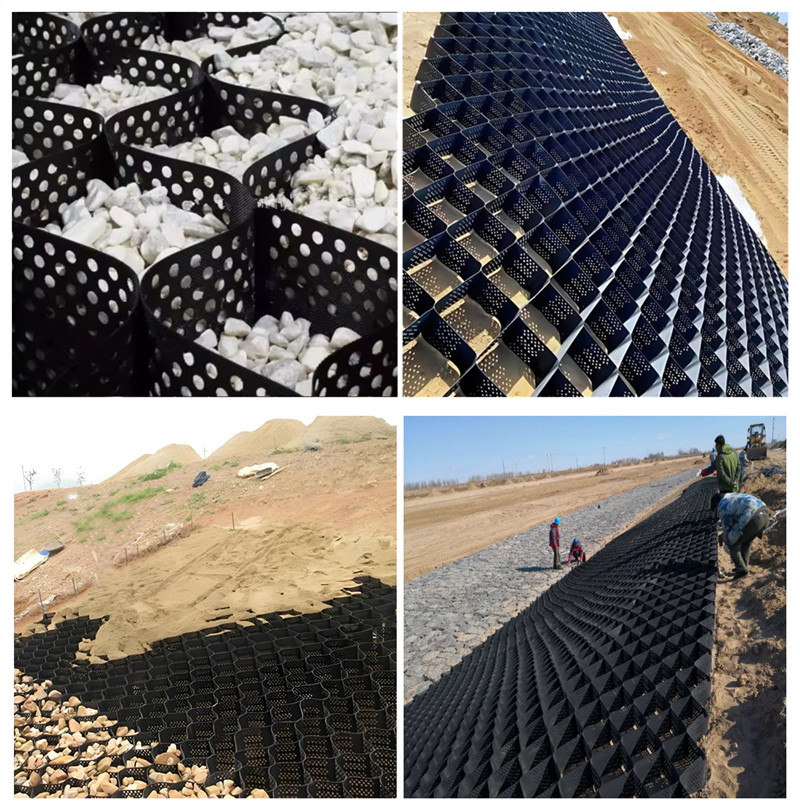

Geocell ground grid forms a reinforced structure in the soil to enhance the bearing capacity and stability of the foundation, thereby improving the engineering properties of weak soil. The geocell with different height and thickness has different bearing capacity, construction influence and application field.

Geocell Ground Grid.jpg

HDPE Geocell technical parameters:

Product Type	Height (mm)	Welding Distance (mm)	Thickness (mm)	Tensile Strength of Welding Points (N/cm)	Tensile Strength of Commection of Cells (N/cm)	Tensile Strength of Yield of Each Sheet (Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤ 1000	1.0-1.4	>100	>120	≥20
Smooth and Perforated	550≤H≤250	330≤A≤ 1000	1.0-1.4	>100	>120	≥20
Textured and Not Perforated	50≤H≤250	330≤A≤ 1000	1.0-1.4	>100	>120	≥20
Textured and Perforated	50≤H≤250	330≤A≤ 1000	1.0-1.4	>100	>120	≥20
Remarks: This is a basic technical specification. All the above technical parameters can be reached according to customer's requirement and other special standard can be carried out by agreement or contract.

Geocell Ground Grid.jpg

Geocell Ground Grid feature:

★High carrying capacity and good dynamic performance and high erosion ability

★High strength: The structure of the geocell is very strong and can withstand the challenges of high loads and long-term use.

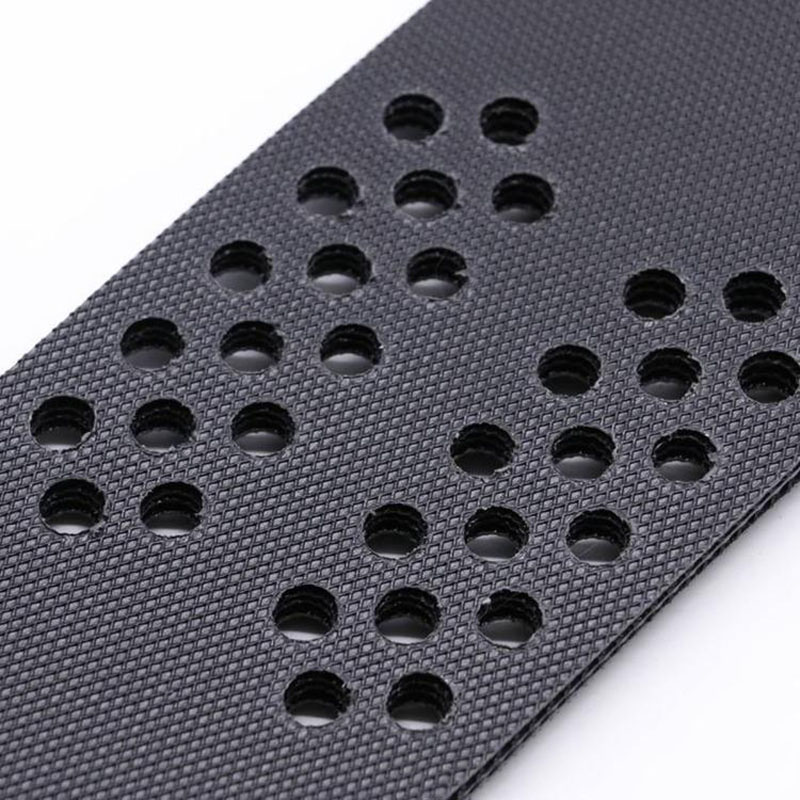

★Water permeability: The holes on the surface of the geogrid can allow water to pass through, and the drainage channel is formed inside it to ensure the normal discharge of groundwater and avoid water accumulation.

★Corrosion resistance: The high-density polyethylene, polypropylene and other materials used in the geocell are not easy to be eroded by chemicals, so they are very durable.

★Light material, resistant to wear, stable in chemical properties, anti-aging, resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.

★High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance the supporting ability and scattered load function of roadbed.

Geocell Ground Grid.jpg

After-sales service:

Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to geocell ground grid in a timely manner. Thank you for your love of our products.

Geocell Ground Grid.jpg

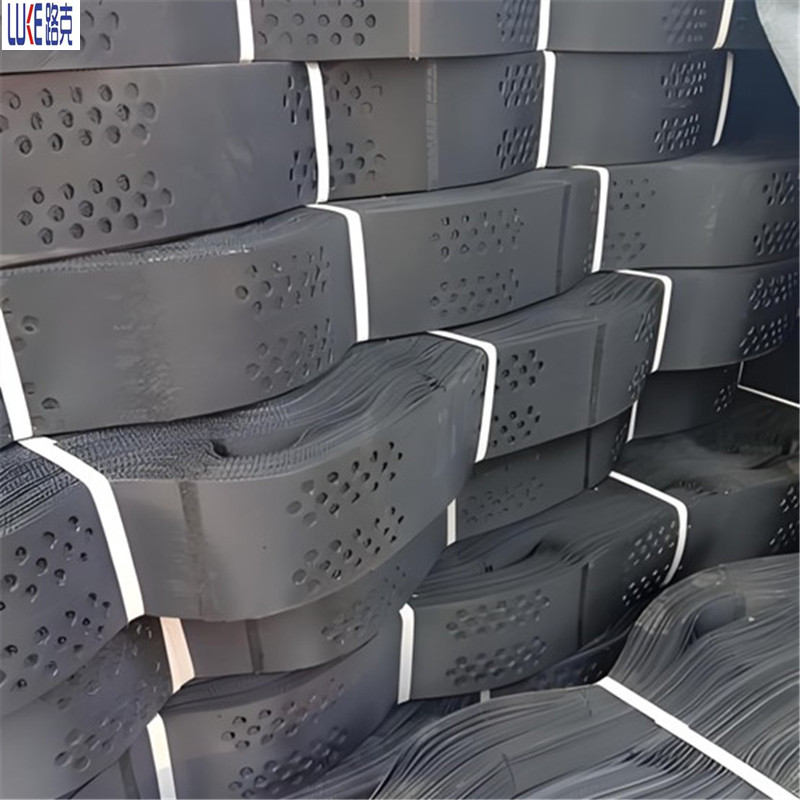

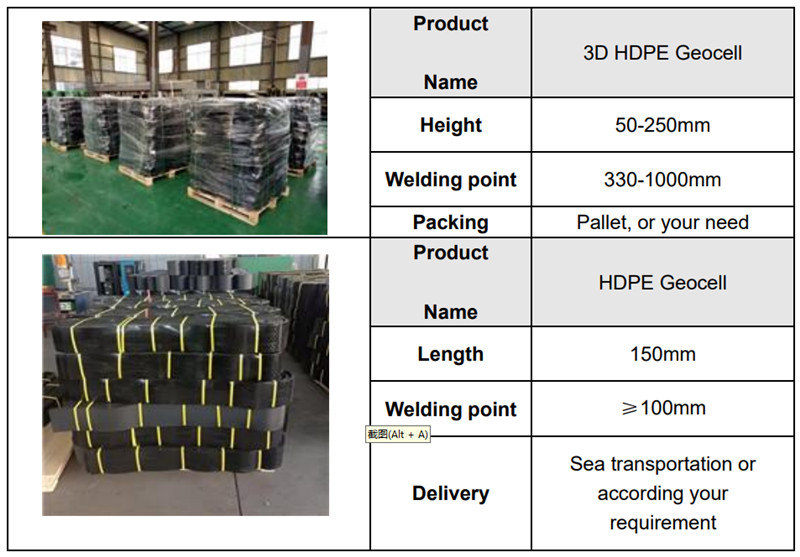

Packaging and delivery:

Geocells are packed with pallet.In the packaging of the HDPE geocells, it is need to choose packaging materials that resist external pressure and wear resistance.

Delivery: By sea and railway.

Geocell Ground Grid.jpg
