Black HDPE Geocell Gravel Grid

The HDPE geocell gravel grid can bear large loads and has good stability.

The geocells have higher lateral restrict and effectively prevent slope landslide and subgrade collapse.

The geocell is flexible and has a small transport volume.

Convenient connection and fast construction speed.

Changing the geocell height, welding distance and other geometric dimensions can meet different engineering needs

Contact Now

Product Details

black HDPE geocell Gravel Grid

Geocell is a network structure made of high-density polyethylene and other materials, the material is light, wear resistance, chemical stability, light oxygen aging and acid and alkali corrosion resistance, suitable for different soil and climate conditions.The HDPE geocell is widely used in road, railway, water conservancy, garden chemical industry and other fields, which can effectively provide the stability and durability of the project. At the same time reduce construction costs and maintenance costs.

Black HDPE Geocell Gravel Grid.jpg

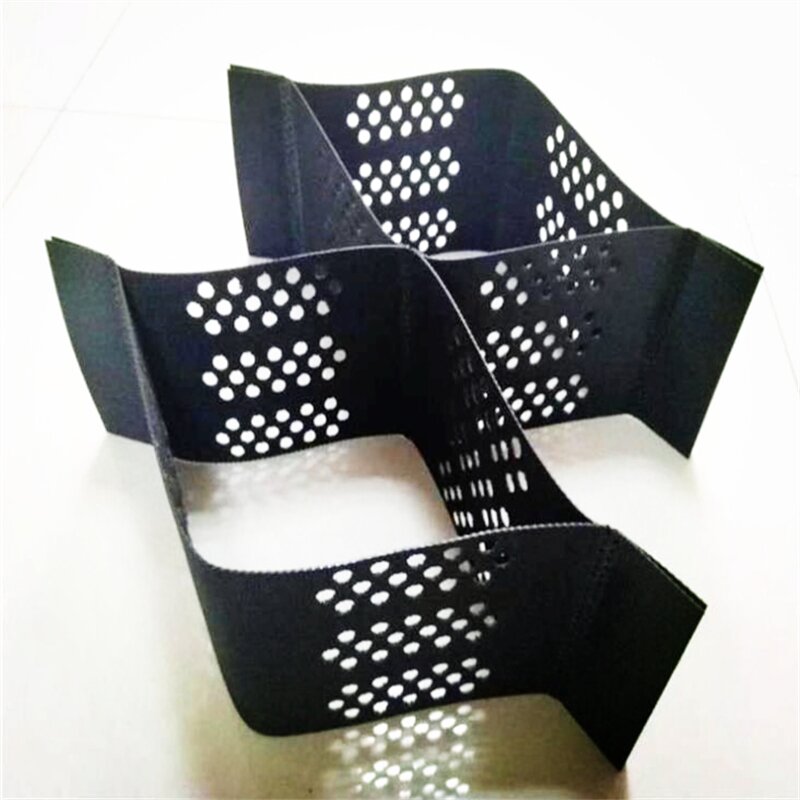

The feature of black HDPE geocell:

◆Geocell HDPE is a new type of geosynthetic material made of high density polyethylene (HDPE). It has the characteristics of light weight, high strength, corrosion resistance, aging resistance, good seepage resistance, etc., and is widely used in the field of civil engineering.

◆The geocell gravel grid is flexible, foldable and easy to transport ,which can be drawn into a network during construction.

◆The hdpe geocells have high side limit and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and disperse the load.

◆It can change the geocell height, welding distance and other geometric dimensions to meet different engineering needs.

◆Convenient connection and fast construction speed.

Black HDPE Geocell Gravel Grid.jpg

Technical parameters of hdpe geocell:

Product type	Height (mm)	Welding Distance(mm)	Thickness (mm)	Tensile Strength of Welding Points(N/cm)	Tensile Strength of Commenction of Cells(N/cm)	Tensile Strength of Yield of Each Sheet(Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Smooth and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Remaiks: This is a basic technical specification. All the above technical parameters can be reached according to customer’s requirement and other special standard can be carried out by agreement or contract.

Black HDPE Geocell Gravel Grid.jpeg

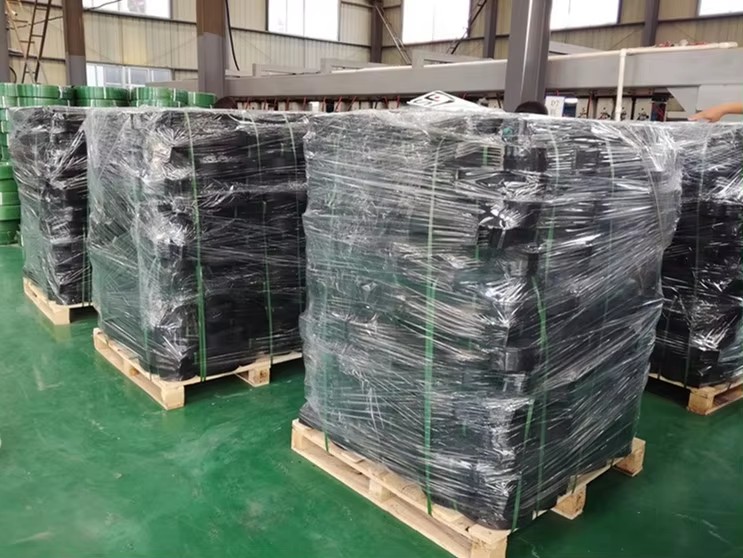

HDPE geocells Packaging:

The HDPE geocell is packed with pallet.In the packaging of the geocells,it is need to choose packaging materials that resist external pressure and wear resistance.

Black HDPE Geocell Gravel Grid.jpg

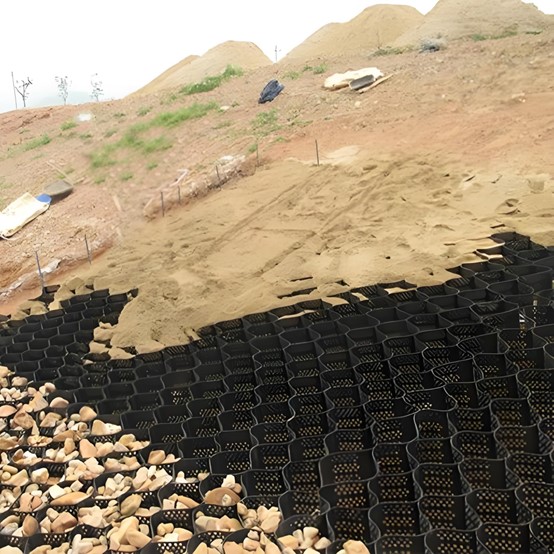

The application of HDPE geocell:

Geocell for road construction and highway construction,by laying geocell and filling soil particles, the bearing capacity of foundation is significantly improved, and the safe operation of expressway is ensured. In addition, geocels can enhance the carrying capacity and stability of roads, DAMS and other soil structures, reduce soil profile and subsidence risks, and protect land and water resources. Its three-dimensional grid design can effectively distribute the load, reduce the pressure of the soil, and prevent the soil from moving and sinking.Plastic hdpe geocells are often used for slope protection to prevent soil erosion.

Black HDPE Geocell Gravel Grid.jpg
