HDPE Geocell Gravel Grid For Protection Stabilized Soil
HDPE geocell gravel grid is independent closed unit.
The HDPE geocells can bear large loads and has good stability.
The geocells have higher lateral restrict and effectively prevent slope landslide and subgrade collapse.
The geocell is flexible and has a small transportation volume.
Convenient connection and fast construction speed.
Changing the geocell height, welding distance and other geometric dimensions can meet different engineering needs
Product Details

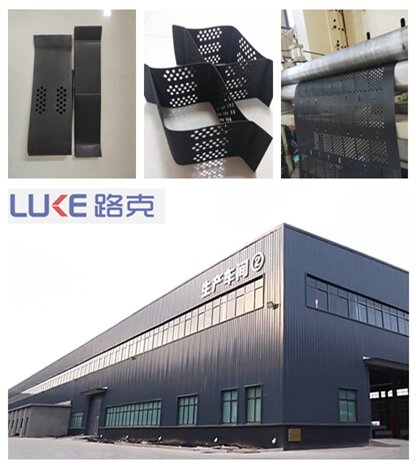

HDPE Geocell Gravel Grid For Protection Stabilized Soil

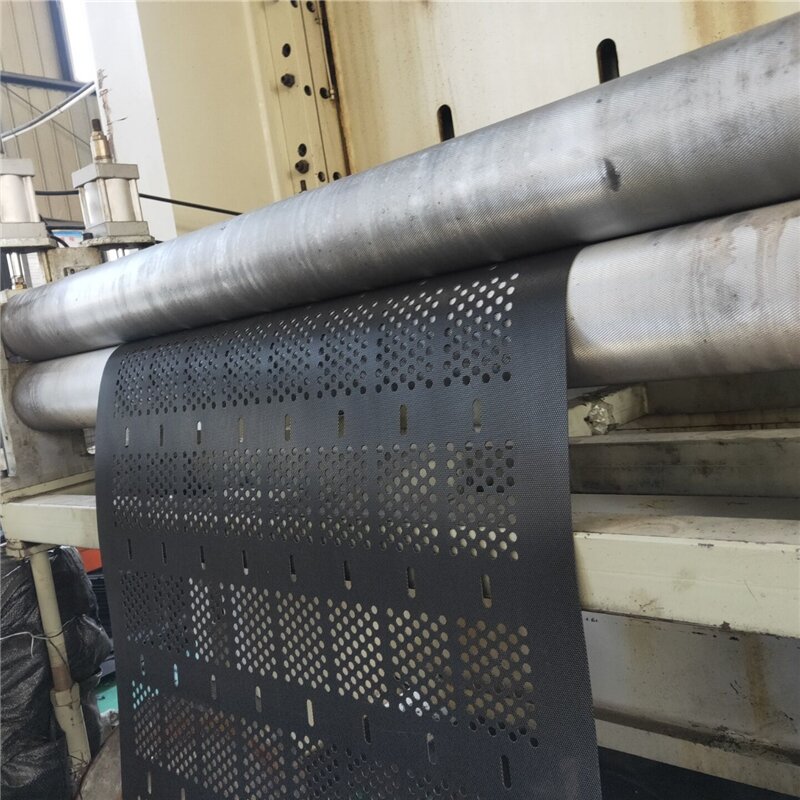

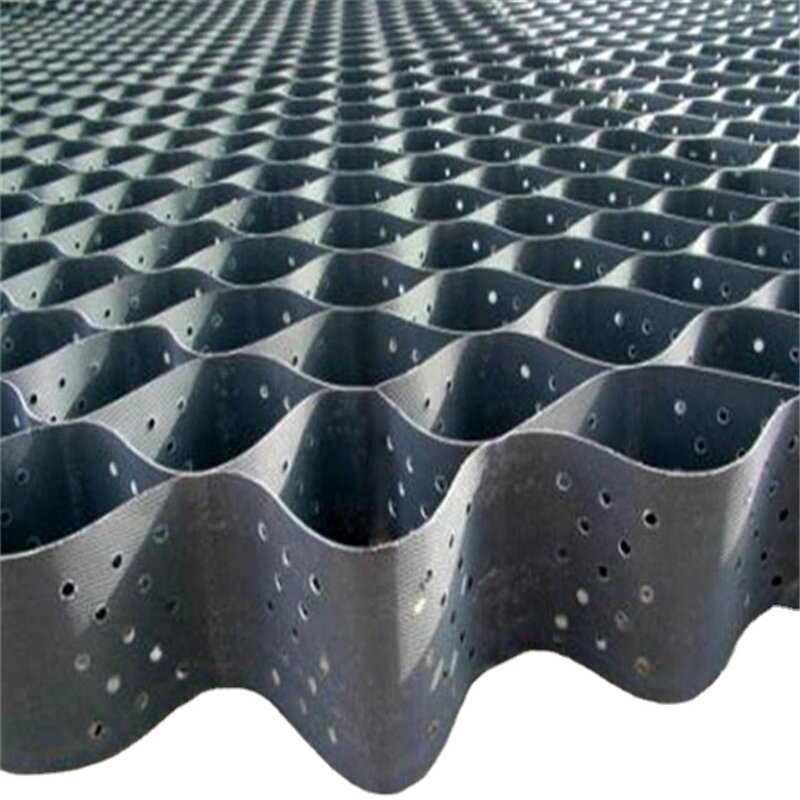

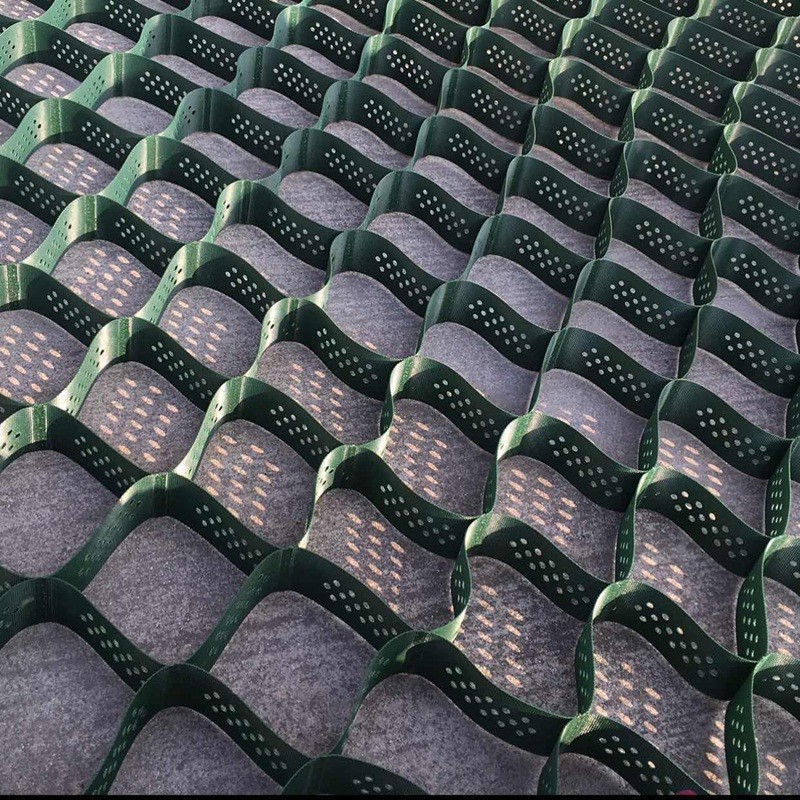

Geocell is a new type of building material widely used in roadbed, slope protection and other engineering projects. It has high compressive strength and strong bearing capacity. It is a three-dimensional grid chamber structure made of HDPE sheet welded by high strength ultrasonic. Stretchable, transport can be folded, construction can be drawn into a network, unfold to form a honeycomb three-dimensional grid.
The feature of HDPE geocell:

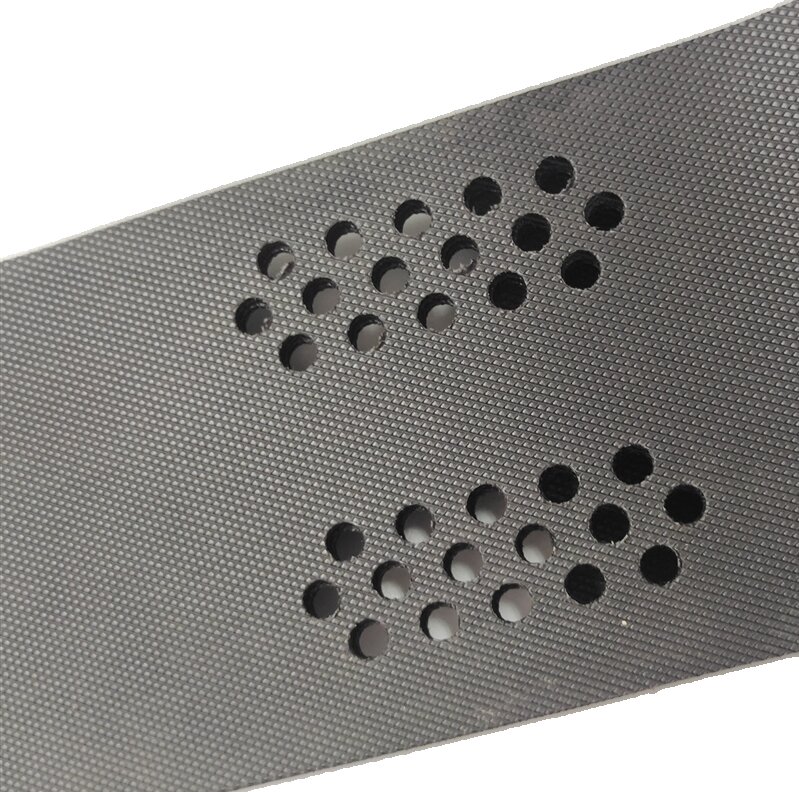

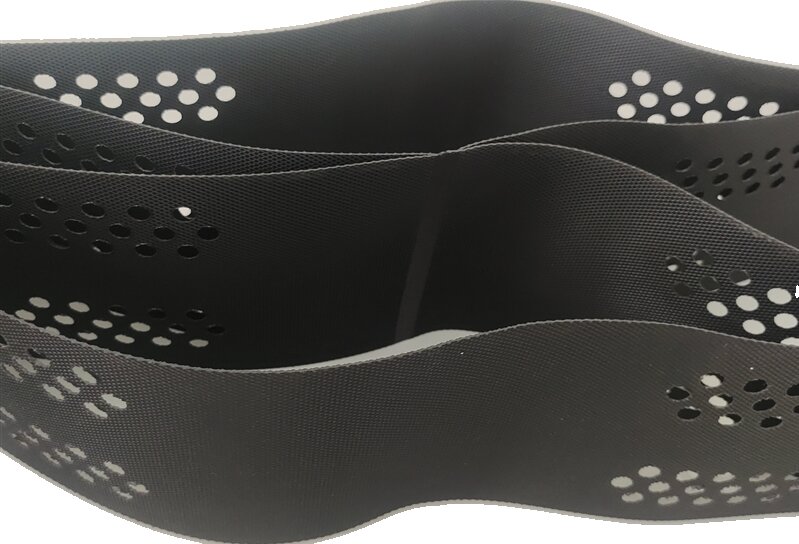

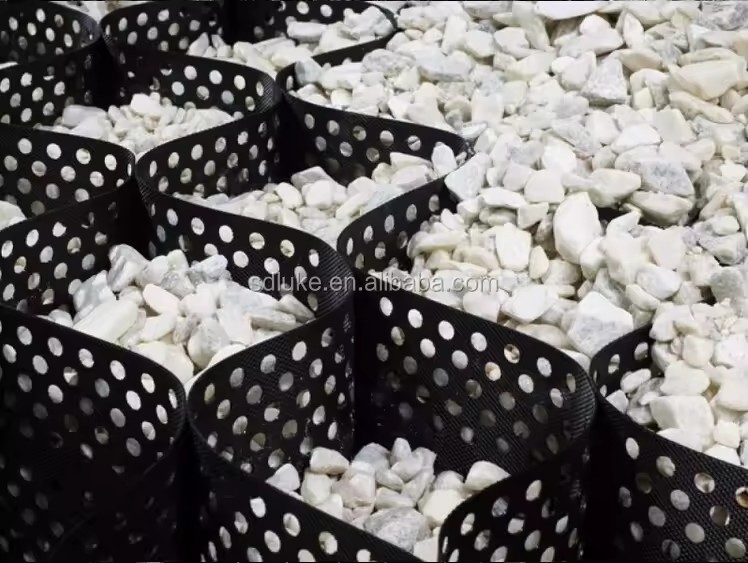

1.The plastic geocell is flexible, foldable and easy to transport ,which can be drawn into a network during construction.It is a HDPE gravel stabilizer geocell.Loose materials such as soil,gravel and concrete are filled to form a structure with strong lateral limits and high stiffness. HDPE Gravel Stabilizer Geocell
2.It is light and wear-resistant, chemical stability, light oxygen aging resistance, acid and alkali resistance, suitable for different soil and desert soil conditions.
3.It have high side limit and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and disperse the load.
4. It can change the geocell height, welding distance and other geometric dimensions to meet different engineering needs.
5. Convenient connection and fast construction speed.
Technical parameters of geocell:
Product type | Height (mm) | Welding Distance(mm) | Thickness (mm) | Tensile Strength of Welding Points(N/cm) | Tensile Strength of Commenction of Cells(N/cm) | Tensile Strength of Yield of Each Sheet(Mpa) |
Smooth and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.0~1.4 | ≥100 | ≥120 | ≥20 |
Smooth and Perforated | 50≤H≤250 | 330≤A≤1000 | 1.0~1.4 | ≥100 | ≥120 | ≥20 |
Textured and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.0~1.4 | ≥100 | ≥120 | ≥20 |
Textured and Perforated | 50≤H≤250 | 330≤A≤1000 | 1.0~1.4 | ≥100 | ≥120 | ≥20 |
Remaiks: This is a basic technical specification. All the above technical parameters can be reached according to customer’s requirement and other special standard can be carried out by agreement or contract. | ||||||

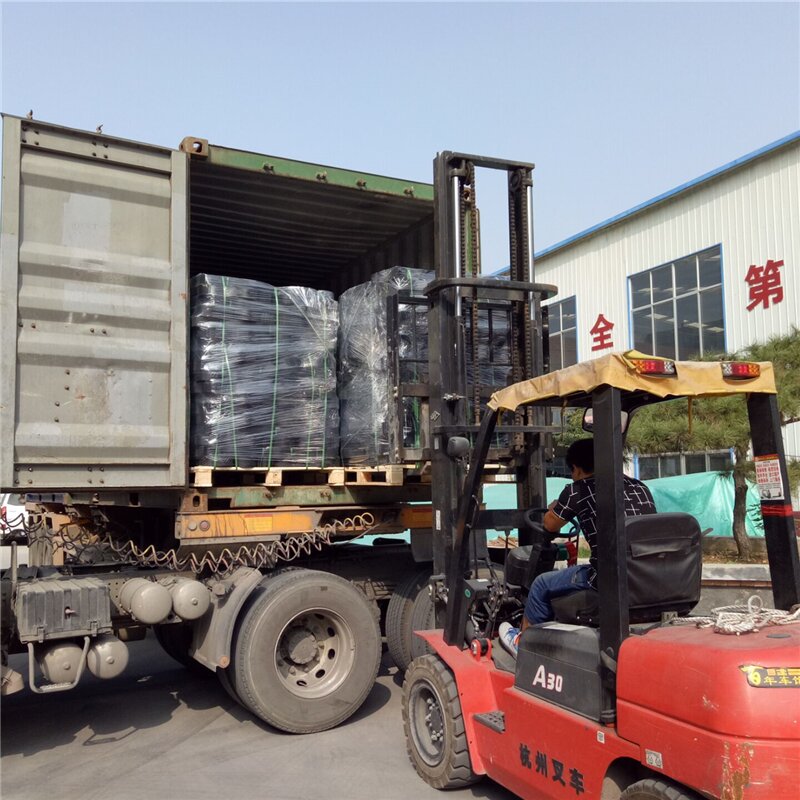

HDPE geocells Packaging:
The HDPE geocell is packed with pallet.In the packaging of the geocells,it is need to choose packaging materials that resist external pressure and wear resistance.
The application of HDPE geocell:

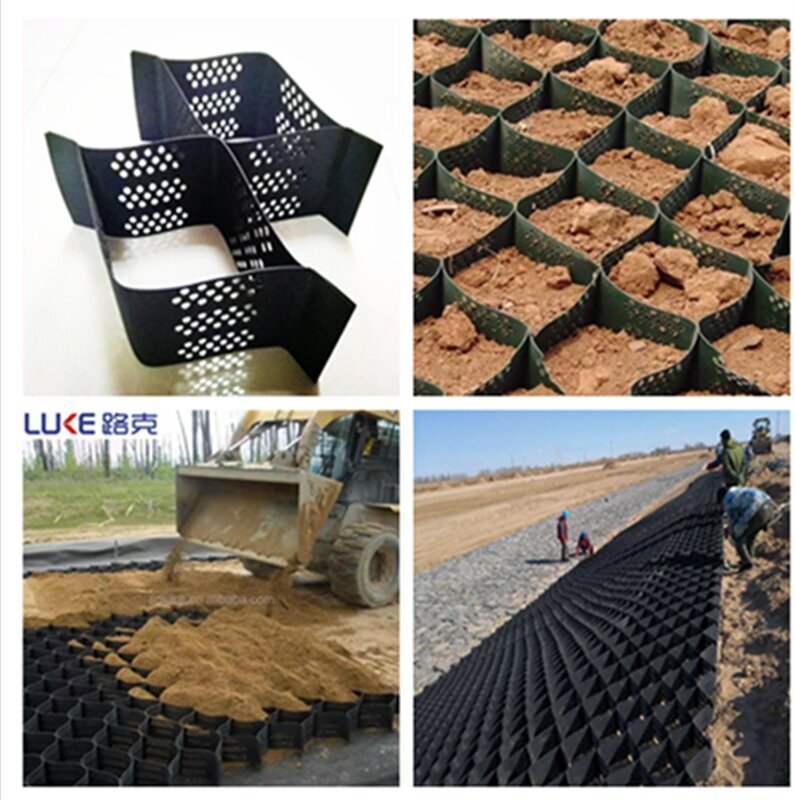

Geocell for road construction and highway construction,by laying geocell and filling soil particles, the bearing capacity of foundation is significantly improved, and the safe operation of expressway is ensured. In addition, geocels can enhance the carrying capacity and stability of roads, DAMS and other soil structures, reduce soil profile and subsidence risks, and protect land and water resources. Its three-dimensional grid design can effectively distribute the load, reduce the pressure of the soil, and prevent the soil from moving and sinking.
About our company:
Shandong LuKe Composite Co;Ltd.is professional company on production and sales geosynthetics for years,which is located at the foot of the beautiful Mountain Tai.We mainly produce geomembrane,geotextile,drain board,geogrid,geocell,3D geomat,drain mat,drainage net,grass paver ect.
Our company aim is :quality first,reputation first!
Professional equipment,high quality HDPE geocell,first-class service is your best choice,welcome to our company!
