HDPE Geocells 3D Cellular Confinecent System

The HDPE geocells 3D cellular confinement system can bear large loads and has good stability.

High-Density Polyethylene (HDPE) Geocell have higher lateral restrict and effectively prevent slope landslide and subgrade collapse.

The geocell is flexible and has a small transportation volume.Convenient connection and fast construction speed.

Changing the geocell height, welding distance and other geometric dimensions can meet different engineering needs

Contact Now

Product Details

HDPE geocells 3D Cellular Confinecent System

It is a kind of system based on honeycomb confinement technology and polymer material technology, which uses high-strength three-dimensional mesh formed by interconnected nests to restrain and stabilize soil. Through its unique honeycomb three-dimensional structure, it can significantly improve soil performance and solve the problem of soil stabilization and strengthening. This system consists of a reinforced HDPE sheet material through high-strength welding, usually using ultrasonic needle welding technology, to form a honeycomb like three-dimensional mesh cell structure. The geocell can effectively control erosion and insect erosion, and protect the soil from the damage of external factors. Therefore, 3D geocellular cell restriction system is widely used in soil reinforcement, pavement repair, slope protection engineering and other fields, is an ecological and economic revolutionary material.

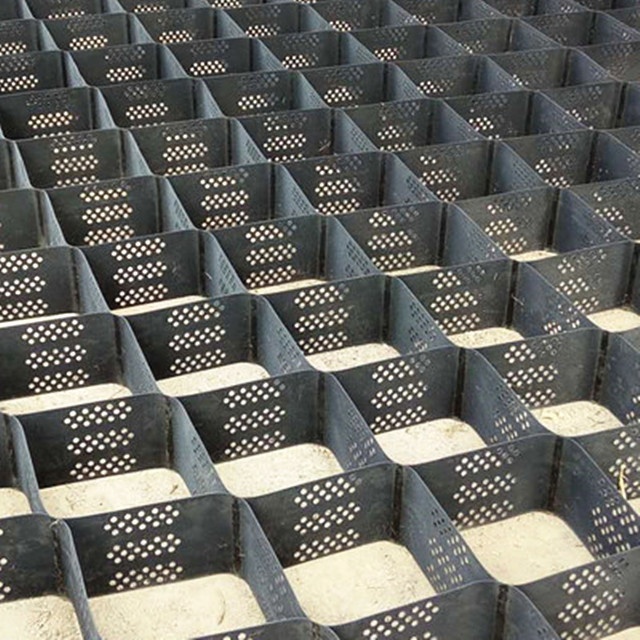

HDPE Geocells 3D Cellular Confinecent System.jpg

Technical parameters of the geocells:

Product type	Height(mm)	Welding Distance(mm)	Thickness(mm)	Tensile Strength of Welding Points(N/cm)	Tensile Strength of Commenction of Cells(N/cm)	Tensile Strength of Yield of Each Sheet(Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20

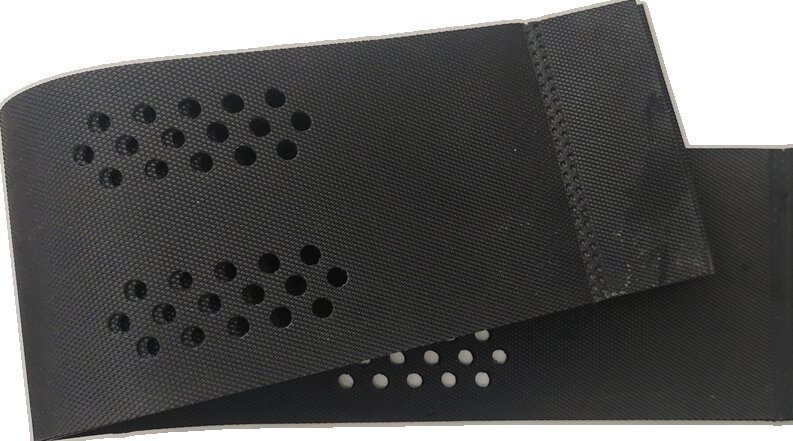

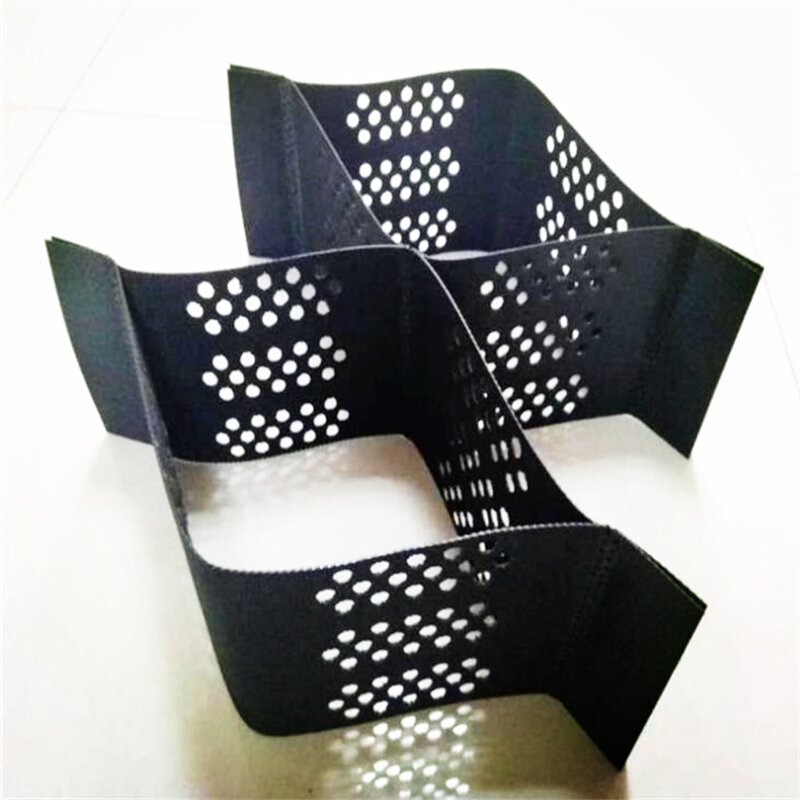

Smooth and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20

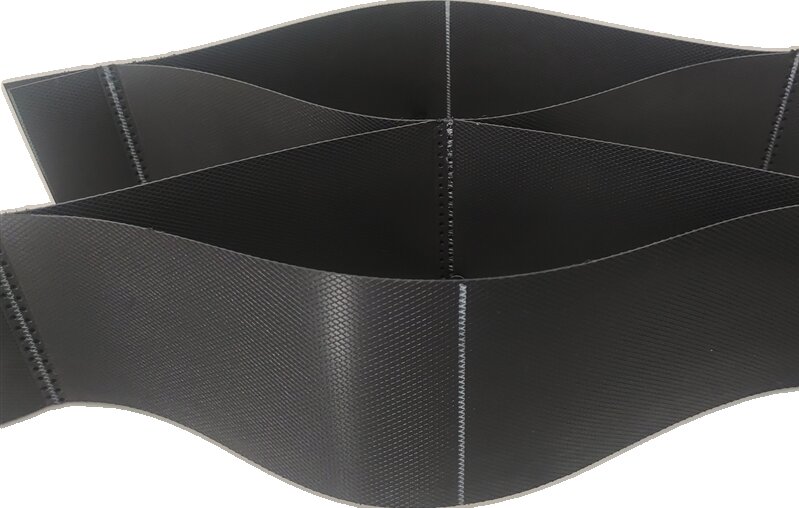

Textured and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Remaiks: This is a basic technical specification. All the above technical parameters can be reached according to customer’s requirement and other special standard can be carried out by agreement or contract.

HDPE Geocells 3D Cellular Confinecent System.jpg

The feature of HDPE Geocells:

★Structural stability:

★Pervious performance:

★Flexibility: The geogrid has a certain degree of flexibility, which can adapt to terrain changes and load changes, and reduce surface settlement and cracking.

★Environmental performance:

★Simple construction:

The application of geocells can effectively protect soil, enhance the stability of engineering structures, and improve soil and water conservation and environmental quality.

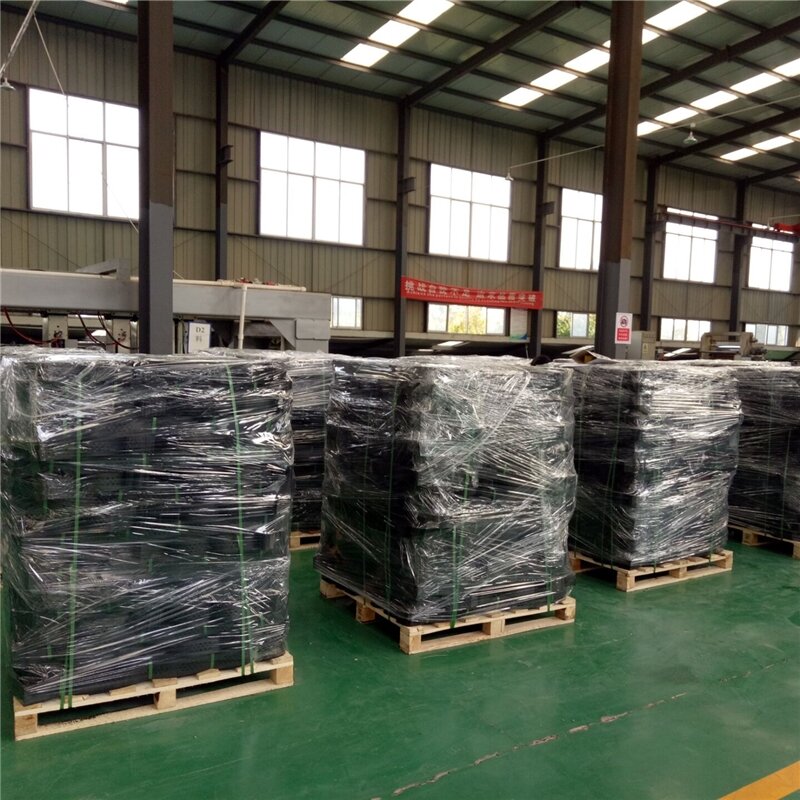

HDPE Geocells 3D Cellular Confinecent System.jpeg

Application of geocells in engineering:

1.Used to stabilize road/railway roadbed.

2. Levee for bearing load/retaining wall for bearing load.

3. Used for shallow water river treatment.

4. Used to support pipelines and sewers.

5. Used to prevent landslides and bearing gravity of the composite retaining wall.

6. used for independent wall/pier/levee, etc.

7.The use of geocell ground stabilization grid when encountering soft foundations on highways can greatly reduce the intensity of construction labor and reduce the thickness of subgrade.

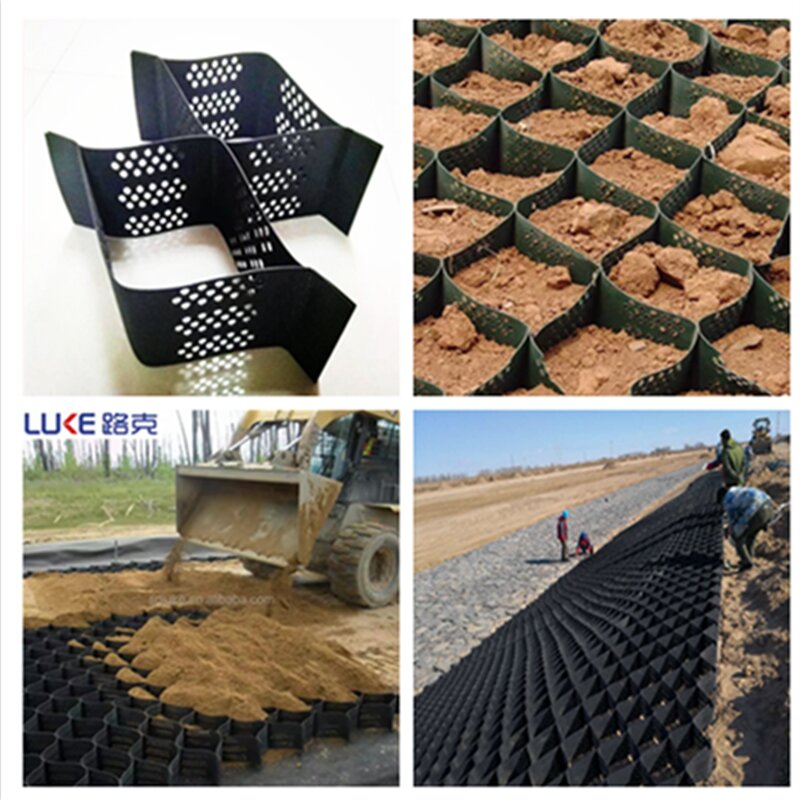

HDPE Geocells 3D Cellular Confinecent System.jpg
