HDPE Geocell Slope Protection

The HDPE geocell can bear large loads and has good stability.

The geocells have higher lateral restrict and effectively prevent slope landslide and subgrade collapse.

The geocell is flexible and has a small transport volume.

Convenient connection and fast construction speed.

Changing the geocell height, welding distance and other geometric dimensions can meet different engineering needs

Contact Now

Product Details

HDPE geocell Slope Protection

The HDPE Geocell is a new type of slope protection material, which has been widely used in slope protection abroad. It is a three-dimensional mesh chamber formed by high-strength welding of strengthened Hdpe sheet material, with high overall strength, light material, wear resistance, chemical stability, acid and alkali resistance. The expanded geocell can be filled with planting soil and seeding grass seeds, which can make the slope fully green, and the hdpe Geocells with holes can also increase the drainage performance of the slope.

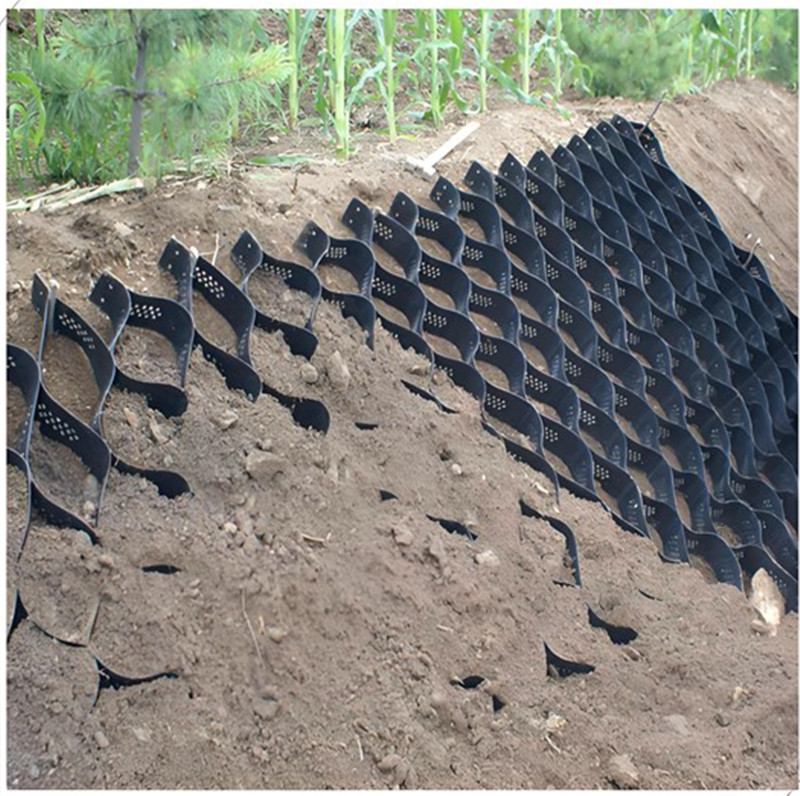

HDPE Geocell Slope Protetion.jpg

The hdpe geocells feature:

◆Low cost Hdpe geocell easy maintenance.

◆The geocell gravel grid is flexible, foldable and easy to transport ,which can be drawn into a network during construction.

◆The hdpe geocells have high side limit and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and disperse the load.

◆It can change the geocell height, welding distance and other geometric dimensions to meet different engineering needs.

◆Convenient connection and fast construction speed.

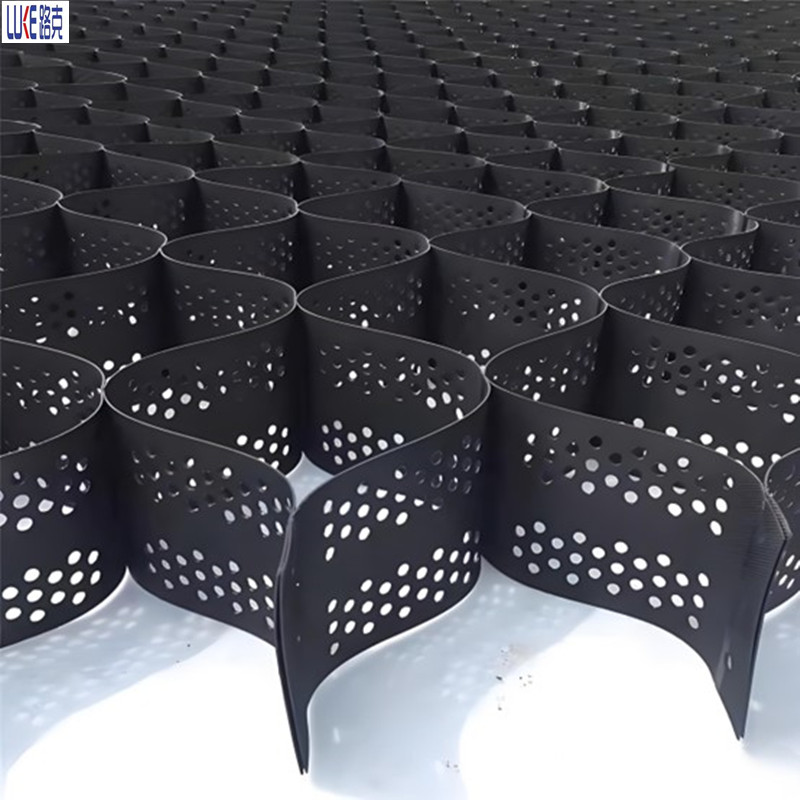

The HDPE Geocell For Slope Protection.jpg

Technical parameters of hdpe geocell:

Product type	Height (mm)	Welding Distance(mm)	Thickness (mm)	Tensile Strength of Welding Points(N/cm)	Tensile Strength of Commenction of Cells(N/cm)	Tensile Strength of Yield of Each Sheet(Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Smooth and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Remaiks: This is a basic technical specification. All the above technical parameters can be reached according to customer’s requirement and other special standard can be carried out by agreement or contract.

HDPE Geocell Slope Protection.jpg

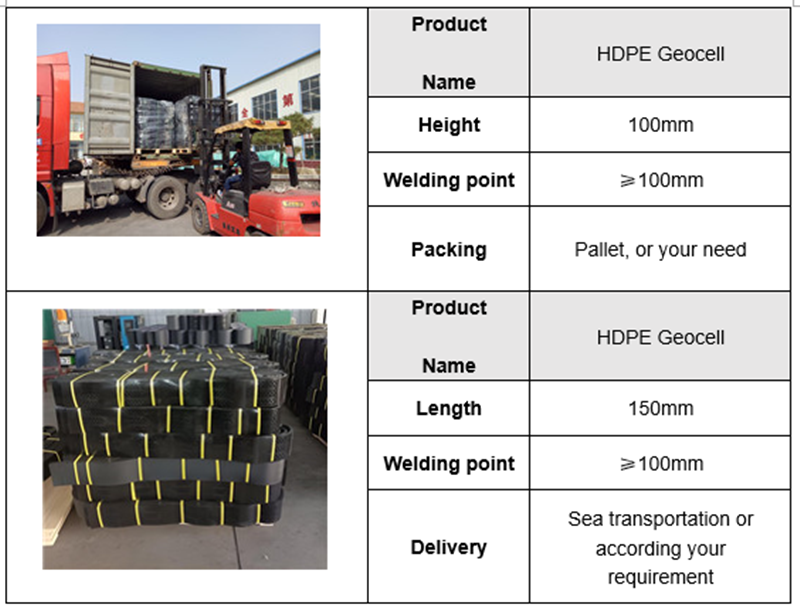

HDPE geocells Packaging:

The HDPE geocell is packed with pallet.In the packaging of the geocells,it is need to choose packaging materials that resist external pressure and wear resistance.

HDPE Geocell Slope Protection.png

About our company:

Shandong Luke Composite Co.,Ltd is professional company on production and sales geosynthetics for years.We mainly produce geomembrane,geotextile,drain board,geogrid,geocell,3D geomat,drain mat,drainage net,grass paver ect.

Our company aim is :quality first,reputation first!

Professional equipment,high quality HDPE geocell,first-class service is your best choice,welcome to our company!

HDPE Geocell Slope Protection.jpg

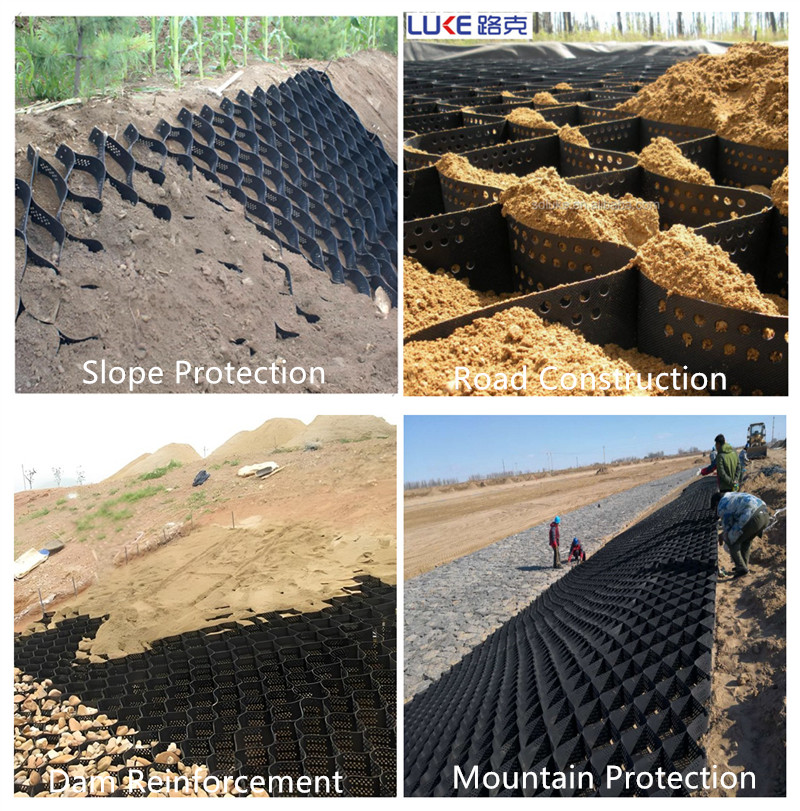

The application of strength HDPE geocell:

1、River revetment: the geocell can effectively prevent the river from scouring the bank and protect the ecological environment of the river.

2、Mountain protection.

3、Dam reinforcement: geocell can effectively strengthen the stability and safety of the dam.

4、Highway tunnel support: Geocell can effectively support the structure of highway tunnel and improve its stability and development.

5、Gravel foundation.

6、Retaining wall.

HDPE Geocell Slope Protection.jpg

After-sales service:

Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to HDPE geocell in a timely manner. Thank you for your love of our products.

HDPE Geocell Slope Protection.jpg
