Plastic Honeycomb Geocell Gravel Stabilizers

1)  Flexible to fold during the transport and installation on construction site

1)  Higher lateral restrict and prevent slippery

3)Enhance the bearing capacity of roadbed and scattered loads


  Contact Now
Product Details

Product Details

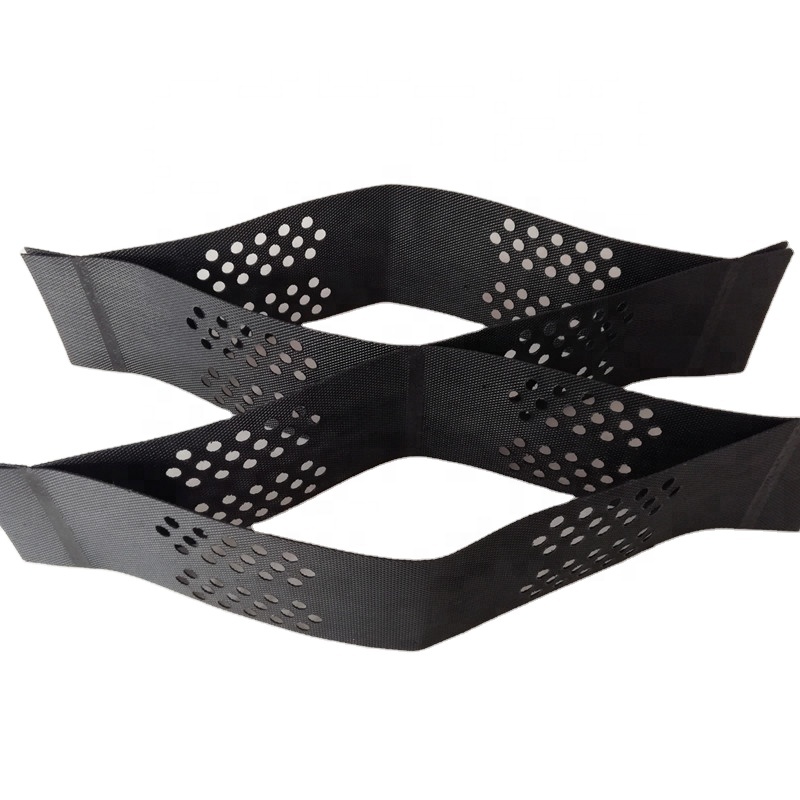

HDPE geocell is made of a new type of high strength geosynthetic, which is popular with both domestic and abroad, in accordance with GB/T 19274-2003 implementation of the standards, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation which is easily folding and convenient for transportation.

When it is be in construction,the HDPE Geocell can be pull into a network and launched into a three-dimensional honeycomb grid.

As it filled in sol,macadam,concrete or other granular materials,constituted to be a construction which has strong sidewise restraint and high rate of stiffness.


Black Geocell.jpg


Parameter

Product TypeHeight (mm)Welding Distance (mm)Thickness (mm)Tensile Strength of Welding Points (N/cm)Tensile Strength of Commection of Cells (N/cm)Tensile Strength of Yield of Each Sheet (Mpa)
Smooth and Not Perforated50≤H≤250330≤A≤ 10001.0-1.421002120220
Smooth and Perforated550≤H≤250330≤A≤ 10001.0-1.421002120220
Textured and Not Perforated50≤H≤250330≤A≤ 10001.0-1.421002120220
Textured and Perforated50≤H≤250330≤A≤ 10001.0-1.421002120220
Remarks: This is a basic technical specification. All the above technical parameters can be reached according to customer's requirement and other special standard can be carried out by agreement or contract.


Feature

1) It is flexible to fold during the transport and installation on construction site.

The geocell nets will be filled with soils, granular, cements or other on site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.

2) Material is qualitative light, wear resistance, chemical stability, light oxygen aging resistance, resistance to acid and alkali.

Suitable for different soil and soil conditions, such as desert.

3) Higher lateral restrict and prevent slippery, prevent deformation, effectively enhance the bearing capacity of subgrade and scattered loads.

4) Change the large room height, welding such as geometrical size can meet different engineering needs retractile, transport of small size.


Black Geocell.jpg


Application

1)Load support: Solve unacceptable road,parking, and yard surface problems.

2)Slope protection: Create a stable environment for long-term sustainability of embankment material.

3)Channel protection:Ensure stability and protection of channels exposed to all types of erosive conditions.

4)Vegetated retaining walls: Includes steepened slopes, retaining walls, gravity walls and so on.

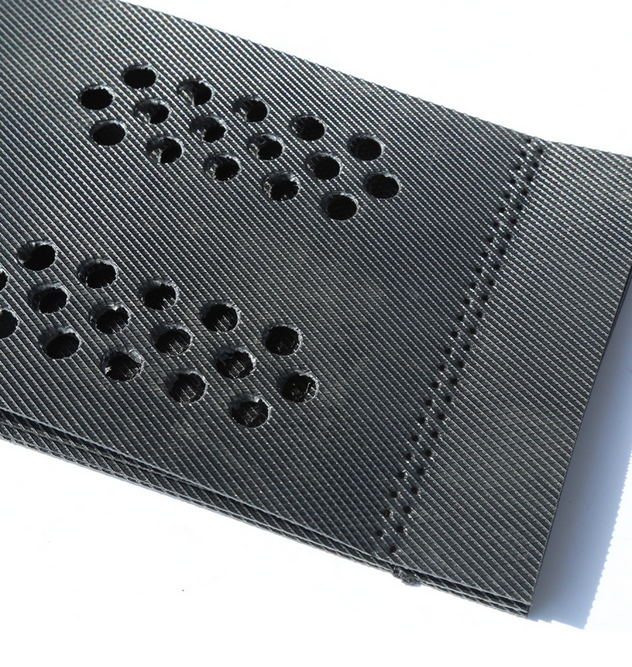

Black Geocell。png
