Three Dimensional Structure Honeycomb HDPE Geocell

Light weight material, wear-resistant.

3D HDPE geocell is flexible and easy to transport and stack.

Three dimensional structure slope protection HDPE geocell is resistant to light, aging, acid and alkali for different soil conditions.

The HDPE geocell can prevent slip, prevent deformation.

It can enhance the bearing capacity of the roadbed and the effect of loose load.


  Contact Now
Product Details

Three Dimensional Structure Honeycomb HDPE Geocell

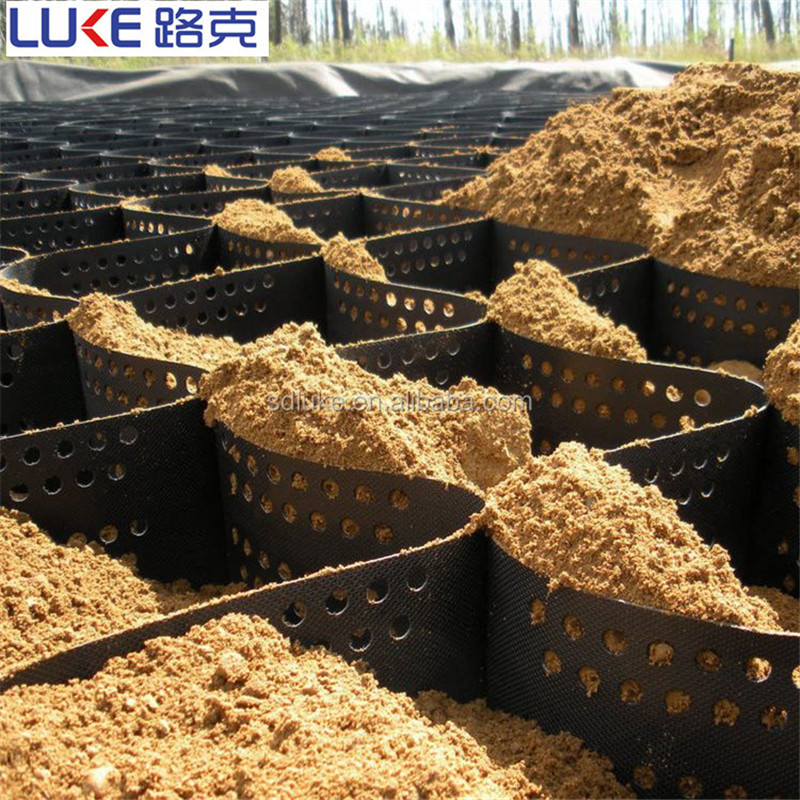

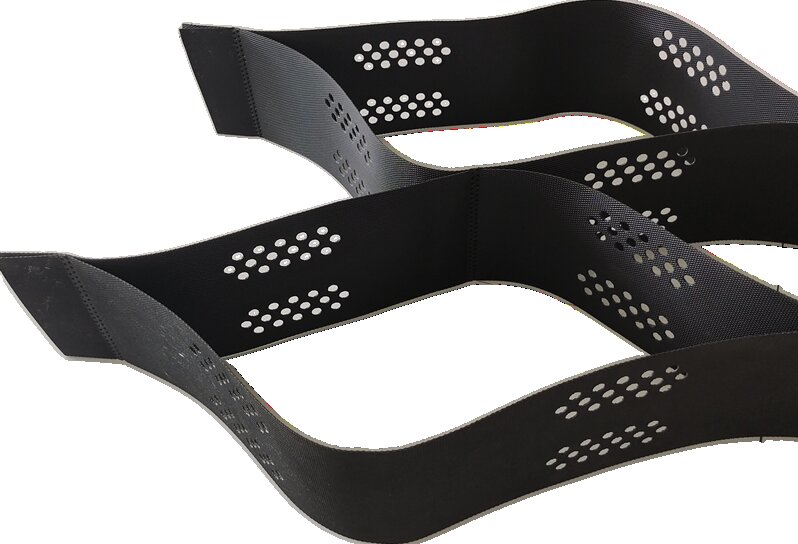

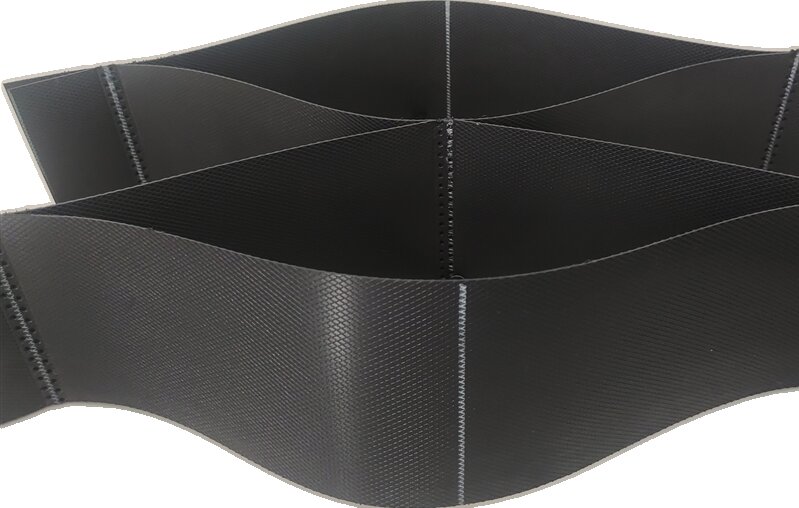

3D HDPE Geocell is a new type of high strength geosynthetic material. It is also called geocell gravel grid.Three-dimensional grid cell structure formed by high intensity ultrasonic welding of high density polyethylene sheet.Its principle is to stretch into a network and fill loose materials such as soil, gravel and concrete to form a structure with high lateral limitation and anti-slip function to effectively enhance the bearing capacity of the roadbed and disperse the load to stabilize the roadbed of roads and railways.


Three Dimensional Structure Honeycomb HDPE Geocell.jpeg

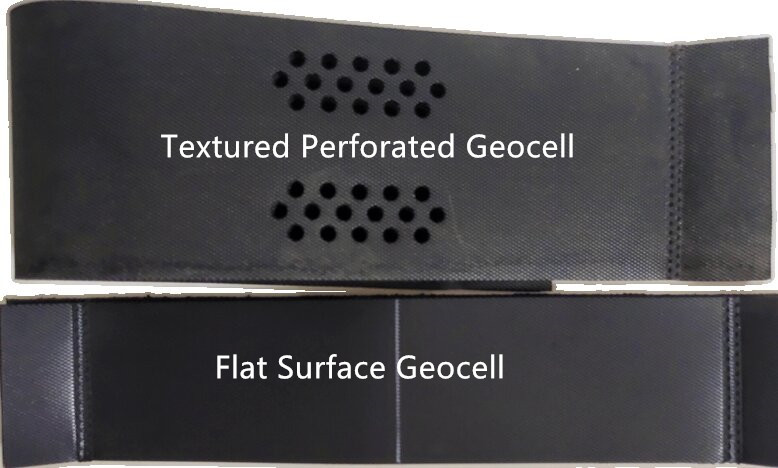

Technical parameters of HDPE geocells:

Product type

Height(mm)

Welding Distance(mm)

Thickness(mm)

Tensile Strength of Welding Points(N/cm)

Tensile Strength of Commenction of Cells(N/cm)

Tensile Strength of Yield of Each Sheet(Mpa)

Smooth and Not Perforated

50≤H≤250

330≤A≤1000

1.0~1.4

≥100

≥120

≥20

Smooth and Perforated

50≤H≤250

330≤A≤1000

1.0~1.4

≥100

≥120

≥20

Textured and Not Perforated

50≤H≤250

330≤A≤1000

1.0~1.4

≥100

≥120

≥20

Textured and Perforated

50≤H≤250

330≤A≤1000

1.0~1.4

≥100

≥120

≥20

Remarks:

This   is a basic technical specification.

All   the above technical parameters can be reached according to customer’s   requirement and other special standard can be carried out by agreement or   contract.



Three Dimensional Structure Honeycomb HDPE Geocell.jpg


The function of geocell gravel grid(HDPE geocell):

★The height and welding size of the geocell gravel grid can meet different engineering needs

★It has high strength: The structure of the geocell is very strong and can withstand the challenges of high loads and long-term use.

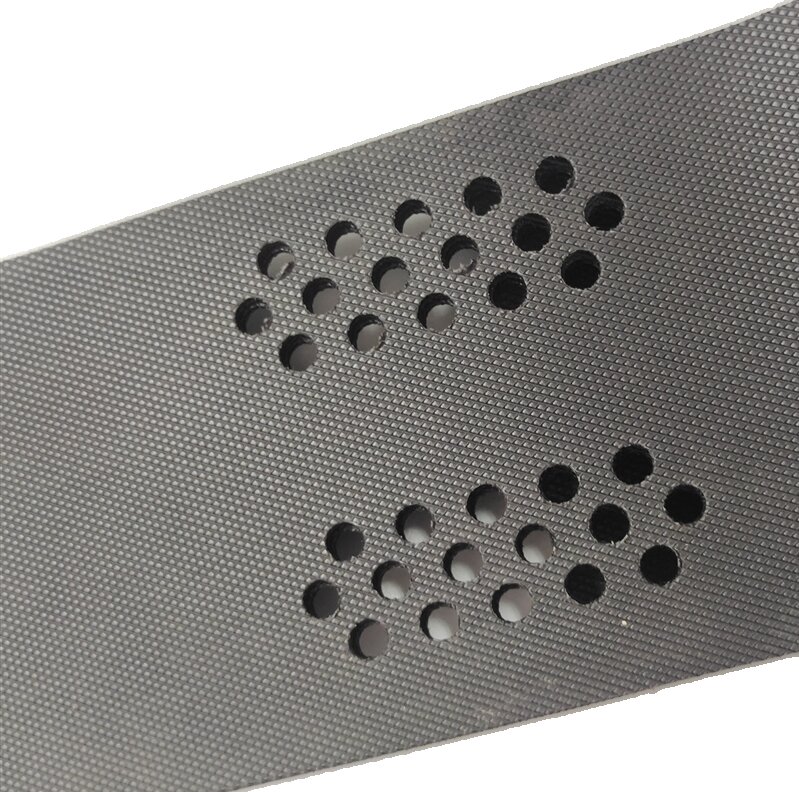

★Water permeability: The holes on the surface of the geogrid can allow water to pass through, and the drainage channel is formed inside it to ensure the normal discharge of groundwater and avoid water accumulation.

★Corrosion resistance: The high-density polyethylene, polypropylene and other materials used in the geocell are not easy to be eroded by chemicals, so they are very durable.

★Light material, resistant to wear, stable in chemical properties, anti-aging, resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.

★High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance the supporting ability and scattered load function of roadbed.


Three Dimensional Structure Honeycomb HDPE Geocell.jpg

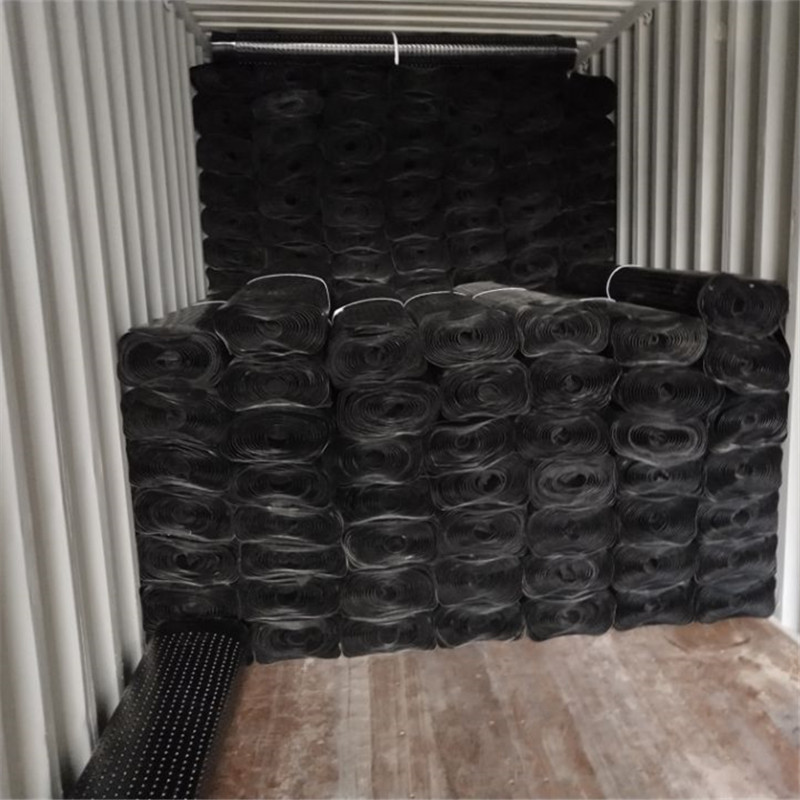

Packaging of honeycomb geocells HDPE gravel grid:

In the packaging of the geocells, it is need to choose packaging materials that can resist external pressure and wear resistance.


Three Dimensional Structure Honeycomb HDPE Geocell.jpeg


Application of  HDPE geocell gravel grid:

◆ River revetment: the geocell can effectively prevent the river from scouring the bank and protect the ecological environment of the river.

◆ Mountain protection: honeycomb HDPE geocell grid can effectively prevent landslides and debris flow erosion and other natural disasters, to ensure the safety of people's lives and property.

◆ Dam reinforcement: geocell can effectively strengthen the stability and safety of the dam.

◆ Highway tunnel support: Geocell can effectively support the structure of highway tunnel and improve its stability and development.


Three Dimensional Structure Honeycomb HDPE Geocell.jpg


About  our company:

Shandong Luke Composite Co;Ltd.is professional company on production and sales geosynthetics for years,which is located at the foot of the beautiful Mountain Tai.Our mainly products are geomembrane,geotextile,drain board,geogrid,geocell,3D geomat,drain mat,drainage net,grass paver ect.

Our company aim is :quality first,reputation first!

Professional equipment,high quality HDPE geocell,first-class service is your best choice,welcome to our company!


Three Dimensional Structure Honeycomb HDPE Geocell.jpg


Our after-sales service:

Our company provides a one-stop service, and our staff provides 24/7 online support to solve any technical problems related to honeycomb geocell HDPE gravel grid in a timely manner. Thank you for your love of our products.Please contact us for samples.



Three Dimensional Structure Honeycomb HDPE Geocell.jpg
