High Tensile Strength
Low Elongation
Excellent soil stabilization
Good sub-base reinforcement
Anti-corrosion
Easy to install
Product Details

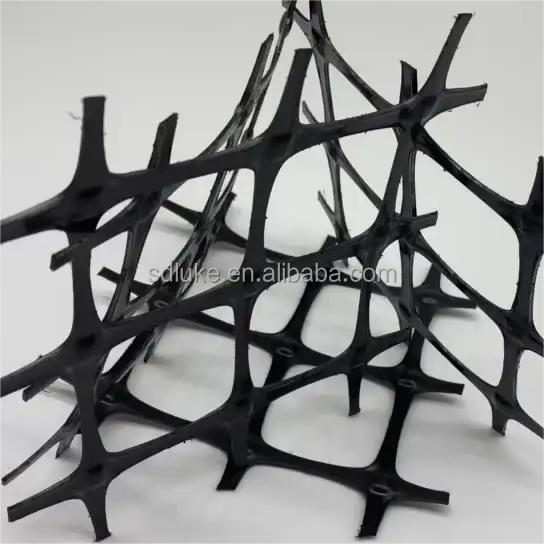

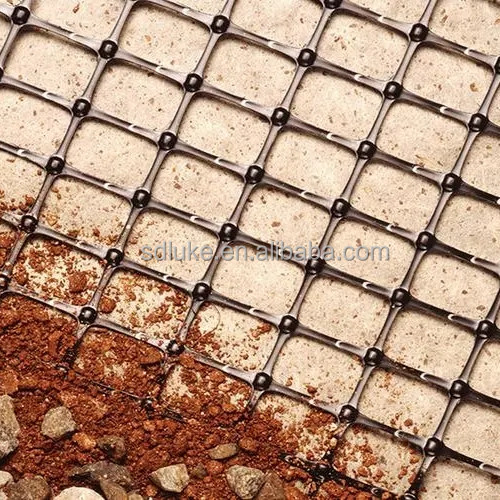

Plastic geogrid includes biaxial geogrid and uniaxial geogrid in keeping with its structure.
Biaxial geogrid is product of polyethylene or excessive density polyethylene as the principle uncooked material thru the tactics of warm-melt extrusion, vertical and horizontal stretching to shape a excessive power reinforced square mesh shape.
Uniaxial geogrid is made of high molecular polymer after extruded and laminated and punched into regular mesh before longitudinal stretching.this system makes excessive molecule in direct line country in rectangular oval net shape with uniform distribution and excessive node depth.
Parameter
Properties Item | Tensile Strength kN/m | Elongation % | Tensile Strength@2% | Tensile Strength@2% | ||||
Longitudinal | Tranaveres | Longitudinal | Tranaveres | Longitudinal | Tranaveres | Longitudinal | Tranaveres | |
LKSG 15-15 | 15 | 15 | 13 | 16 | 5 | 7 | 8 | 10 |
LKSG 20-20 | 20 | 20 | 13 | 16 | 8 | 10 | 10 | 13 |
LKSG 25-25 | 25 | 25 | 13 | 16 | 8 | 11 | 11 | 13 |
LKSG 30-30 | 30 | 30 | 13 | 16 | 11 | 13 | 15 | 15 |
LKSG 35-35 | 35 | 35 | 13 | 16 | 12 | 14 | 15 | 18 |
LKSG 40-40 | 40 | 40 | 13 | 16 | 13 | 15 | 16 | 20 |
Feature
· Excellent soil stabilization
· Good sub-base reinforcement
· Heavy duty foundation support
· High strength
· Anti-corrosion
· High junction efficiency
Application
1) Soft foundation reinforcing for highway, railway, airport,large car park,dock and so on.
2) Slope protecting projects and culvert reinforcement.
3) Landfill sites and also used in cultivation.
