HDPE geomembrane has excellent impermeability.
Geomembranes have good physical and mechanic performance.
Geomembrane has high tearing resistance, strong deformation adaptability
Puncture-resisting and have aging resisting, ultra-violet radiation.
Anti-seepage geomembrane can resistant acid and alkali and corrosion resistance.
It has a long life and is easy to install.

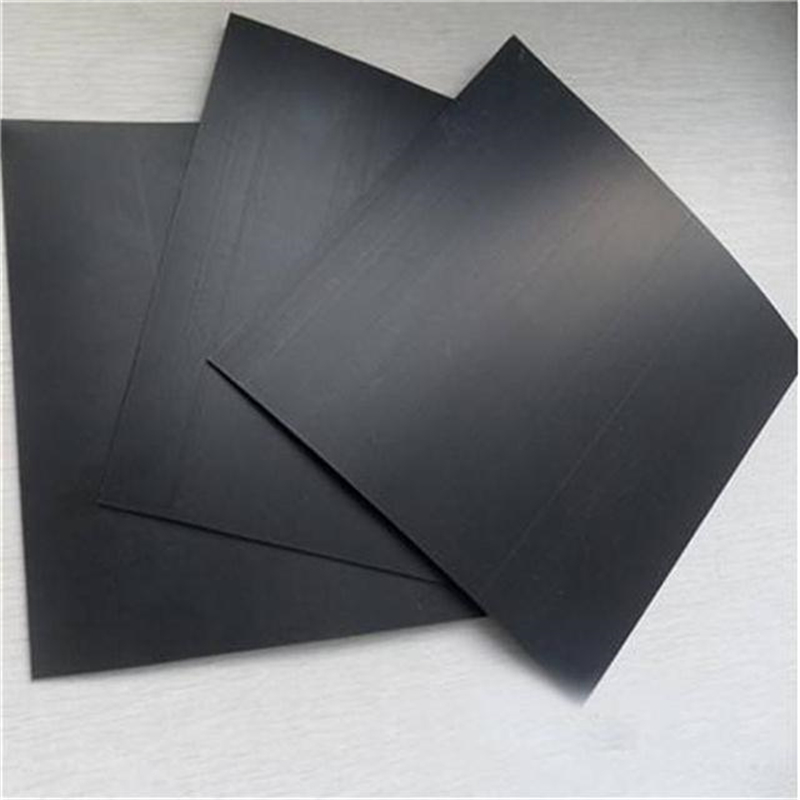

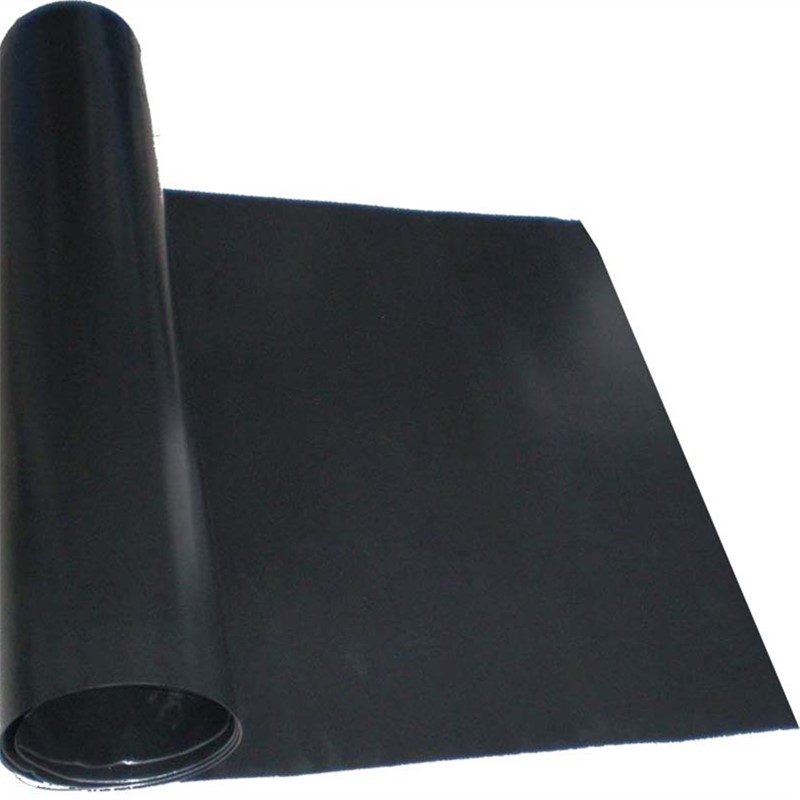

0.75mm To 3.0mm Anti-seepage HDPE Geomembrane
Geomembrane also known as impermeable geomembrane,polyethylene geomembrane,etc.It is a kind of polymer material with excellent impermeable properties.It made from high grade polyethylene raw material,adding carbon black,antioxidant,anti-aging and UV resistance component.It adopted the first class automatic production equipment and three-layer pressing technology.It is widely used in water conservancy, construction, environmental protection and other fields.
The main functions of geomembrane:
The main functions of geomembrane include seepage prevention, reinforcement of dykes, isolation of soil, enhancement of road surface, and prevention of building subsidence. These functions of geomembrane make it play an important role in civil engineering.
Technical parameters of HDPE geomembrane:
Test Properties | unit | Test Method | Test Frequency | LK MS75 | LK MS10 | LK MS15 | LK MS20 | LK MS30 | |
Mechanical Properties | Thickness | mm | D5199 | Per roll | 0.75 | 1.00 | 1.50 | 2.00 | 3.00 |
Density | g/cc | D1505/D792 | 90,000kg | 0.94 | |||||
Tensile properties |
D6693 Type IV |
9,000kg | |||||||
Yield strength | KN/m | 11 | 15 | 22 | 29 | 44 | |||
Break strength | KN/m | 20 | 27 | 40 | 53 | 80 | |||
Yield elongation | % | 12 | 12 | 12 | 12 | 12 | |||
Break elongation | % | 700 | 700 | 700 | 700 | 700 | |||
Tear Resistance | N | D1004 | 20,000kg | 93 | 125 | 187 | 249 | 374 | |
Puncture resistance | N | D4883 | 20,000kg | 240 | 320 | 480 | 640 | 960 | |
Stress crack Resistance | Hr. | D5397 | Per GRI GM-10 | 300hr | |||||
Carbon Black Content | % | D4218 | 9,000kg | 2.0-3.0% | |||||
Reference Properties | Oxidative Induction Time | Min | |||||||
Standard OIT | D3895 | 90,000kg | 100min | ||||||
High Pressure OIT | D5885 | 400min | |||||||
Oven Aging at 85℃(retained after 90 days) | % | D5712 | Per each formulation | 55% | |||||
(a)standard OIT | D3895 | ||||||||
(b)High Pressure OIT | D5885 | ||||||||
UV Resistance High Pressure OIT Rerained after1600h | % | D5885 | Per each formulation | 50% | |||||
Roll Size | Roll width | m | 7 | 7 | 7 | 7 | 7 | ||
Roll Length | m | 280 | 210 | 140 | 105 | 70 | |||
Size Stability | % | 2% |

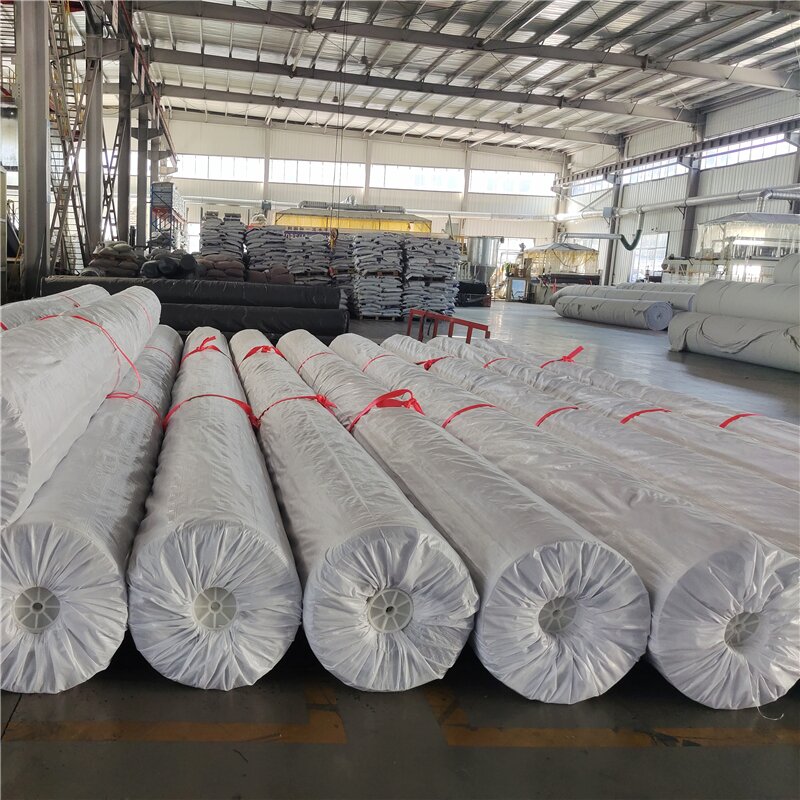

The packaging of geomembrane:
HDPE geomembrane roll is packed by woven bag or according to you requirements.

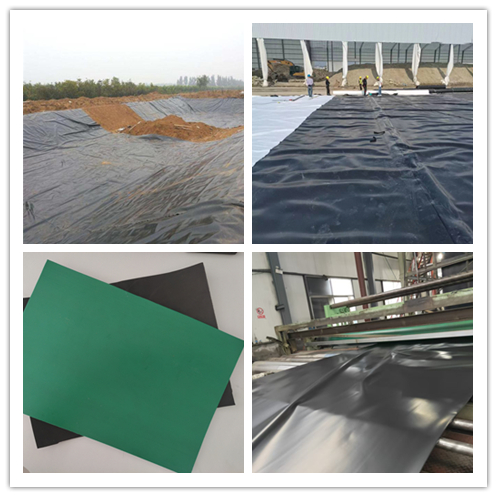

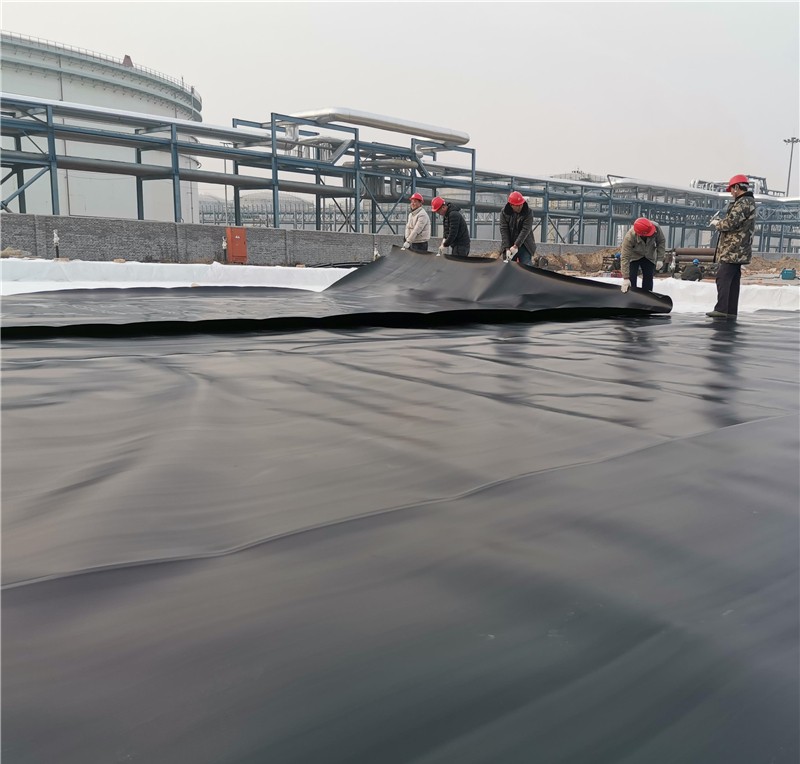

Application of HDPE Polyethylene Geomembrane:
1、The HDPE geomembrane is often used in hydraulic engineering to prevent seepage, waterproof, anti-impact and other functions.
2、In environmental protection engineering, geomembrane is widely used in sewage treatment, landfill and other projects, which can effectively prevent pollution and leakage.
3、Construction engineering: In construction engineering, geomembrane is widely used in roofs, basements, parking lots and other parts that need to be waterproof and moisture-proof, which can improve the waterproof performance and service life of buildings
4.、Other fields: It can also be used for waterproof, moisture-proof and other traffic facilities such as roads, railways, Bridges, etc., to provide efficiency and safety of traffic engineering.

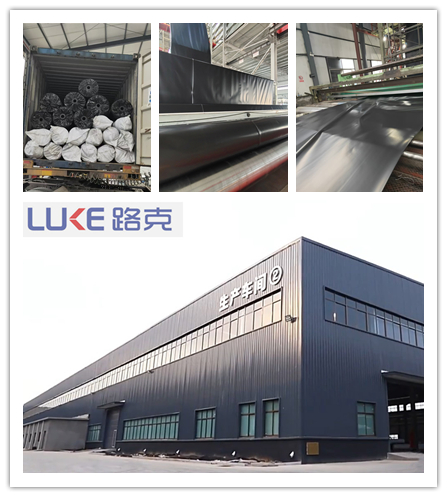

About our company:
