Geomembrane HDPE has good physical and mechanic performance.
HDPE geomembrane with geotexile as strengthenning material.
Geomembrane HDPE has excellent tensile strength and UV resistance.
It has strong corrosion resistance.
It can aging resistance,cold resistance,heat resistance,moisture resistance and other properties.
Geomembrane is widely used in water conservancy projects, environmental protection projects and other projects
HDPE Geomembranes for landfill have a strong ability to prevent puncture.

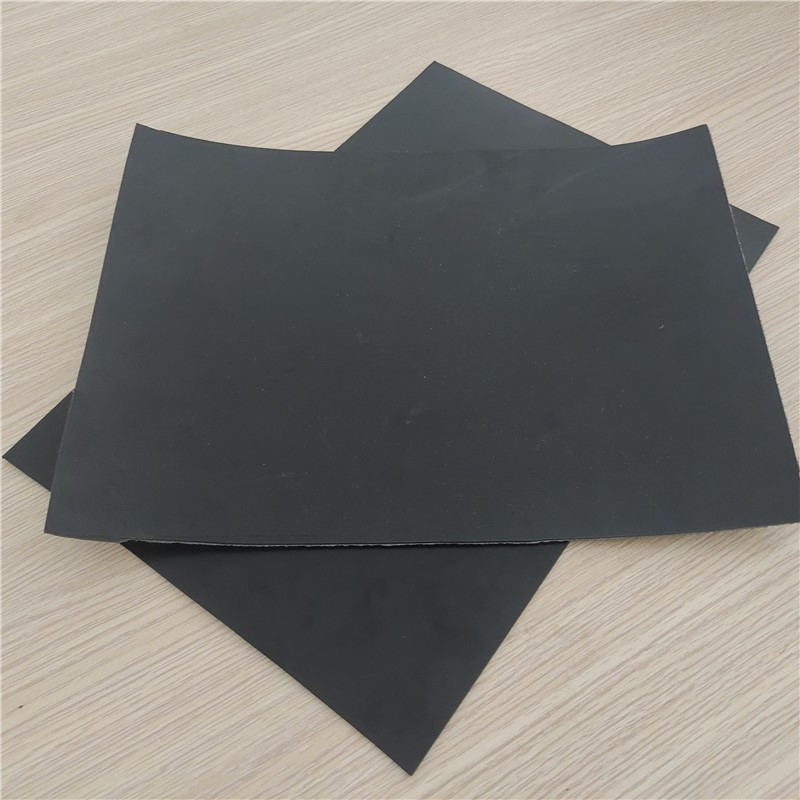

1.0mm 1.5mm 2.0mm HDPE Geomembrane For Landfill
The thickness of the anti-seepage film for landfill is usully between 1.0~2.0mm.The anti-seepage film used in landfills,also known as HDPE Geomembrane(HDPE geotechnical film),is a waterproof barrier material with polyethylene primary resin as the basic raw material.This geomembrane is mainly used to prevent garbage leachate from penetrating into the ground and avoid polluting groundwater.According to different stages of use and requirements,the thickness of HDPE geomembrane varies.
Technical parameters of 1.0mm 1.5mm 2.0mm HDPE Geomembrane For Landfill:
Test Properties | unit | Test Method | Test Frequency | LK MS75 | LK MS10 | LK MS15 | LK MS20 | LK MS30 | |
Mechanical Propertiers | Thickness | mm | D5199 | Per roll | 0.75 | 1.00 | 1.50 | 2.00 | 3.00 |
Density | g/cc | D1505/D792 | 90,000kg | 0.94 | |||||
Tensile properties |
D6693 Type IV |
9,000kg | |||||||
Yield strength | KN/m | 11 | 15 | 22 | 29 | 44 | |||
Break strength | KN/m | 20 | 27 | 40 | 53 | 80 | |||
Yield elongation | % | 12 | 12 | 12 | 12 | 12 | |||
Break elongation | % | 700 | 700 | 700 | 700 | 700 | |||
Tear Resistance | N | D1004 | 20,000kg | 93 | 125 | 187 | 249 | 374 | |
Puncture resistance | N | D4883 | 20,000kg | 240 | 320 | 480 | 640 | 960 | |
Stress crack Resistance | Hr. | D5397 | PerGRI GM-10 | 300hr | |||||
Carbon Black Content | % | D4218 | 9,000kg | 2.0-3.0% | |||||
Reference Properties | Oxidative Induction Time | Min | |||||||
Standard OIT | D3895 | 90,000kg | 100min | ||||||
High Pressure OIT | D5885 | 400min | |||||||
Oven Aging at 85℃(retained after 90 days) | % | D5712 | Per each formulation |
50% 80% | |||||
(a)standard OIT | D3895 | ||||||||
(b)High Pressure OIT | D5885 | ||||||||
UV Resistance High Pressure OIT Rerained after1600h | % | D5885 | Per each formulation | 50% | |||||
Roll Size | Roll width | m | 7 | 7 | 7 | 7 | 7 | ||
Roll Length | m | 280 | 210 | 140 | 105 | 70 | |||
Size Stability | % | 2% |
Main functions of Geomembrane HDPE:
HDPE geomembrane integrates anti-seepage and drainage,and has the functions of isolation and reinforcement.
It has high composite strength,high peel strength,high puncture resistance.
It has strong drainage capacity,large friction coefficient.
It has good aging resistance,adapt to the environmental temperature range,stable quality.
Lead time of geomembrane for landfill:
Quantity(square meters) | 1-3000 | 3001-20000 | 20000 |
Lead time(days) | 2 | 5 | To be negotiated |
HDPE geomembrane application:
The application fields of geomembrane are:environmental protection and sanitation,water conservancy engineering,garden,petrochemical,mining,aquaculture and other fields.

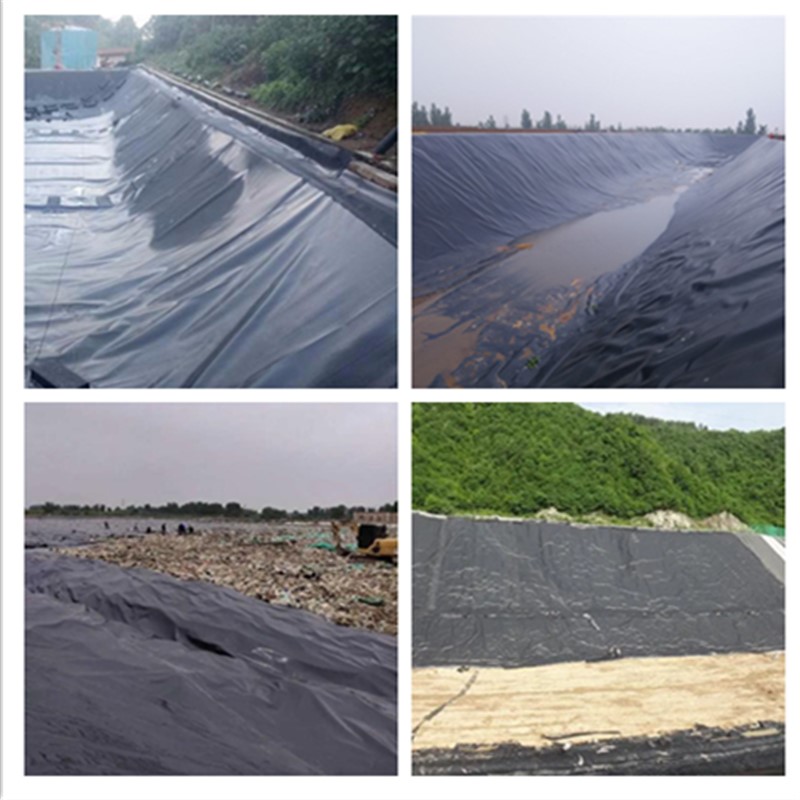

HDPE geomembrane is the most widely used in landfill anti-seepage engineering material.The most commonly used projects are:landfill,sewage threatment plant,artificial lake,reservoir,slope protection,greening,sedimentation tank,biogas digester,sewage tank,tunnel waterproofing and other projects.
