Geomembrane HDPE Geomembrane Liner Pond Liner

HDPE Geomembrane has good chemical stability,it can resist strong acid,alkli,oil corrosion is a good anti-corrosion material.

Geomembrane has a strong weather resistance.

HDPE geomembrane water plastic has s strong anti-aging performance.it can be used for a long time and maintain the original performance.

Smooth and textured polyethlene geomembrane has excellent tensile strength and elongation at break,so that it can be used in a variety of different harsh geological and climatic conditions.

Contact Now

Product Details

geomembrane HDPE Geomembrane Liner Pond Liner

With the continuous improvement of people's living standards, a variety of new materials came into being. HDPE Geomembrane as a new type of building material, has been more and more widely used and concerned. geomembrane is polyethylene and other polymer materials adding carbon black,antioxidant,anti-aging and UV resistance component blow molded,thus HDPE geomembrane is high strength,aging resistance,good welding performance easy to construct. they are mainly used in seepage control projects for channels,sewage treatment ponds,wharf works.river embank and reservoirs,lake dams,subways,landfills and so on.we can provid the samples:maximum:1 square meter.

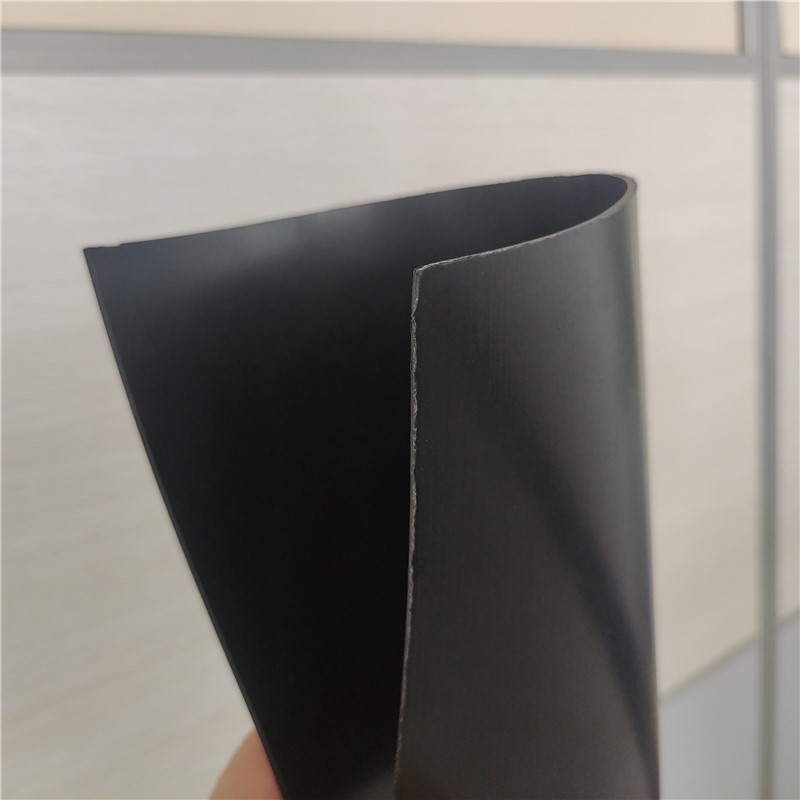

HDPE Geomembrane Waterproof Plastic.jpg

The parameters of China HDPE geomembrane:

	Test Properties	unit	Test Method	Test Frequency	LK MS75	LK MS10	LK MS15	LK MS20	LK MS30
Mechanical Propertiers	Thickness	mm	D5199	Per roll	0.75	1.00	1.50	2.00	3.00
	Density	g/cc	D1505/D792	90,000kg	0.94
	Tensile properties		D6693 Type IV	9,000kg
	Yield strength	KN/m			11	15	22	29	44
	Break strength	KN/m			20	27	40	53	80
	Yield elongation	%			12	12	12	12	12
	Break elongation	%			700	700	700	700	700
	Tear Resistance	N	D1004	20,000kg	93	125	187	249	374
	Puncture resistance	N	D4883	20,000kg	240	320	480	640	960
	Stress crack Resistance	Hr.	D5397	Per GRI GM-10	300hr
	Carbon Black Content	%	D4218	9,000kg	2.0-3.0%
Reference Properties	Oxidative Induction Time	Min
	Standard OIT		D3895	90,000kg	100min
	High Pressure OIT		D5885	90,000kg	400min
	Oven Aging at 85℃（retained after 90 days）	%	D5712	Per each formulation	55%
	(a)standard OIT		D3895
	(b)High Pressure OIT		D5885
	UV Resistance High Pressure OIT Rerained after1600h	%	D5885	Per each formulation	50%
Roll Size	Roll width	m			7	7	7	7	7
	Roll Length	m			280	210	140	105	70
	Size Stability	%	2%

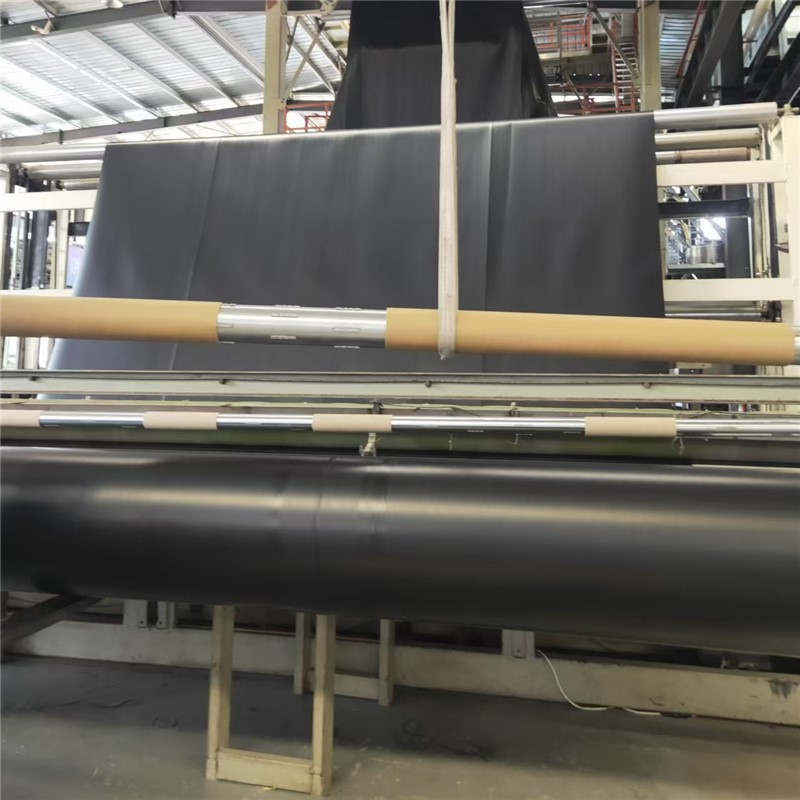

Smooth HDPE Geomembrane Liner.jpg

The feature of Hdpe geomembrane liner:

1、Geomembrane has high tensile strength and tear strength, can withstand various external forces, and is not easy to deformation and damage.

2、Geomembrane has high corrosion resistance to various chemical substances, and can effectively resist the erosion of various acids, alkali, salt and other chemical substances.

3、High anti-aging: After special treatment, the geomembrane can effectively delay aging and service life and maintain its physical properties for a long time.

4、Anti-leakage: geomembrane has good anti-leakage performance, which can effectively prevent liquid penetration and leakage, and ensure the quality and safety of construction projects.

5、Simple construction: the construction of HDPE geomembrane liner is simple and convenient, easy to operate, which can greatly shorten the construction period and improve the construction efficiency.

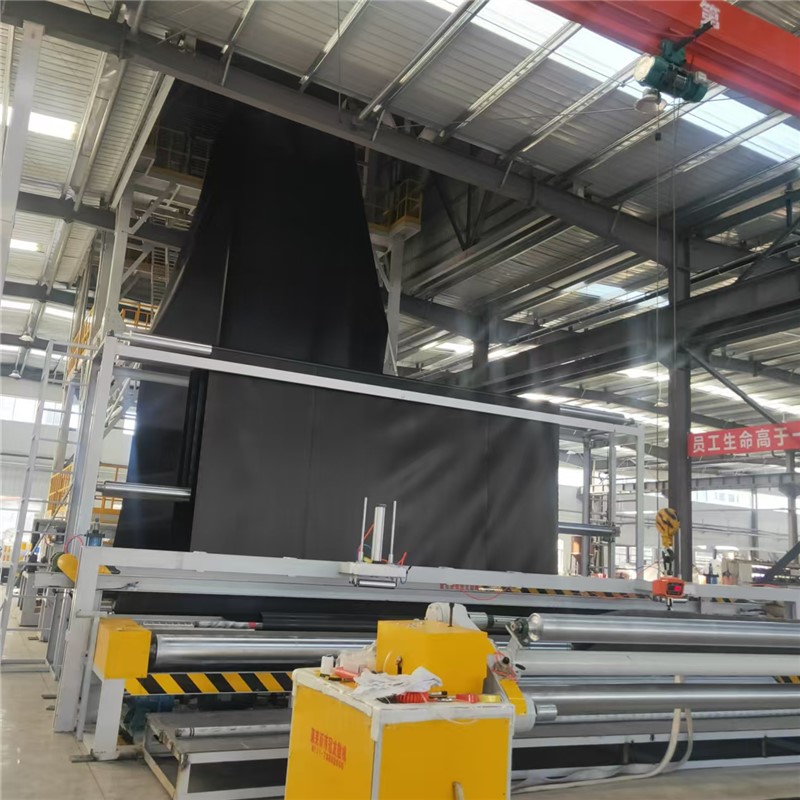

Geomembrane HDPE Geomembrane Liner.jpg

Application with geomembrane HDPE geomembrane:

1、In water conservancy engineering,it can be used as a geomembrane dam liner,rivers and other projects,which can effectively improve the anti-seepge performance and service life of water conservancy projects.

2、In environmental protection engineering,geomembrane is widely used in sewage treatment,landfill and other projects,which can effectively prevent pollution and leakage.

3、In construction engineering,geomembrane is widely used in roofs,basements,parking lots and other parts that need to be waterproof nd moisture-proof,which can improve the waterproof performance and service life of buildings.

4、HDPE geomembrane has strong acid,alkail,salt,so it can also be widely used in petroleum,chemical,mining and other fields,can play a role in anti-leakage,anti-corrosion and so on.

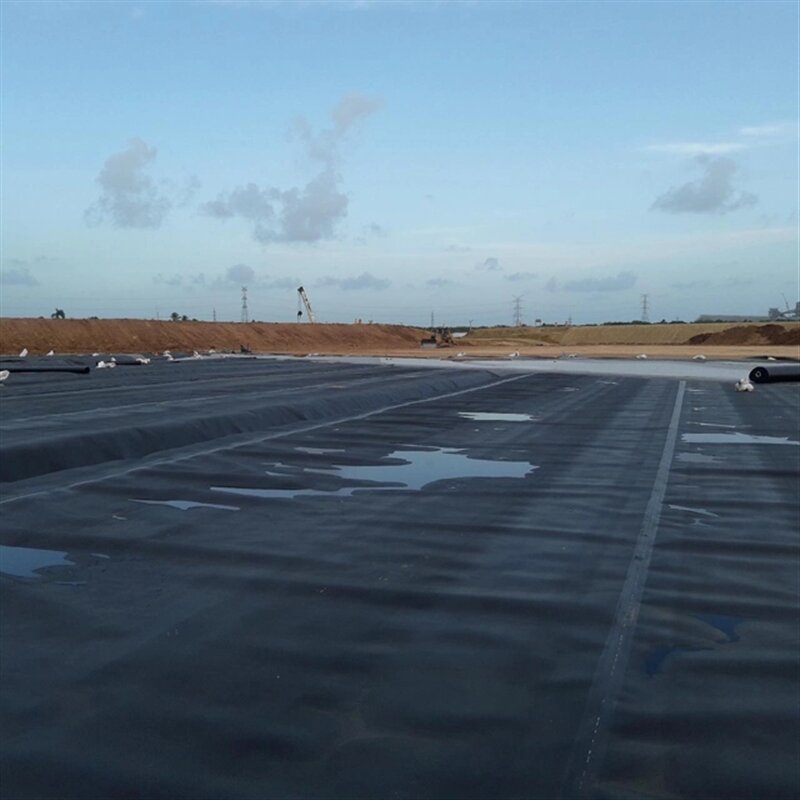

Application With Geomembrane HDPE Geomembrane.jpg
