- Factory price geomembrane
- Free sample
- Export geotechnical materials for 8+ years
We supply : Advanced equiment + 24 hours production + test each roll + standard exporting package

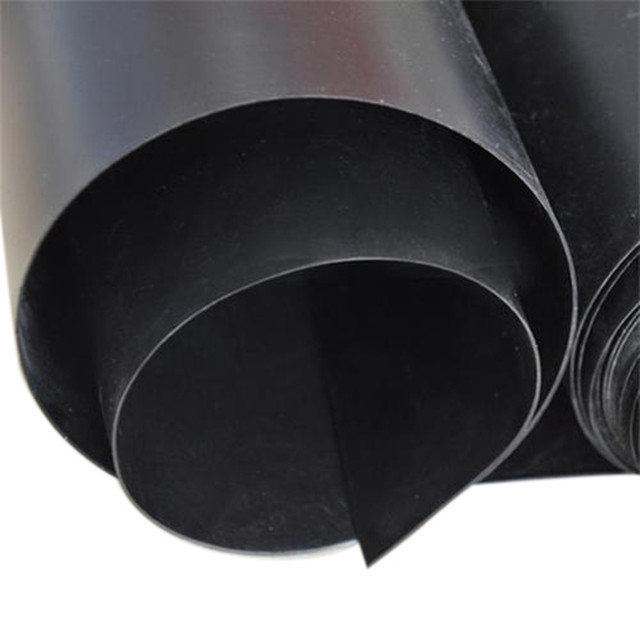

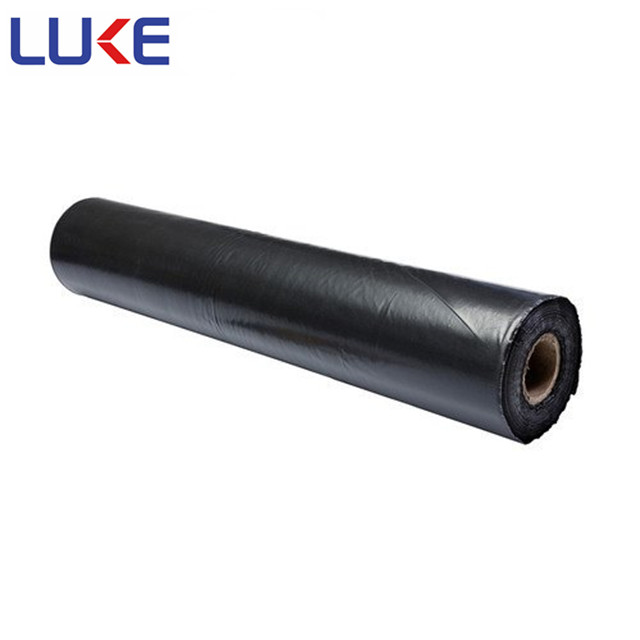

HDPE Geomembrane Fish Farm Pond liner is produced from high density polyethylene resin by film-blowing process,
adding carbon black, antioxidant, anti-aging and UV-resistance component.
Now it is the most widely used products for swimming pools, artificial lake, artifical river and water containment applications.
After testing, the quality meets the ASTM standard GM GRI 13 completely.
We confirm : 100% virgin HDPE + 2~3% carbon black + antioxidant, anti-aging and UV resistance component.
We supply : Advanced equipment + 24 hours production + test each roll+ standard exporting package.
We recommend : 0.5 mm or 0.75 mm-thickness is used for pond liner
1.5 mm-thickness is used for landfill
2.0 mm-thickness is used for dam liner.
Parameter
Test Properties | unit | Test Method | Test Frequency | LKMS75 | LKMS10 | LKMS15 | LKMS20 | LKMS30 | |
Mechanical Properties | Thickness | mm | D5199 | Per roll | 0.75 | 1.00 | 1.50 | 2.00 | 3.00 |
Density | g/cc | D1505/D792 | 90,000kg | 0.94 | |||||
Tensile properties Yield strength break strength yield elongation break elongation |
KN/m KN/m % % |
D6693 Type IV |
9,000kg |
11 8 12 100 |
15 10 12 100 |
22 16 12 100 |
29 21 12 100 |
44 32 12 100 | |
Tear Resistance | N | D1004 | 20,000kg | 93 | 125 | 190 | 250 | 375 | |
Puncture Resistance | N | D4833 | 20,000kg | 200 | 270 | 400 | 535 | 800 | |
Stress Crack Resistance | hr. | D5397 | Per GRI GM-10 | 300hr | |||||
Carbon Black Content | % | D4218 | 9,000kg | 2.0-3.0% | |||||
Reference Properties | Oxidative Induction Time (a) standard OIT (b) High Pressure OIT |
min |
D3895 D5885 |
90,000kg |
100min 400min | ||||
oven Aging at 85℃ Retained after 90 days (a) standard OIT (b) High Pressure OIT |
% |
D5712 D3895 D5885 | Per each formulation |
55%
| |||||
UV Resistance High Pressure OIT Retrained after 1600h |
% |
D5885 | Per each formulation |
50%
| |||||
Roll Size | Roll width | m | 7 | 7 | 7 | 7 | 7 | ||
Roll Length | m | 280 | 210 | 140 | 105 | 70 | |||
Size Stability | % | 2% |
Feature
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.
Application
1) Environmental protection, sanitation
(such as solid waste landfills, sewage treatment plants, power plants Chi-conditioning,industrial, hospital solid waste, etc)
2) Water Conservancy
(such as rivers, lakes and reservoirs of the anti-dam,reinforcement of the canal seepage, the vertical wall of the heart etc.)
3) Municipal Engineering
(subway, on the ground floor of the building, planted roof, the roof garden of anti-seepage, sewage pipes lining, etc.)
4) Landscape
(man-made lake, river, reservoir, golf courses reservoirs of the substrate,green lawn of the waterproof moisture, etc.)
5) Petrochemical
(chemical plants, oil refineries, gas storage tanks of the anti-chemical reaction tanks, sedimentation tanks of the lining, etc.)
6) Mining
(washing and pool heap leaching, the ash-field, dissolved, precipitation, the yard, the tailings seepage substrates etc.)

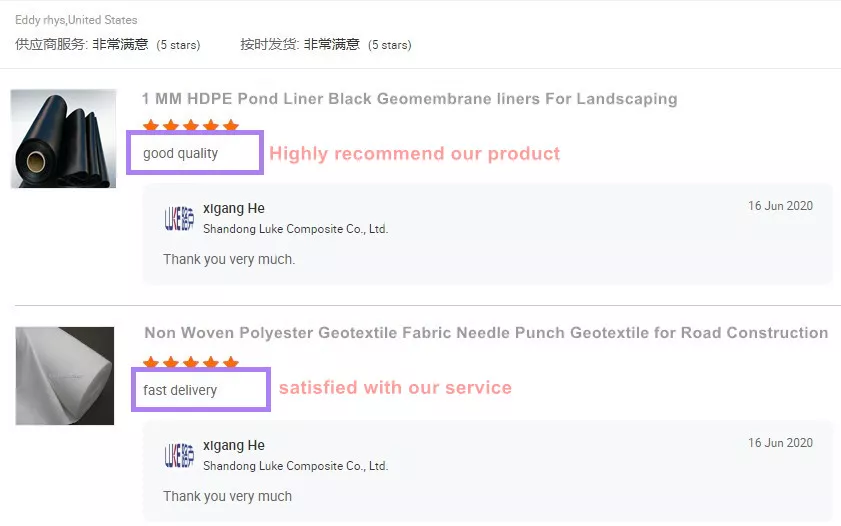

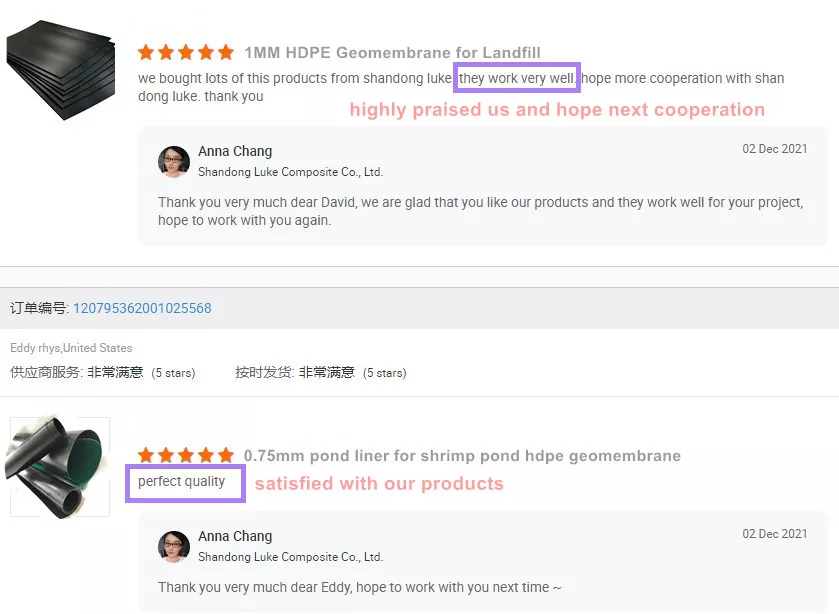

Customer Feedback
Company Information

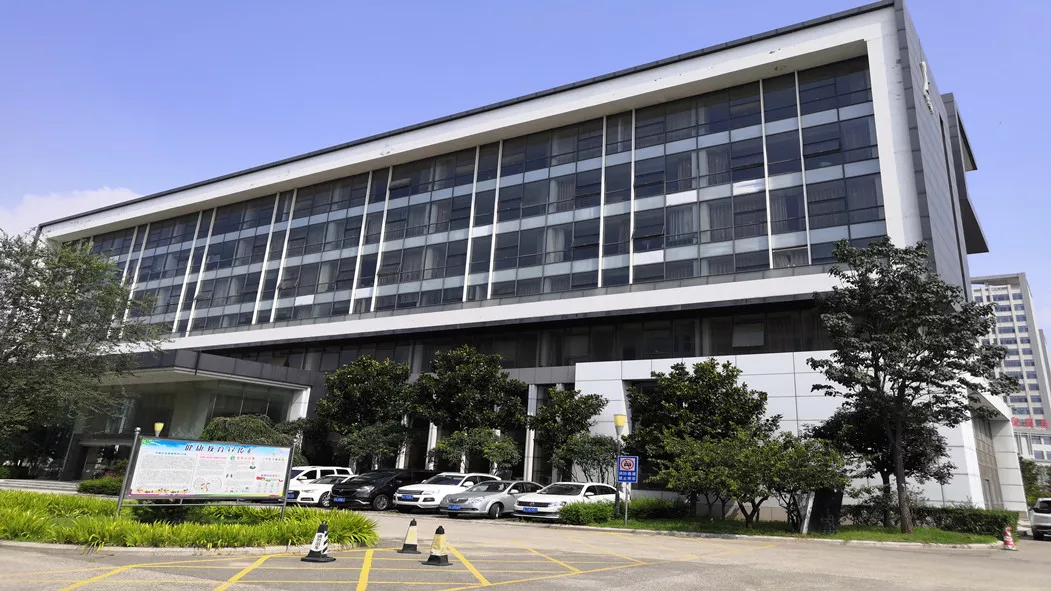

Shandong Luke Composite Co., Ltd is a professional company which has more than ten years working in the field of
Geo- materials, also has a professional team for export business.
Our geosynthetic materials have been exported to more than 30 nations and regions, such as
Southeast Asia, Australia, North America, Europe, Middle East and Africa –
- Plastic grass grid
LUKE purpose : supply qualified products, competitive price and efficient service, expecting to achieve the goal of
long term cooperation and mutual benefits.
