HDPE Textured Geomembrane

Good Flexibility

Antioxidant,Anti-aging and UV Resistance

Excellent Environmental Stress Cracking Resistance Property

High Tensile Strength and Elongation


  Contact Now
Product Details

Product Details

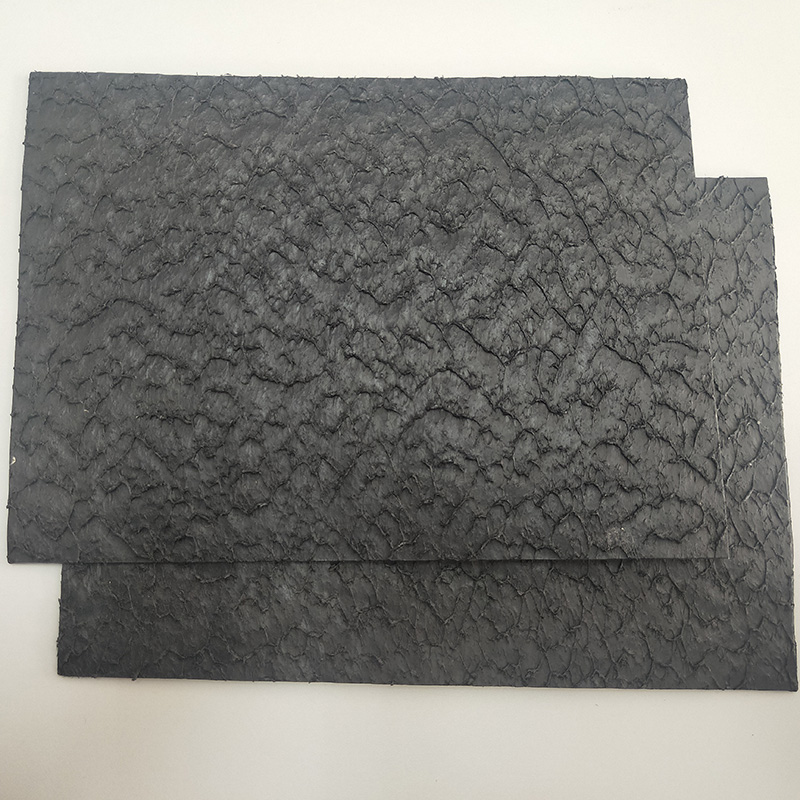

Textured HDPE Geomembrane is designed and fabricated with either single-sided or double-sided textured surface.

Textured geomembrane has a rough surface which can highly improve the friction coefficient which fits more suitable for steep slope and vertical engineering design work which maximize the effective volume of geomembrane, they are also processed with smooth edges to allow for high quality thermal fusion welding between adjacent sheets.

All textured geomembranes are made of imported raw material with advanced manufacturing equipment and professional production technology, they are packed in double woven geotextile and strength belt.

Textured HDPE geomembranes are widely applied for such projects which need increased friction between two layers and high steeper slopes as landfills, mining, retaining back fills and waste containment.



 HDPE Textured Geomembrane.jpg



Parameter


 Test Properties

unit

Test Method

 Test Frequency

LKMS75

LKMS10

LKMS15

LKMS20

LKMS30













Mechanical Properties

 Thickness

mm

D5199

Per roll

0.75

1.00

1.50

2.00

3.00

 Density

g/cc

D1505/D792

90,000kg

         0.94



Tensile properties

Yield strength

  break strength

 yield elongation

 break elongation





KN/m

KN/m

%

%



D6693

Type IV





9,000kg





11

8

12

100





15

10

12

100





22

16

12

100





29

21

12

100





44

32

12

100

 Tear Resistance

N

D1004

20,000kg

93

125

190

250

375

 Puncture Resistance

N

D4833

20,000kg

200

270

400

535

800



Stress Crack Resistance

hr.

D5397

Per GRI GM-10

         300hr

Carbon Black Content

%

D4218

9,000kg

       2.0-3.0%











 Reference Properties

 Oxidative Induction Time

(a) standard OIT

(b) High Pressure OIT



min



D3895

D5885



90,000kg



        100min

        400min

oven Aging at 85℃ Retained after 90 days

(a) standard OIT(b) High Pressure OIT



%



D5712

D3895

D5885


Per each

 formulation





55%



 UV Resistance

High Pressure OIT Retrained after 1600h



%



D5885

Per each formulation



          50%





Roll Size

 Roll width

m


7

7

7

7

7

 Roll Length

m


280

210

140

105

70

 Size Stability

%

2%



Feature

Can be textured on one or both sides for your demands.

Increased frictional coefficient for steep slopes.

Outstanding ultraviolet and chemical resistance.

Outstanding UV Environmental stress crack resistance.

High tensile strength and low elongation.

Excellent friction coefficient and tensile strength with Geotextile reinforcement performance.


HDPE Textured Geomembrane.jpg

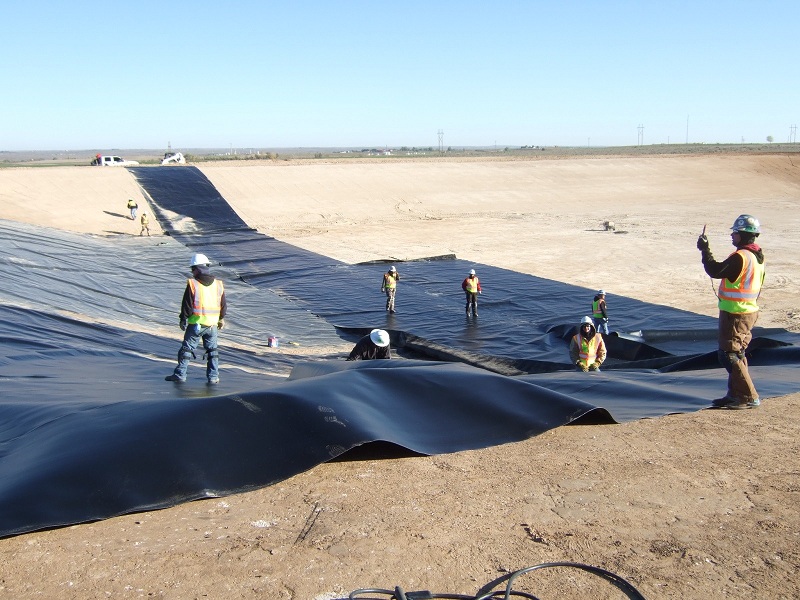

Application

Textured HDPE geomembrane have been widely in backfilled liner, retaining backfill on steep side, heap leach pads, landfill and pad base liner, water conservancy applications such as dam, reservoirs, sewage pools, swimming pools, buildings, underground buildings, garbage dumps and mining projects.


HDPE Textured Geomembrane.jpg
