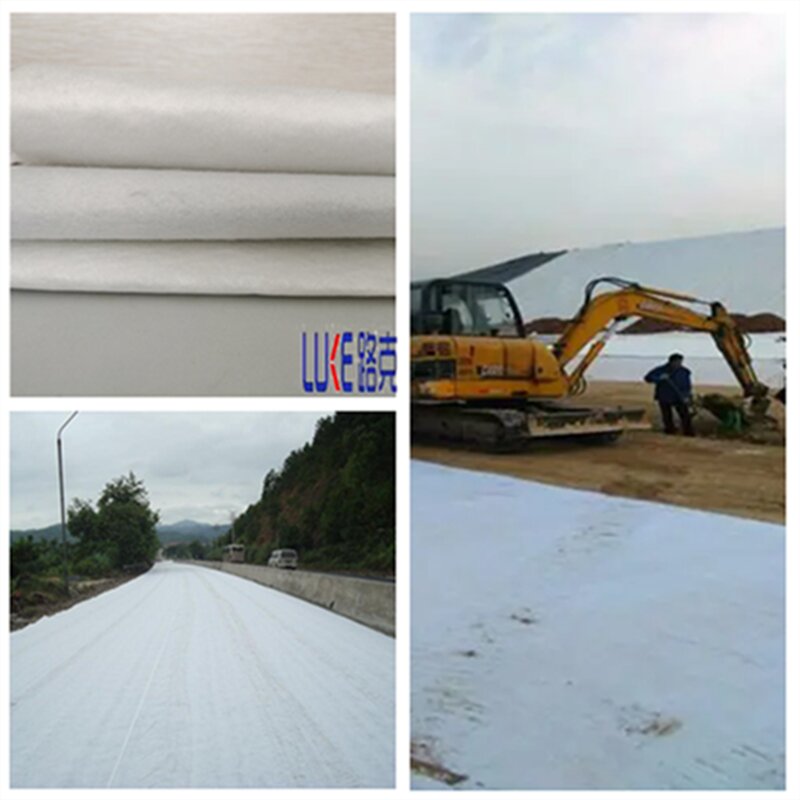

Needle-Punched Non Woven Geotextile

The needle punched non woven geotextile has good high tensile strength.

Geotextiles have good resistance to aging, tear and puncture.

It can resistance to acid and alkali.

Geotextiles has good impermeability and resistance to deformation.

Polyester(PET) geotextiles and polypropylene(PP) geotextiles be widely applier in civil projects for separation,filtration,reinforcement,protection,drainage,and etc.


  Contact Now
Product Details

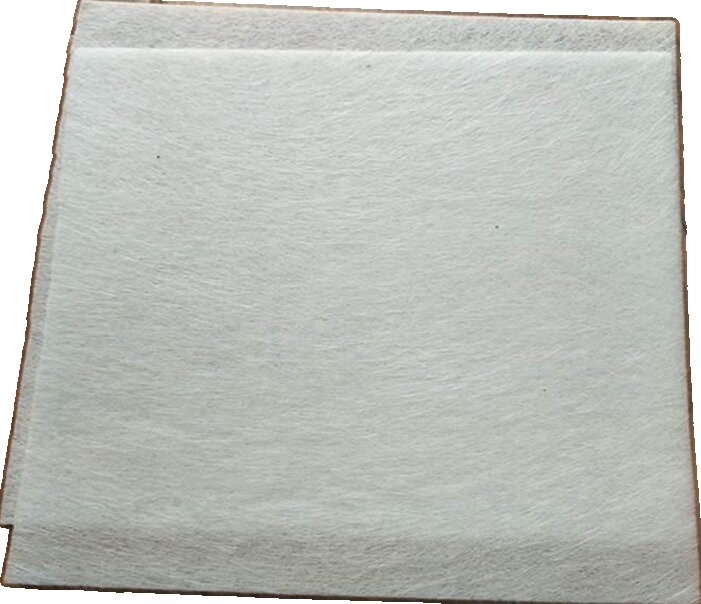

 Needle-punched Non Woven Geotextile


Geotextile, as an important material widely used in civil engineering, has a wide variety of materials with its own characteristics. First of all, polypropylene (PP) geotextile is one of them. It is made of polypropylene as the main raw material and processed by special technology. Secondly, polyester (PET) geotextile is also one of the common materials. Polyester geotextile is made of polyester fiber by knitting or needling.


Needle-punched Non Woven Geotextile.jpg


Characteristics and uses of Needle punched geotextile:

Non woven geotextile has the advantages of light weigh,low cost,corrosion resistance,with reverse filtration,darainage,isolation,enhancement and other excellent performance.


Needle-punched Non Woven Geotextile.jpg


The parameters of geotextiles:

Test   Properties

Units

LKS10

LKS15

LKS20

LKS25

LKS30

LKS35

LKS40

LKS45

LKS50

LKS60

LKS80

Mechanical   Properties

Weight

g/㎡

100

150

200

250

300

350

400

450

500

600

800

Weight   Variation

%

-8

-8

-8

-8

-7

-7

-7

-7

-6

-6

-6

Thickness

mm

0.9

1.3

1.7

2.1

2.4

2.7

3

3.3

3.6

4.1

5

Width   Variation

%

0.5

Break   Strength(MD and XMD)

kN/m

2.5

4.5

6.5

8

9.5

11

12.5

14

16

19

25

Break   Elongation

%

25-100

CBR   Burst Strength


0.30.60.91.21.51.82.12.42.73.24

Tear   Strength≥(MD and XMD)

kN

0.08

0.12

0.16

0.2

0.24

0.28

0.33

0.38

0.42

0.46

0.6

Hydraulic   Properties

Sieve   SizeO90

mm

0.07-0.20

Coefficient   of Permeability

Cm/s

(1.0-9.9) ×(10-1-10-3


Needle-punched Non Woven Geotextile.jpg


Lead time and packaging of staple needle punched geotextiles:

Quantity(square meters)

1-6000

6001-30000

>30000

Lead time(days)

2

5

To be negotiated

Woven bag in roll or customer’s requirements.


Needle-punched Non Woven Geotextile.jpg


Application fields of PP PET geotextile:

1、  Reinforcement in retainning wall backfill

2、  Strengthen the weak road and fix the cracks on the road.

3、  Improve the stability of slope and reinforcement soil,avoid water and soil loss and soil frozen in jure.

4、  Isolation layer of drainage pipe or gravel sub-drain.

5、  Vertical or horizontal drainage,bury in soil to release air pressure.

6、  Reinforcement the weak foundation of engineering of road,railway,embankment,airport.


Needle-Punched Non Woven Geotextile.jpg
