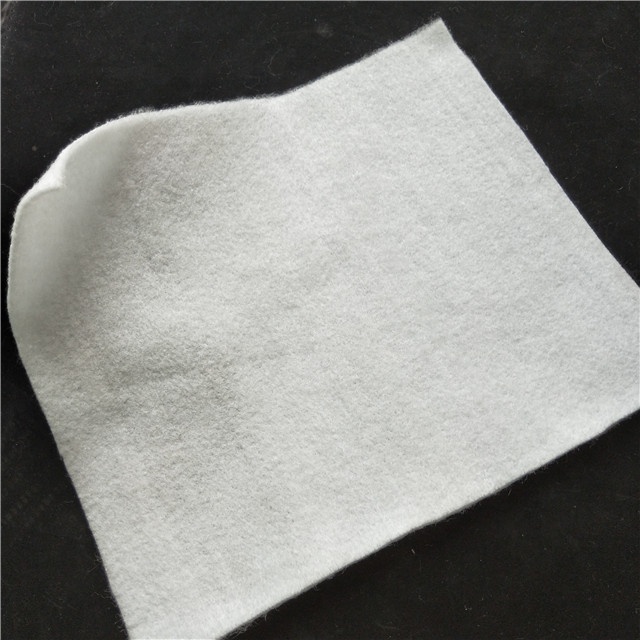

Staple Fiber Needle Punched Geotextile

High tensile strength

Excellent water permeability and filtration

Good resistance to aging, tear and puncture

Resistance to acid and alkali


Weight: 100-600g/m2

Width: 0.6~0.8mm

Color: Black White Blue Green Grey


  Contact Now
Product Details

Product Description


Geotextile Products is made from 100% virgin staple polypropylene fibers that are tangled and interlocked with each other by needle-punching processes. Non woven polypropylene fabric is the kind of Geotextile Products which is robust, durable, permeable and resist to deformation. Non woven polypropylene geotextile is widely used to increase ground support and soil stabilization in a given location, it has the characteristics of high tensile strength, high elongation rate, excellent UV stabilization, excellent filtration and good abrasion resistance, etc. Our non woven polypropylene geotextile is widely used for filtration,separation,protection, drainage applications in civil environmental engineering and construction projects.


Filament Polyester Geotextile for Sale


Parameter


Weight

g/m2

100

150

200

250

300

350

400

450

500

600

800

Weight Variation

%

-6

-6

-6

-5

-5

-5

-5

-5

-4

-4

-4

Thickness

mm

0.8

1.2

1.6

1.9

2.2

2.5

2.8

3.1

3.4

4.2

5.5

Width Variation

%

-0.5

Break Strength

KN/m

4.5

7.5

10.5

12.5

15

17.5

20.5

22.5

25

30

40

Break Elongation

%

40-180

CBR Burst Strength ≥

KN

0.8

1.4

1.8

2.2

2.6

3

3.5

4

4.7

5.5

7

Tear Strength ≥

(MD and XMD)

KN

0.08

0.12

0.16

0.2

0.24

0.28

0.33

0.38

0.42

0.46

0.6

O90

Sieve Size O90

mm

0.07-0.20

Vertical Permeability Coefficient

cm/s

(1.0-9.9) x (0.1-0.001)

Tear Strength

KN/M

0.14

0.21

0.28

0.35

0.42

0.49

0.56

0.63

0.7

0.82

1.1


Feature

1) Increases road durability (less rut).

2) Avoids contamination of frost-resistant support layer by freezing subsoil.

3) Allows better compaction and aggregate saving ensures longer service life reduces costs and maintenance disturbance.

4) Moisture Barrier/Waterproofing Function.


Staple Fiber Needle Punched Geotextile


Application

Typical applications of geotextiles are:

1) Retaining walls

2) Steep slopes

3) Landslide repairs

4) Soft-soil embankments

5) Embankments on very soft soils, combined with vertical drains

6) Roadway reinforcement

7) Reinforcement under tramways or railway ballast

8) Erosion control in sea embankments and waterworks slopes

9) Reinforcement of foundation layers

10) Reinforcement or bridging over potential weak zones, voids or cavities Piled embankments with basal reinforcement.

11) The application areas for geotextiles and related materials are numerous and are constantly growing.
