Geocell Details

1) Flexible to fold during the transport and installation on construction site

1) Higher lateral restrict and prevent slippery

3)Enhance the bearing capacity of roadbed and scattered loads


  Contact Now
Product Details

Product Details

Hdpe geocell is manufactured from a new form of high strength geosynthetic, that is famous with each home and abroad, according with gb/t 19274-2003 implementation of the necessities, which welding the reinforced hdpe sheets with the aid of way of the immoderate-energy ultrasonic and forming to be a structure of 3-dimensional reticular formation this is without trouble folding.

And reachable for transportation.

Whilst it's far be in introduction,the hdpe geocell can be pull right into a network and launched into a 3-dimensional honeycomb grid.

As it filled in sol,macadam,concrete or one of a kind granular substances,constituted to be a creation which has strong sidewise restraint and high fee of stiffness


Geocell Details


Parameter

Product Type

Height (mm)

Welding Distance (mm)

Thickness (mm)

Tensile Strength of Welding Points (N/cm)

Tensile Strength of Commection of Cells (N/cm)

Tensile Strength of Yield of Each Sheet (Mpa)

Smooth and Not Perforated

50WM250

330赤 1000

1.0-1.4

2100

2120

220

Smooth and Perforated

50MHM250

330KAM1000

1.0-1.4

2100

2120

之20

Textured and Not Perforated

50SHS250

330^1000

1.0-1.4

2100

2120

220

Textured and Perforated

50WM250

330赤 1000

1.0-1.4

>100

2120

220

Remarks: This is a basic technical specification. All the above technical parameters can be reached according to customer's requirement and other special standard can be carried out by agreement or contract.


Feature

1) It is flexible to fold during the transport and installation on construction site.

The geocell nets will be filled with soils, granular, cements or other on site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.

2) Material is qualitative light, wear resistance, chemical stability, light oxygen aging resistance, resistance to acid and alkali.

Suitable for different soil and soil conditions, such as desert.

3) Higher lateral restrict and prevent slippery, prevent deformation, effectively enhance the bearing capacity of subgrade and scattered loads.

4) Change the large room height, welding such as geometrical size can meet different engineering needs retractile, transport of small size.

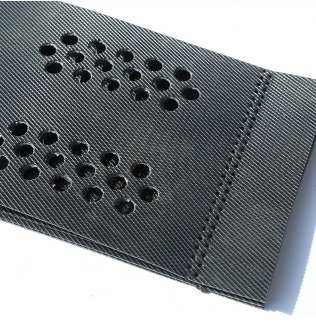

Geocell Details.jpg


Application

1)Load support: Solve unacceptable road,parking, and yard surface problems.

2)Slope protection: Create a stable environment for long-term sustainability of embankment material.

3)Channel protection:Ensure stability and protection of channels exposed to all types of erosive conditions.

4)Vegetated retaining walls: Includes steepened slopes, retaining walls, gravity walls and so on.

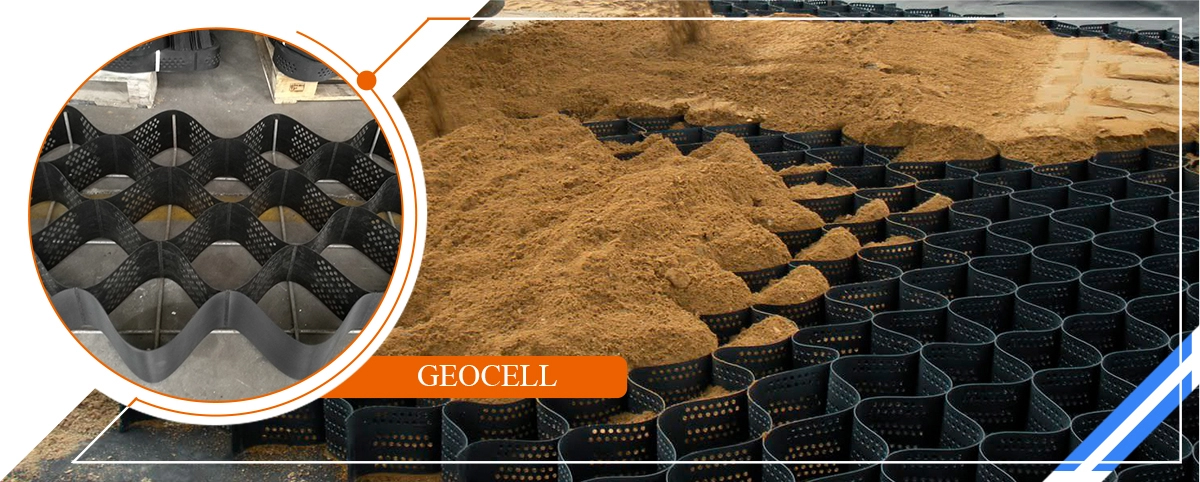

Geocell Details.png
