The Biaxial Geogrid

High Tensile Strength and Low Elongation

Excellent soil stabilization

Good sub-base reinforcement

Anti-corrosion

Easy to install


  Contact Now
Product Details

Product Details

Plastic geogrid includes biaxial geogrid and uniaxial geogrid according to its structure.

Biaxial plastic geogrid is made of polyethylene or high density polyethylene as the main raw material through the processes of hot-melt extrusion, vertical and horizontal stretching to form a high strength reinforced square mesh structure.

Uniaxial plastic geogrid is made of high molecular polymer after extruded and laminated and punched into regular mesh before longitudinal stretching.This process makes high molecule in direct line state in oblong oval net structure with uniform distribution and high node intensity.

So the plastic geogrid material on the longitudinal and transverse has great mechanical strength which can provide a more effectively undertake and spread of the tensile strength thought system inside the soil.

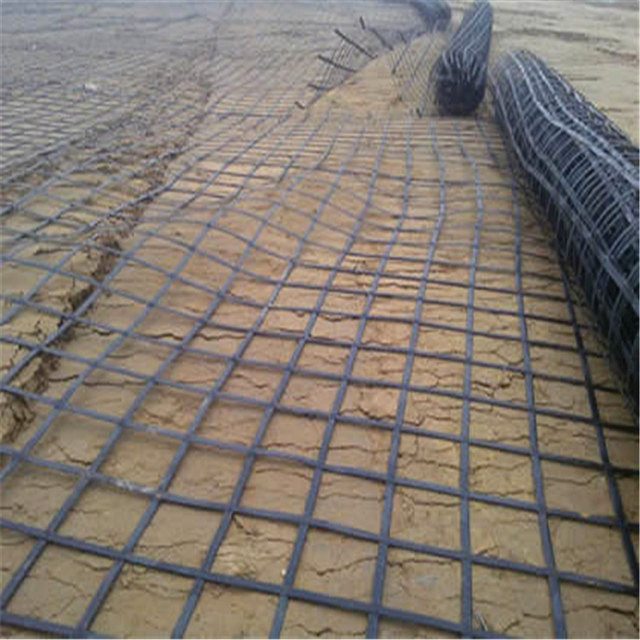

The Biaxial Geogrid.jpg


Parameter

Properties Item

Tensile Strength kN/m

Elongation %

Tensile Strength@2%
StrainkN/m

Tensile Strength@2%
StrainkN/m


Longitudinal

Tranaveres

Longitudinal

Tranaveres

Longitudinal

Tranaveres

Longitudinal

Tranaveres

LKSG 15-15

15

15

13

16

5

7

8

10

LKSG 20-20

20

20

13

16

8

10

10

13

LKSG 25-25

25

25

13

16

8

11

11

13

LKSG 30-30

30

30

13

16

11

13

15

15

LKSG 35-35

35

35

13

16

12

14

15

18

LKSG 40-40

40

40

13

16

13

15

16

20


Feature

· Excellent soil stabilization

· Good sub-base reinforcement

· Heavy duty foundation support

· High strength

· Anti-corrosion

· High junction efficiency

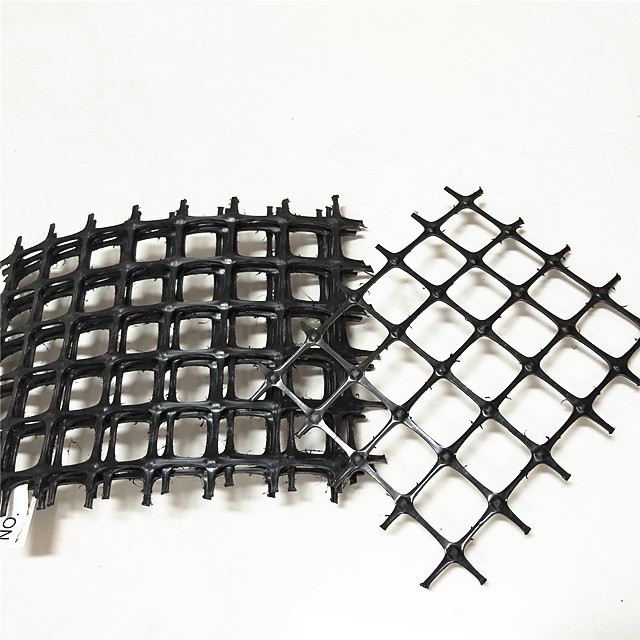

The Biaxial Geogrid.jpg


Application

1) Soft foundation reinforcing for highway, railway, airport,large car park,dock and so on.

2) Slope protecting projects and culvert reinforcement.

3) Landfill sites and also used in cultivation.
