Reinforced Concrete Curved PP Macro Fiber

Safety, Ductility, Durability

Crack Control, Energy absorption

Stain free concrete surfaces, Quick, easy and safe application

An efficient and effective secondary reinforcement alternative


  Contact Now
Product Details

Product Introduction

    With 100% polypropylene as raw material, PP macro fiber is produced by special molding process and surface modification; it has advantage of acid, alkali resistant, excellent tensile, easy dispersing, convenience for construction and no damage to vehicles and pavement and no need for special conservation.

    PP macro fiber can be used instead of steel fiber to enhance the crack resistance of cement concrete and significantly improve the toughness and flexural of concrete.

Applying instruction

1) Dosage: more than 3kg/cubic meter of concrete.


2) Length: 36mm for general crack level,

                 no more than 25mm for shotcrete,

                 best use no more than 35mm.

3) Mix design: In general, no need change the ratio parameters of concrete. considering the concrete anti-cracking performance requirements, can add 0.9 kg monofilament fiber per square concrete.

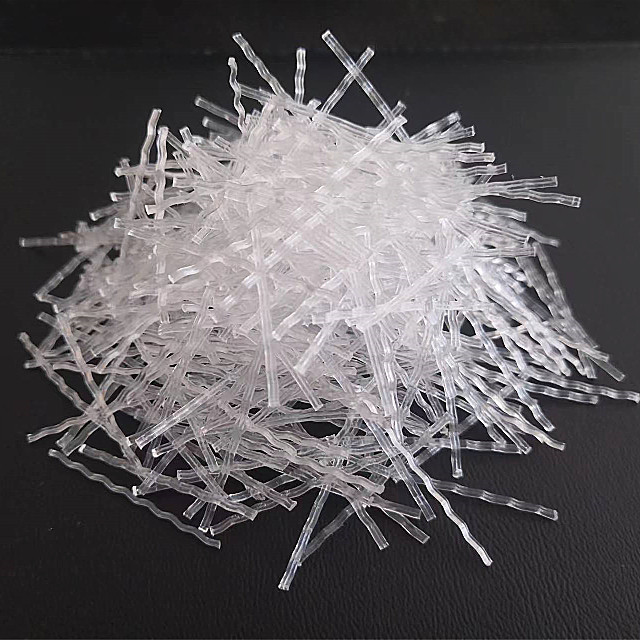

Reinforced Concrete Curved PP Macro Fiber.jpg


Technical  Parameter

(g/cm3)Density

0.91-0.92

(mm)Length

20~60

Color

Black or white



Shape

Curved, waved, embossed

(MPa)Tensile Strength

≥500

Elastic Modulus(MPa)

≥4000

(mm)Diameter

0.8~1.3mm

(%)Crack   Elongation

>15

Melting Point

160-170℃



Resistance Acid alkali

strong

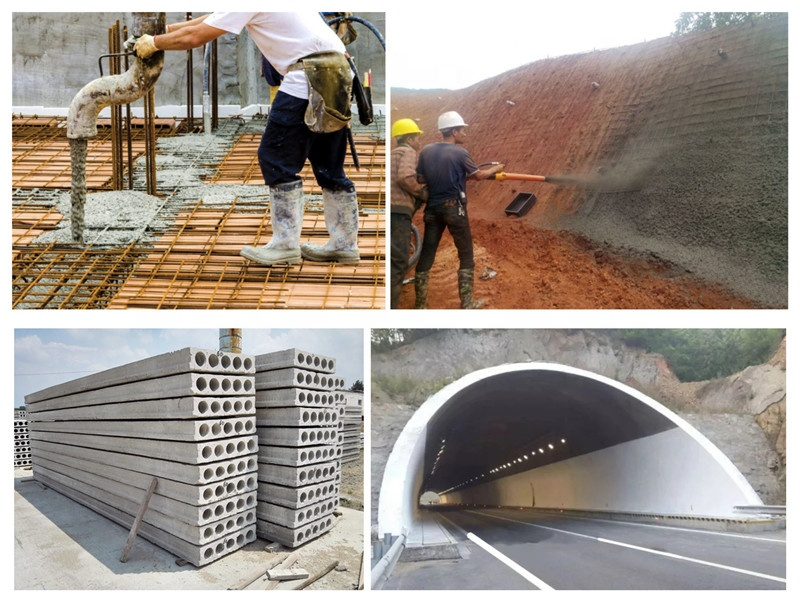

Application

1. Surface of road and highway.

2. Toll station, Concrete panel, Factory floor, Tunnel, Roof, Parking lot and Wharf of the port.

3. Bridge project, Water conservancy project.

4. Ratio : Please put 3kg per cubic meter of concrete or as your design.

Reinforced Concrete Curved PP Macro Fiber.png
