Woven Geotextile To Use

* High tensile strength

* Excellent water permeability and filtration

* Good resistance to aging, tear and puncture

* Resistance to acid and alkali


  Contact Now
Product Details

Product Details

The woven geotextile is produced via virgin polypropylene fiber ,is made of as a minimum two rows of parallel yarns(or tape yarn),the use of unique weaving machines and technologies to weave the warps and wefts into textile form with diverse thickness and compactness in keeping with utilization stages.


In preferred,woven geotextile is with distinctly mild in weight,robust tensile energy,smaller elongation in addition to super balance. our polypropylene woven geotextile is fairly light in weight, robust tensile power, smaller elongation in addition to wonderful balance. it's miles broadly used in roads, pavements, railroads, systems and water conservancy mission, and so on.

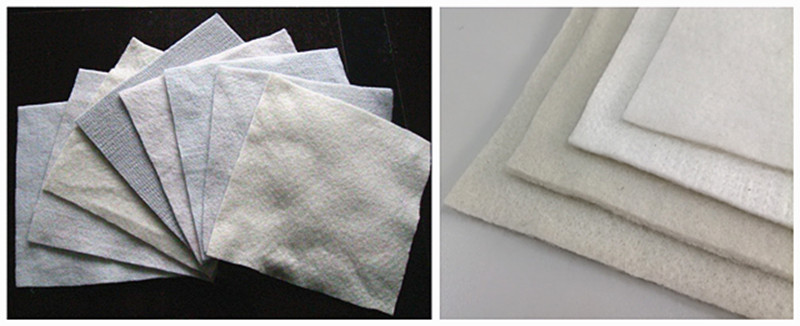

Woven Geotextile to use.jpg


Parameter

Properties

20-15

30-22

40-28

50-35

60-42

80-50

100-70

Break  Strength

at MD

KN/m

20

30

40

50

60

80

100

Break Strength at CD

KN/m

15

22

28

35

42

56

70

CBR Burst Strength ≥

KN

1.6

2.4

3.2

4

4.8

6

7.5

Trapezoidal

Tear Strength ≥

KN

0.2

0.27

0.34

0.41

0.48

0.6

0.72

O950

Sieve Size O950

mm

0.08-0.5

Vertical Permeability Coefficient

cm/s

(1.0-9.9) x (0.1-0.001)

Mass Weight

G/m²

120

160

200

240

280

340

400

Variation

%

±10


Feature

· High tensile strength

· UV Resistant

· Low elongation

· Resists Biological Degradation

· Resistant to ultraviolet degradation

· Chemically Inert

· Strengthens and Supports Aggregates

· Increases performance life of the road

· Withstands tough construction loading

· Ease of installation

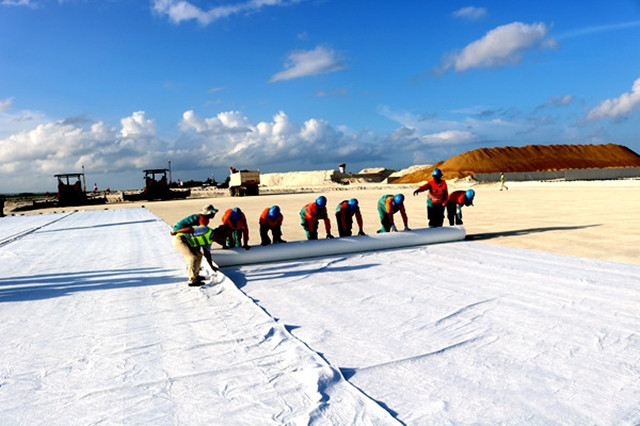

Woven Geotextile To Use.jpg


Application

· Water conservancy project such as river bank, dam protection, diversion irrigation; reservoir seepage and consolidation project, Filling sandbags.

· Road Project like soft foundation treatment, slope protection, road surface anti-reflection structure layer, drainage system, greenbelt.

· Railway project like railway foundation reinforcement, embankment slope strengthen layer and tunnel lining layer.


Woven Geotextile To Use.jpg
