* High tensile strength
* Excellent water permeability and filtration
* Good resistance to aging, tear and puncture
* Resistance to acid and alkali
Product Details
The woven geotextile is produced by way of virgin polypropylene fiber ,is product of as a minimum two rows of parallel yarns(or tape yarn),the usage of one of a kind weaving machines and technology to weave the warps and wefts into textile shape with various thickness and compactness in keeping with usage degrees.
In wellknown,woven geotextile is with enormously mild in weight,robust tensile electricity,smaller elongation in addition to outstanding stability. our polypropylene woven geotextile is exceptionally light in weight, strong tensile energy, smaller elongation as well as exceptional stability. it is extensively utilized in roads, pavements, railroads, structures and water conservancy venture, and many others.
Parameter
Properties | 20-15 | 30-22 | 40-28 | 50-35 | 60-42 | 80-50 | 100-70 | ||
Break Strength at MD | KN/m | 20 | 30 | 40 | 50 | 60 | 80 | 100 | |
Break Strength at CD | KN/m | 15 | 22 | 28 | 35 | 42 | 56 | 70 | |
CBR Burst Strength ≥ | KN | 1.6 | 2.4 | 3.2 | 4 | 4.8 | 6 | 7.5 | |
Trapezoidal Tear Strength ≥ | KN | 0.2 | 0.27 | 0.34 | 0.41 | 0.48 | 0.6 | 0.72 | |
O950 Sieve Size O950 | mm | 0.08-0.5 | |||||||
Vertical Permeability Coefficient | cm/s | (1.0-9.9) x (0.1-0.001) | |||||||
Mass Weight | G/m² | 120 | 160 | 200 | 240 | 280 | 340 | 400 | |
Variation | % | ±10 |
Feature
· High tensile strength
· UV Resistant
· Low elongation
· Resists Biological Degradation
· Resistant to ultraviolet degradation
· Chemically Inert
· Strengthens and Supports Aggregates
· Increases performance life of the road
· Withstands tough construction loading
· Ease of installation
Application

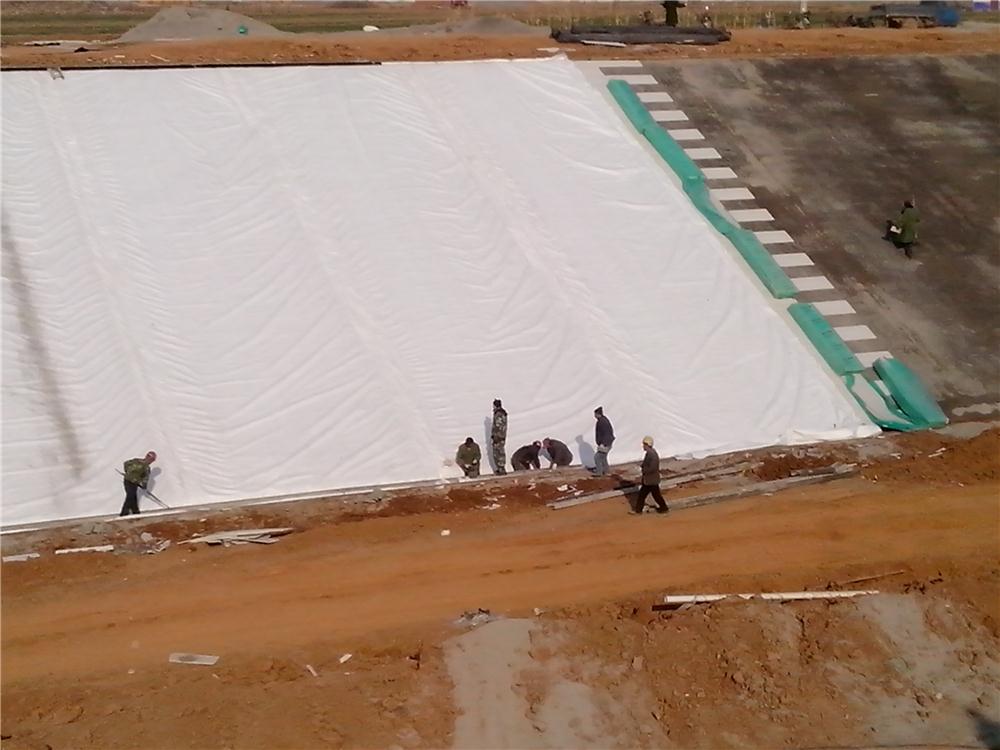

· Water conservancy project such as river bank, dam protection, diversion irrigation; reservoir seepage and consolidation project, Filling sandbags.

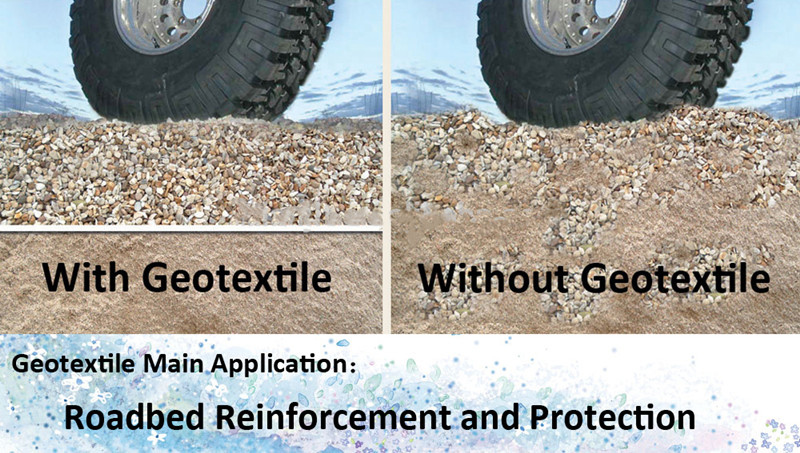

· Road Project like soft foundation treatment, slope protection, road surface anti-reflection structure layer, drainage system, greenbelt.
· Railway project like railway foundation reinforcement, embankment slope strengthen layer and tunnel lining layer.
