High Tensile Strength
Good for slope protection
Flexible and durable
UV resistance
Product information
3D Reinforcement Mats Slope Greening Vegetative Blanket / 3D Mat of Soil

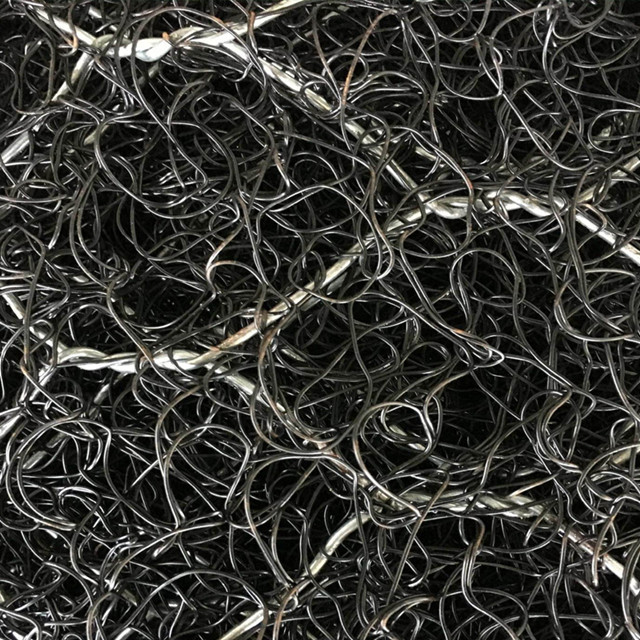

The strengthened geomat is pp mesh mat composited with twine mesh, that is galvanized in case of erosion manage.
The shape permits enough location for maintaining the soil and grass growing.
it's miles malleable to suite the shape changing, and additionally clean to install.
It is able to be widely used to road mattress, rail way, slope protection, beach protection & erosion manipulate and channel.
Parameter
Reinforce layer tech data | Material | Unit | pp | pp | Standard |
Weight | g/m2 | 500±50 | 500±50 | EN ISO 965 | |
Melting Point | •c | 150 | 150 | — | |
Density | g/cm5 | 0.91 | 0.91 | 一 | |
Mat wire diameter | mm | 0.55±5% | 0.55±5% | EN ISO 9863 | |
Open index | % | >90 | >90 | — | |
Mat tensile strength | Kn/m | 1.6 | 1.6 | EN ISO 10319 | |
uv | 5OOhours | ≥80% | ≥80% | ASTM D 4533 | |
Hot dipped galvanized wire mesh | |||||
Wire mesh | Mesh size | cm | 6*8 | 6*8 | — |
Steel wire diameter | mm | 22 | 2.7 | EN 10223-3 | |
Galfan weight | g/m2 | & 230 | M230 | EN 10244-2 | |
Reinforce side slop protect and erosion control mat | Breaking tensile strength | Kn/m | ≥35 | ≥50 | EN ISO 10319 |
Peel strength | N/cm | ≥6 | ≥46 | EN ISO 10319 | |
CBR punch strength | N | ≥250 | ≥250 | ASTM D 6421 | |
Thickness (2KPa) | mm | 12 | 12 | EN 964 | |
Water flow | /(mxs) | 06 (200kpa) | 0 6 (200kpa) | EN ISO 12958 | |
Tc<al weight per m2 | g/m2 | 1680±200 | 3000±500 | EN ISO 9684 | |
Color | — | Black, green, any color | |||
Roll Length | m | 2 | |||
Roll Width | m | 50 |
Feature
* High Tear Strength
* Flexible and durable
* Excellent Creep Resistance
* UV resistance
* Cost effective
* Increased pull-out resistance and compound strength
Application

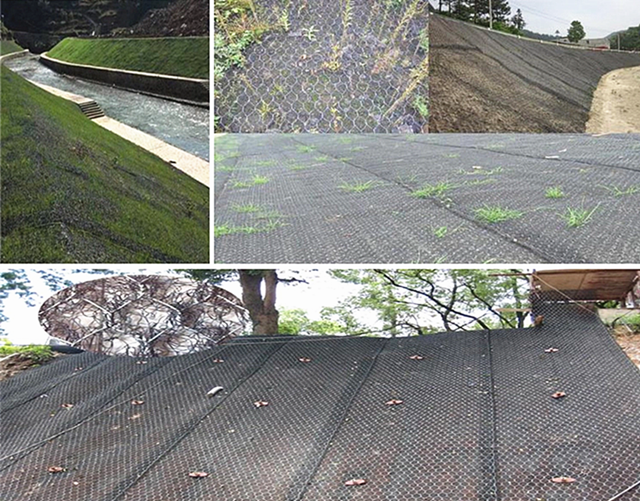

It can be widely used to Road bed, Rail way, Slope protection, Sea coast protection & erosion control and channel.
