High Tensile Strength
Good for slope protection
Flexible and durable
UV resistance
Product information

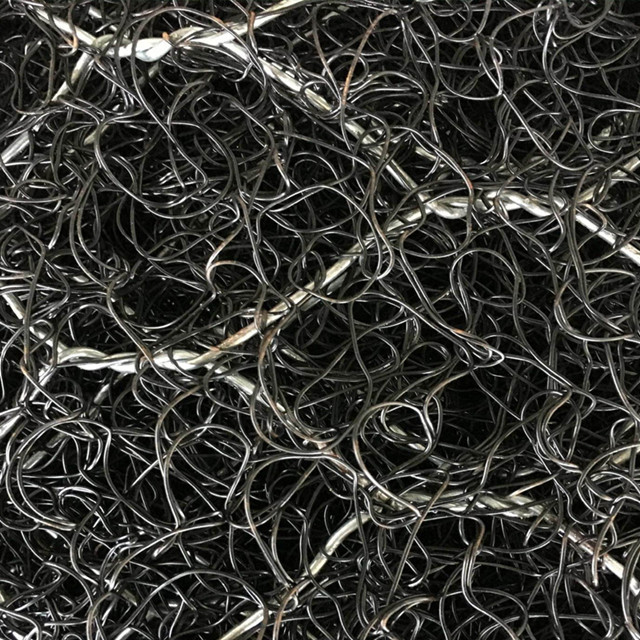

3D Turf Reinforcement Mats are pp mesh mat composited with twine mesh, that is galvanized in case of erosion manipulate.
The structure lets in enough area for maintaining the soil and grass growing. it's far malleable to suite the structure converting,
and additionally smooth to put in.
It could be broadly used to street bed, rail way, slope protection, beach safety & erosion control and channel.
Parameter
Reinforce layer tech data | Material | Unit | pp | pp | Standard |
Weight | g/m2 | 500±50 | 500±50 | EN ISO 965 | |
Melting Point | •c | 150 | 150 | — | |
Density | g/cm5 | 0.91 | 0.91 | 一 | |
Mat wire diameter | mm | 0.55±5% | 0.55±5% | EN ISO 9863 | |
Open index | % | >90 | >90 | — | |
Mat tensile strength | Kn/m | 1.6 | 1.6 | EN ISO 10319 | |
uv | 5OOhours | ≥80% | ≥80% | ASTM D 4533 | |
Hot dipped galvanized wire mesh | |||||
Wire mesh | Mesh size | cm | 6*8 | 6*8 | — |
Steel wire diameter | mm | 22 | 2.7 | EN 10223-3 | |
Galfan weight | g/m2 | & 230 | M230 | EN 10244-2 | |
Reinforce side slop protect and erosion control mat | Breaking tensile strength | Kn/m | ≥35 | ≥50 | EN ISO 10319 |
Peel strength | N/cm | ≥6 | ≥46 | EN ISO 10319 | |
CBR punch strength | N | ≥250 | ≥250 | ASTM D 6421 | |
Thickness (2KPa) | mm | 12 | 12 | EN 964 | |
Water flow | /(mxs) | 06 (200kpa) | 0 6 (200kpa) | EN ISO 12958 | |
Tc<al weight per m2 | g/m2 | 1680±200 | 3000±500 | EN ISO 9684 | |
Color | — | Black, green, any color | |||
Roll Length | m | 2 | |||
Roll Width | m | 50 |
Feature
* High Tear Strength
* Flexible and durable
* Excellent Creep Resistance
* UV resistance
* Cost effective
* Increased pull-out resistance and compound strength
Application
It can be widely used to Road bed, Rail way, Slope protection, Sea coast protection & erosion control and channel.
