High Quality Three-dimensional Reinforced Geomat Enkamat 3D Geomat Wire Mesh Black Mats

High Tensile Strength

Good for slope protection

Flexible and durable

UV resistance

Contact Now

Product Details

Product information

High Quality Three-dimensional Reinforced Geomat Enkamat 3D Geomat Wire Mesh Black Mats

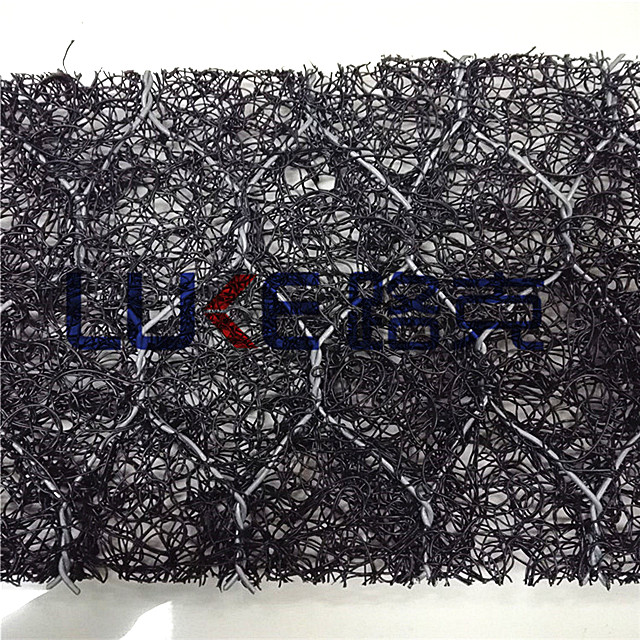

Three-dimensional Reinforced Geomat Enkamat 3D Geomat Wire Mesh is pp mesh mat composited with twine mesh,

this is galvanized in case of abrasion manipulate.

The form allows enough location for keeping the soil and grass growing. it's far malleable to suite the shape converting,

and additionally clean to put in.

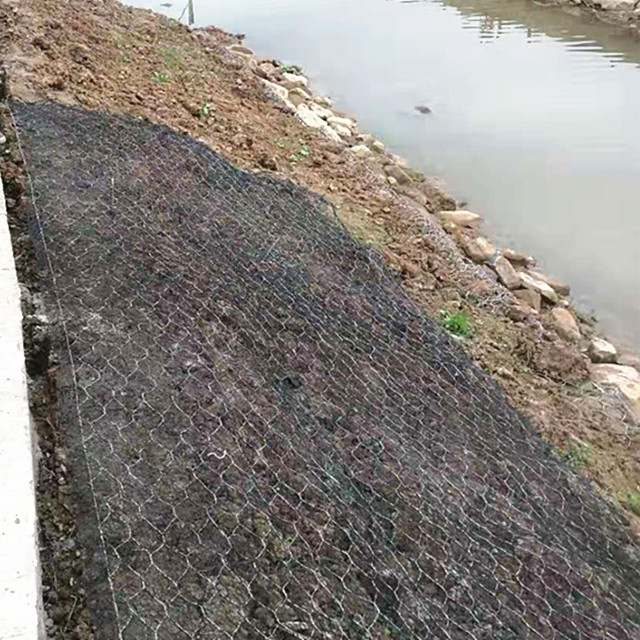

It can be extensively used to avenue bed, rail manner, slope protection, seaside protection & erosion control and channel.

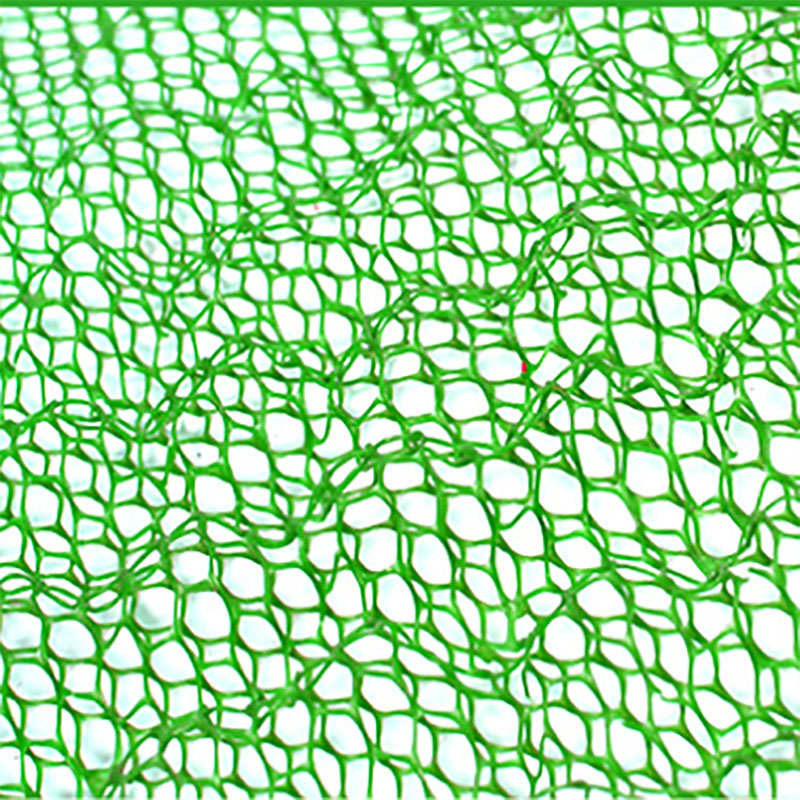

Reinforced Geomat Details

Parameter

Reinforce layer tech data	Material	Unit	pp	pp	Standard
	Weight	g/m²	500±50	500±50	EN ISO 965
	Melting Point	•c	150	150	—
	Density	g/cm⁵	0.91	0.91	一
	Mat wire diameter	mm	0.55±5%	0.55±5%	EN ISO 9863
	Open index	%	>90	>90	—
	Mat tensile strength	Kn/m	1.6	1.6	EN ISO 10319
	uv	5OOhours	≥80%	≥80%	ASTM D 4533
Hot dipped galvanized wire mesh
Wire mesh	Mesh size	cm	6*8	6*8	—
	Steel wire diameter	mm	22	2.7	EN 10223-3
	Galfan weight	g/m2	& 230	M230	EN 10244-2

Reinforce side slop protect and erosion control mat	Breaking tensile strength	Kn/m	≥35	≥50	EN ISO 10319
	Peel strength	N/cm	≥6	≥46	EN ISO 10319
	CBR punch strength	N	≥250	≥250	ASTM D 6421
	Thickness (2KPa)	mm	12	12	EN 964
	Water flow	/（mxs）	06 (200kpa)	0 6 (200kpa)	EN ISO 12958
	Tc<al weight per m2	g/m2	1680±200	3000±500	EN ISO 9684
	Color	—	Black, green, any color

Roll Length		m	2
Roll Width		m	50
