Black Pond Liner for Geomembrane

Good Flexibility

Antioxidant,Anti-aging and UV Resistance

Excellent Environmental Stress Cracking Resistance Property

High Tensile Strength and Elongation


  Contact Now
Product Details

Product details

- manufacturing unit rate geomembrane

- free pattern

- export geotechnical substances for 8+ years

Our hdpe geomembrane sheet is manufactured from 100% uncooked material hdpe that is imported from center east.

After testing, the pleasant meets the astm standard gm gri 13 completely.

We verify : a hundred% virgin hdpe + 2~3% carbon black + antioxidant, anti-growing old and uv resistance aspect.

We supply : advanced equipment + 24 hours manufacturing + take a look at every roll

+ popular exporting bundle.

We endorse : zero.5 mm or zero.seventy five mm-thickness is used for pond liner

1.5 mm-thickness is used for landfill

2.zero mm-thickness is used for dam liner.



Black Pond Liner for geomembrane


Parameter


 Test Properties

unit

Test Method

 Test Frequency

LKMS75

LKMS10

LKMS15

LKMS20

LKMS30













Mechanical Properties

 Thickness

mm

D5199

Per roll

0.75

1.00

1.50

2.00

3.00

 Density

g/cc

D1505/D792

90,000kg

         0.94



Tensile properties

Yield strength

  break strength

 yield elongation

 break elongation





KN/m

KN/m

%

%



D6693

Type IV





9,000kg





11

20

12

700





15

27

12

700





22

40

12

700





29

53

12

700





44

80

12

700

 Tear Resistance

N

D1004

20,000kg

93

125

187

249

374

 Puncture Resistance

N

D4833

20,000kg

240

320

480

640

960



Stress Crack Resistance

hr.

D5397

Per GRI GM-10

         300hr

Carbon Black Content

%

D4218

9,000kg

       2.0-3.0%











 Reference Properties

 Oxidative Induction Time

(a) standard OIT

(b) High Pressure OIT



min



D3895

D5885



90,000kg



        100min

        400min

oven Aging at 85℃ Retained after 90 days

(a) standard OIT

(b) High Pressure OIT



%



D5712

D3895

D5885

Per each formulation





50%

          80%

 UV Resistance

High Pressure OIT Retrained after 1600h



%



D5885

Per each formulation



          50%





Roll Size

 Roll width

m


7

7

7

7

7

 Roll Length

m


280

210

140

105

70

 Size Stability

%

2%



Feature

1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance

4) Good adaptability to high and low temperature, non-toxicity, long service life

5) Good waterproof, drainage, anti-seepage and damp proof effects

6) Complete width and thickness specifications, low cost and easy installation.

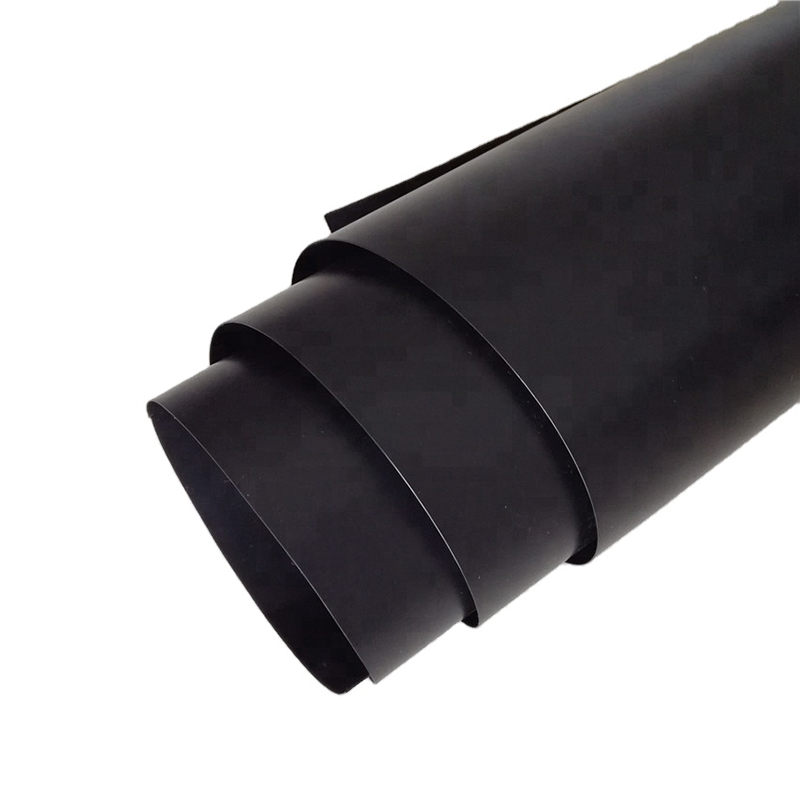

Black Pond Liner for geomembrane.jpg


Application

1) Environmental protection, sanitation

(such as solid waste landfills, sewage treatment plants, power plants Chi-conditioning,industrial, hospital solid waste, etc)
2) Water

(such as rivers, lakes and reservoirs of the anti-dam, plugging, reinforcement of the canal seepage, the vertical wall of the heart, slope protection, etc.)
3) Municipal Engineering

(subway, on the ground floor of the building, planted roof, the roof garden of anti-seepage, sewage pipes lining, etc.)

4) Landscape

(man-made lake, river, reservoir, golf courses reservoirs of the substrate, slope protection, green lawn of the waterproof moisture,  etc.)
5) Petrochemical

(chemical plants, oil refineries, gas storage tanks of the anti-chemical reaction tanks, sedimentation tanks of the lining, etc.)
6) Mining

(washing and pool heap leaching, the ash-field, dissolved, precipitation, the yard, the tailings seepage substrates etc.)


Black Pond Liner for geomembrane.jpg
