Steel Plastic Geogrids

High Tensile Strength and Low Elongation

Excellent soil stabilization

Good sub-base reinforcement

Anti-corrosion

Easy to install


  Contact Now
Product Details

Product Details

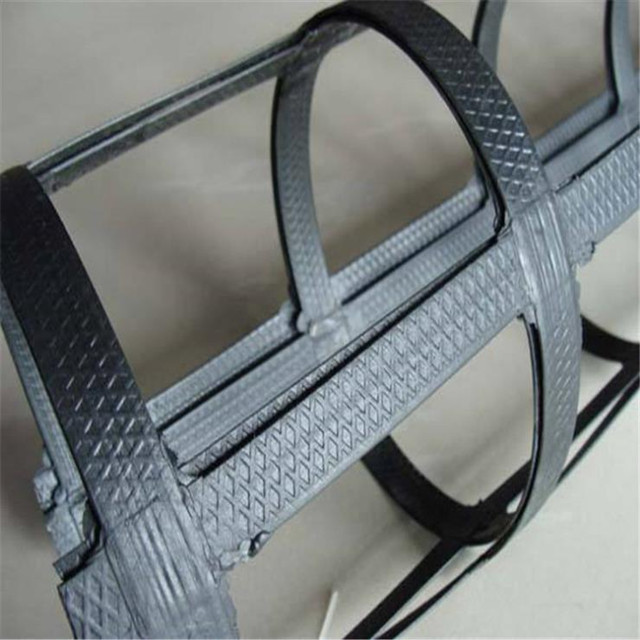

Steel plastic geogrid is characterized via using high corrosion resistance and fantastic placed on resistance. it is fabricated from immoderate electricity metal covered with virgin polyethylene or high density polyethylene through way of precise ultrasonic welding generation.

Steel plastic geogrid reinforcement is weld into longitudinal and latitudinal staggered intervals inside the same planner, different wire mesh diameter and root quantity can be fabricated in line with challenge reinforcement strain requirement.

Metal plastic geogrid reinforcement can correctly complements the bearing ability of basis and prevents the soil from lateral displacement due to its high friction coefficient and the bearing capability. it is also conducive to the spread of the top a part of the base load and uniformly allotted to the underlying mild soil, so metallic plastic geogrid reinforcement may additionally even take in the earthquake energy.


Steel Plastic Geogrids.jpg



Parameter

Item

LKSG
30-30

LKSG
40-40

LKSG
50-50

LKSG
60-60

LKSG
80-80

LKSG
100-100

LKSG
150-150

Tensile
Strength kN/m

Longitudinal

≥30

≥40

≥50

≥60

≥80

≥100

≥150

Tranaveres

≥30

≥40

≥50

≥60

≥80

≥100

≥150

Elongation Rate(%)

Longitudinal

≤2

Tranaveres

≤2

Strength at 1%
elongation (kN/m)

Longitudinal

≥20

≥32

≥40

≥48

≥63

≥81

≥125

Tranaveres

≥20

≥32

≥40

≥48

≥63

≥81

≥125

Limit peel force welded
bonded point N


≥100

≥100

≥100

≥100

≥100

≥100

≥100


Feature

*High tensile strength and low distort and creep deformation

* Improving bearing capacity of road bed

*Anti-corrosion and extending the project life
* Shortening construction period,reducing cost.

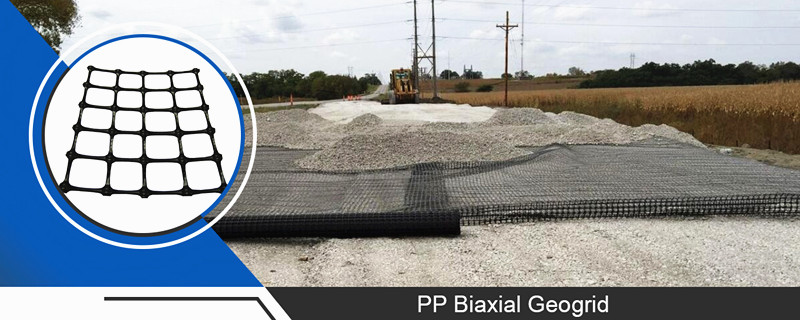

Steel Plastic Geogrids.jpg


Application

· Soil stabilization for roads, airport, embankment

· Railway ballast reinforcement over soft foundations

· Base reinforcement and soil stabilization

· Slope protection

· Foundation support

· Heavy duty pavements
