Steel Plastic Geogrid for Sale

High Tensile Strength and Low Elongation

Excellent soil stabilization

Good sub-base reinforcement

Anti-corrosion

Easy to install


  Contact Now
Product Details

Product Details

Steel plastic geogrid is characterized by high corrosion resistance and excellent wear resistance. It is made of high strength steel coated with virgin polyethylene or high density polyethylene by special ultrasonic welding technology.

Steel plastic Geogrid reinforcement is weld into longitudinal and latitudinal staggered intervals in the same planner, different wire mesh diameter and root number can be fabricated according to project reinforcement force requirement.

Steel plastic geogrid reinforcement can effectively enhances the bearing capacity of foundation and prevents the soil from lateral displacement due to its high friction coefficient and the bearing capacity. It is also conducive to the spread of the upper part of the base load and uniformly distributed to the underlying soft soil, so steel plastic geogrid reinforcement can even absorb the earthquake energy.


Steel Plastic Geogrid for Sale


Parameter

Item

LKSG
30-30

LKSG
40-40

LKSG
50-50

LKSG
60-60

LKSG
80-80

LKSG
100-100

LKSG
150-150

Tensile
Strength kN/m

Longitudinal

≥30

≥40

≥50

≥60

≥80

≥100

≥150

Tranaveres

≥30

≥40

≥50

≥60

≥80

≥100

≥150

Elongation Rate(%)

Longitudinal

≤2

Tranaveres

≤2

Strength at 1%
elongation (kN/m)

Longitudinal

≥20

≥32

≥40

≥48

≥63

≥81

≥125

Tranaveres

≥20

≥32

≥40

≥48

≥63

≥81

≥125

Limit peel force welded
bonded point N


≥100

≥100

≥100

≥100

≥100

≥100

≥100


Feature

*High tensile strength and low distort and creep deformation

* Improving bearing capacity of road bed

*Anti-corrosion and extending the project life
* Shortening construction period,reducing cost.

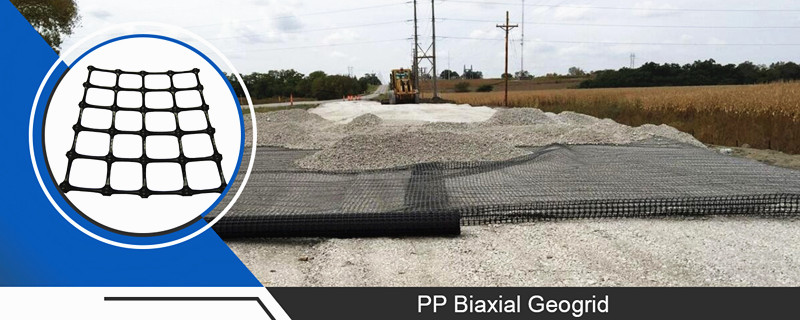

Steel Plastic Geogrid for Sale.jpg


Application

· Soil stabilization for roads, airport, embankment

· Railway ballast reinforcement over soft foundations

· Base reinforcement and soil stabilization

· Slope protection

· Foundation support

· Heavy duty pavements

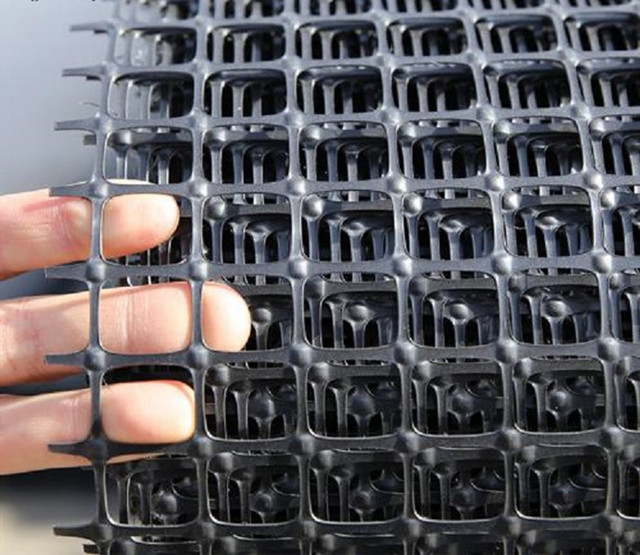

Steel Plastic Geogrid for Sale.jpg
