Drainage and Storage Board

High compression strength



Good Waterproofing and Drainage



Have Good Vertical Drainage Properties


  Contact Now
Product Details

Product Details

Storage and drainage board is made of PP material,an new geotechnical material which storage a set of water drainage,water storage function,and also have the water drainage,water storage,breathable,moisture,thermal insulation,prevent multiple functions such as plant roots destruction for concrete structures.

Used combination with geotextile can avoid the fine particle plugging water storage tank and drainage channel,keep clear of drainage and air circulation,which is widely used in garden greening projects.

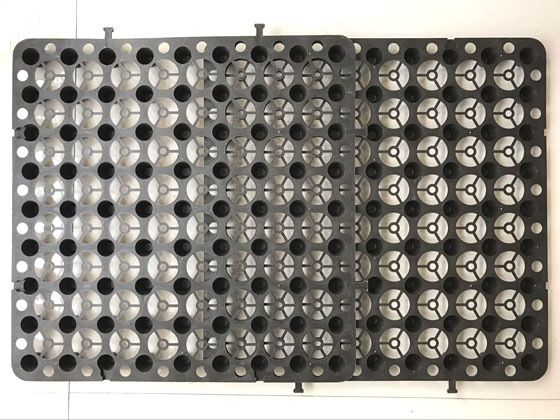

Drainage and Storage Board.jpg


Parameter

Model

Material

Drain height(mm)

Compressive strength(Mpa)

Specification(mm)

Flow 5cm(L/S)

H20

HDPP

20

350

500*500

2.5

H25

HDPP

25

350

500*500

2.5

H30

HDPP

30

350

500*500

2.5


Feature

Reduces surface temperature around building

Unique and easy to use interlocking system

Strong structure can support heavy loads

High compression strength

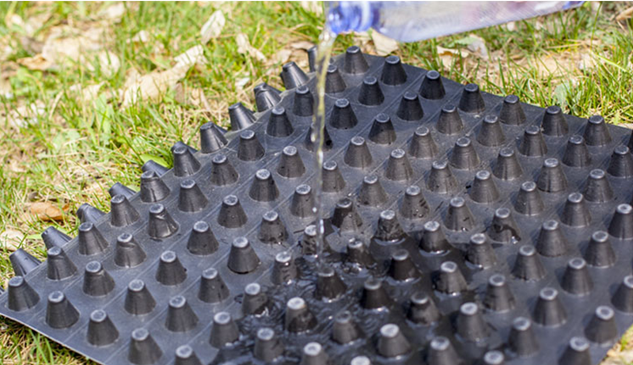

Drainage and Storage Board.png


Application

Landscape engineering:garage top greening,roof garden,football field,golf course,beach project.

Municipal engineering:road base,subway,tunnel,landfill.

Construction engineering:upper or bottom layer of building foundation,basement wall,bedding filtration and heat insulation.

Traffic engineering:highway,railway basement,dam and slope.
