Reinforced Geomat

High Tensile Strength

Good for slope protection

Flexible and durable

UV resistance

Contact Now

Product Details

Product Details

The Reinforced Geomat is PP mesh mat composited with wire mesh, which is galvanized in case of erosion control.

The structure allows enough space for keeping the soil and grass growing. It is malleable to suite the structure changing, and also easy to install.

It can be widely used to Road bed, Rail way, Slope protection, Sea coast protection & erosion control and Channel.

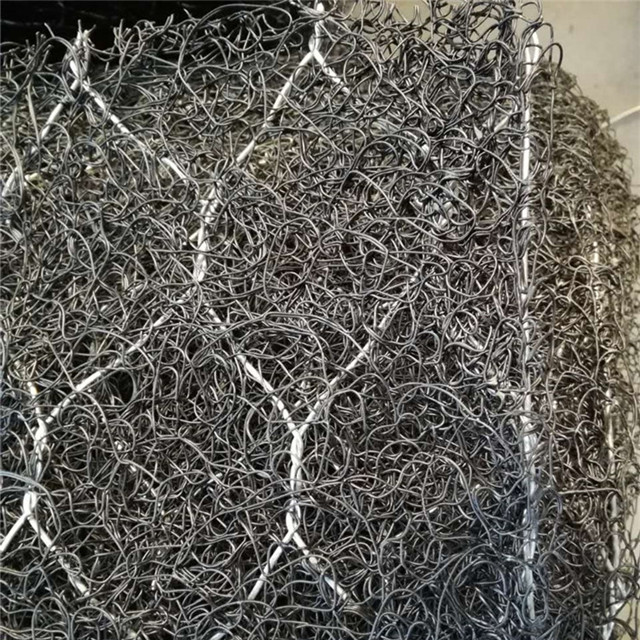

Reinforced Geomat.jpg

Parameter

Reinforce layer tech data	Material	Unit	pp	pp	Standard
	Weight	g/m²	500±50	500±50	EN ISO 965
	Melting Point	•c	150	150	—
	Density	g/cm⁵	0.91	0.91	一
	Mat wire diameter	mm	0.55±5%	0.55±5%	EN ISO 9863
	Open index	%	>90	>90	—
	Mat tensile strength	Kn/m	1.6	1.6	EN ISO 10319
	uv	5OOhours	≥80%	≥80%	ASTM D 4533
Hot dipped galvanized wire mesh
Wire mesh	Mesh size	cm	6*8	6*8	—
	Steel wire diameter	mm	22	2.7	EN 10223-3
	Galfan weight	g/m2	& 230	M230	EN 10244-2

Reinforce side slop protect and erosion control mat	Breaking tensile strength	Kn/m	≥35	≥50	EN ISO 10319
	Peel strength	N/cm	≥6	≥46	EN ISO 10319
	CBR punch strength	N	≥250	≥250	ASTM D 6421
	Thickness (2KPa)	mm	12	12	EN 964
	Water flow	/（mxs）	06 (200kpa)	0 6 (200kpa)	EN ISO 12958
	Tc<al weight per m2	g/m2	1680±200	3000±500	EN ISO 9684
	Color	—	Black, green, any color

Roll Length		m	2
Roll Width		m	50
