High compression strength
Good Waterproofing and Drainage
Have Good Vertical Drainage Properties
Product Details

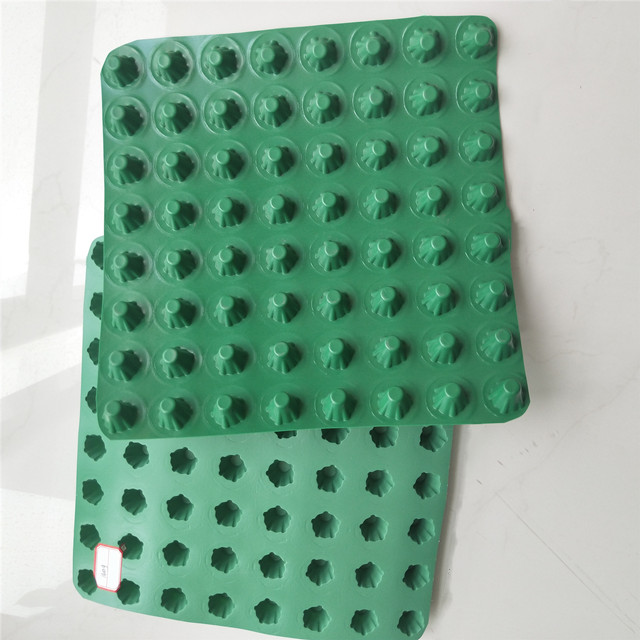

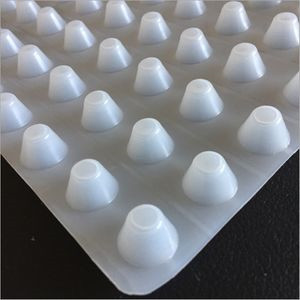

Dimple drain board is the usage of basis or blow molding technique to supply excessive density polyethylene (hdpe) geomembrane, pressed on geomembrane pressure after the particular craft the closed swelled the frustum of a cone shape, having a three-dimensional place and a few guide stiffness, liquid, gasoline can go with the flow excreted within its plate.
That is a latent many features substances, using this plate can be without trouble built out of the overhead layer, using overhead layer usual drainage, exhaust passage, at the equal time to apply the overhead layer reaches low noise, vibration isolation characteristic.
Drainage drain board can be drastically used within the overhead layer of roofing systems, roof planting, drainage safety constructing basement waterproofing device, and interior ground insulation moisture safety, street and rail tunnel drainage water and so forth.
Parameter
No | Model Name | LK-H08 | LK-H10 | LK-H12 | LK-H16 | LK-H20 | LK-H25 | LK-H30 |
1 | Material | HDPE | HDPE | HDPE | HDPE | HDPE | HDPE | HDPE |
2 | Drain height(mm) | 08 | 10 | 12 | 16 | 20 | 25 | 30 |
3 | Weight (g/m2) | 1000 | 1100 | 1200 | 1400 | 1500 | 1600 | 1800 |
4 | Board thickness (mm) | 0.7 | 0.8 | 0.9 | 1 | 1.1 | 1.1 | 1.2 |
5 | Tensile strength(N/100mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
6 | Anti- pression strength(Kpa) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
7 | Elongation rate (% >) | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
8 | Flow (cm3.s) ≥ | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
9 | CBR puncture strength N | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
Feature
1.Convenient construction, easy maintenance and economy.
2.Strong resistance to load and durability.
3.The water can be partially stored and the remaining water can be drained quickly.
4.It provides sufficient moisture and oxygen for plant production.
5.Light weight, the roof heat insulation function strong.
Application

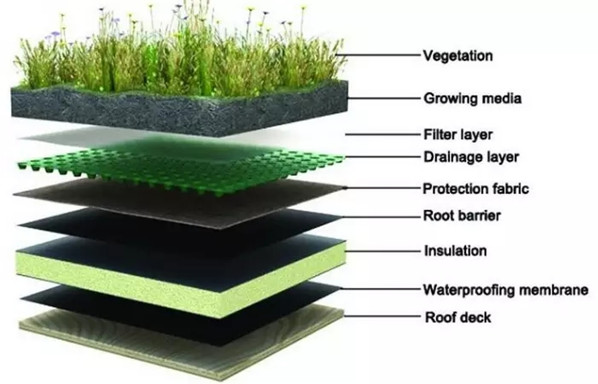

· Greening Projection: garage roof greening, roof garden, vertical greening, inclined roof greening, football field, golf course.
· Municipal Engineering: Airport, Road Subgrade, Subway, Tunnel, Landfill.
· Architectural Engineering: building foundation, basement wall and floor and roof, roof impervious layer and thermal insulation layer, etc.
· Water conservancy projection: water seepage prevention work of reservoir and artificial lake .
· Traffic engineering: roads, railway subgrade, dams and slope protection layers.
