Detail Plastic Board

High compression strength



Good Waterproofing and Drainage



Have Good Vertical Drainage Properties


  Contact Now
Product Details

Product Details

Dimple Drain board is the use of foundation or blow molding method to produce high density polyethylene (HDPE) geomembrane, pressed on geomembrane pressure after the special craft the closed swelled the frustum of a cone shape, having a three-dimensional space and some support stiffness, liquid, gas can flow excreted within its plate.

This is a latent many functions materials, the use of this plate can be easily constructed out of the overhead layer, using overhead layer formed drainage, exhaust passage, at the same time to use the overhead layer reaches low noise, vibration isolation function.

Drainage drain board can be widely used in the overhead layer of roofing systems, roof planting, drainage protection building basement waterproofing system, and interior floor insulation moisture protection, road and rail tunnel drainage water etc.

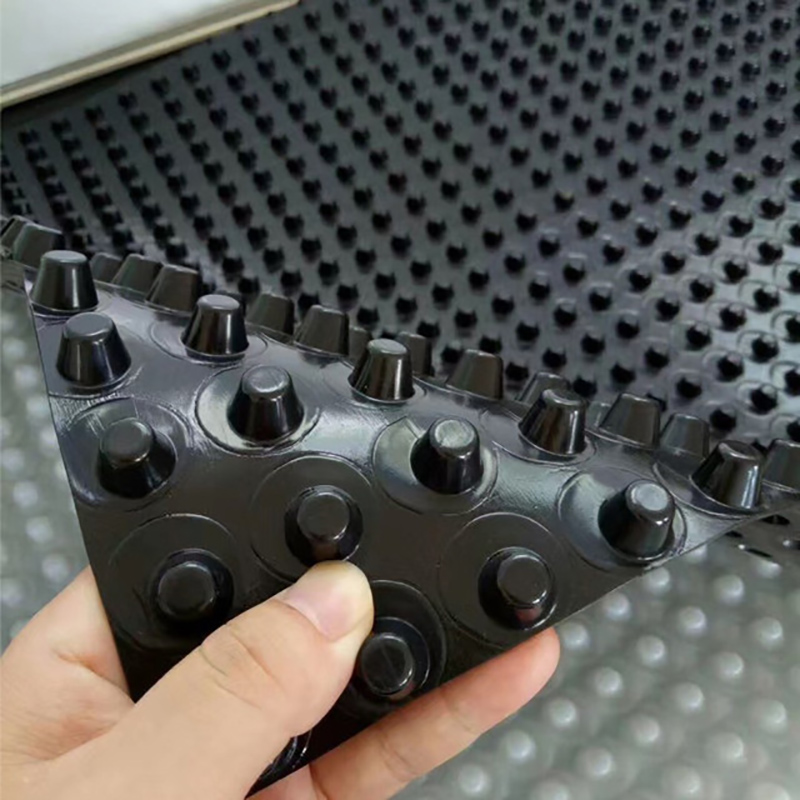

Detail Plastic Board.jpg


Parameter



No

Model

Name

LK-H08

LK-H10

LK-H12

LK-H16

LK-H20

LK-H25

LK-H30

1

Material

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

2

Drain height(mm)

08

10

12

16

20

25

30

3

Weight (g/m2)

1000

1100

1200

1400

1500

1600

1800

4

Board thickness (mm)

0.7

0.8

0.9

1

1.1

1.1

1.2

5

Tensile strength(N/100mm)

350

350

350

350

350

350

350

6

Anti- pression strength(Kpa)

300

300

300

300

300

300

300

7

Elongation rate (% >)

80

80

80

80

80

80

80

8

Flow (cm3.s) ≥

10

10

10

10

10

10

10

9

CBR puncture strength  N

350

350

350

350

350

350

350


 Feature

1.Convenient construction, easy maintenance and economy.

2.Strong resistance to load and durability.

3.The water can be partially stored and the remaining water can be drained quickly.

4.It provides sufficient moisture and oxygen for plant production.

5.Light weight, the roof heat insulation function strong.

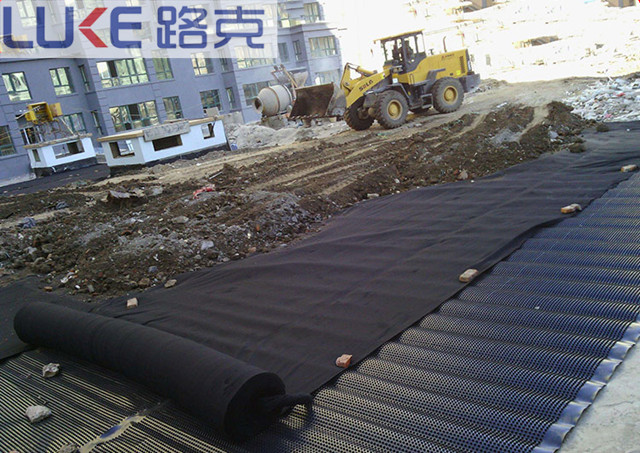

3D Composite Board.jpg



Application

· Greening Projection: garage roof greening, roof garden, vertical greening, inclined roof greening, football field, golf course.

· Municipal Engineering: Airport, Road Subgrade, Subway, Tunnel, Landfill.

· Architectural Engineering: building foundation, basement wall and floor and roof, roof impervious layer and thermal insulation layer, etc.

· Water conservancy projection: water seepage prevention work of reservoir and artificial lake .

· Traffic engineering: roads, railway subgrade, dams and slope protection layers.

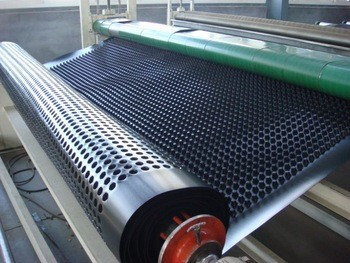

3D Composite Board.jpg
