Geocell Ground Grid HDPE Geocells

Geocell ground grid can permeable moisture

Soil maintenance and fixation/geocell erosion control

High welding point strength

Independent closed unit

Flexible and strong

Three-dimensional structure reinforcement

The grid size can be changed at will

The HDPE geocells can be freely matched with geotextile and three-dimensional vegetation network

Easy and fast connection


  Contact Now
Product Details

Geocell Ground Grid HDPE Geocells

What is Geocell Ground Grid HDPE Geocell?Geocell is a new type of geosynthetic material, also known as geocell grid network. It is a high-strength HDPE or PP sheet that is welded or braided by ultrasonic waves to form a honeycomb-like three-dimensional structure. When the geocell is developed, it can become a three-dimensional structure that can withstand great pressure and strain. In engineering, geoglespaces can be used to improve the bearing capacity and stability of soil, sand and gravel materials, and are widely used in various fields such as roads, railways, water conservancy, and construction.we can provid the geocell samples:maximum order quantity:1 square meter.


Geocell Ground Grid HDPE Geocells.jpg


Technical parameters of HDPE geocells:

Product type

Height(mm)

Welding Distance(mm)

Thickness(mm)

Tensile Strength of   Welding Points(N/cm)

Tensile Strength of   Commenction of Cells(N/cm)

Tensile Strength of Yield   of Each Sheet(Mpa)

Smooth and Not Perforated

50≤H≤250

330≤A≤1000

1.0~1.4

≥100

≥120

≥20

Smooth and Perforated

50≤H≤250

330≤A≤1000

1.0~1.4

≥100

≥120

≥20

Textured and Not   Perforated

50≤H≤250

330≤A≤1000

1.0~1.4

≥100

≥120

≥20

Textured and Perforated

50≤H≤250

330≤A≤1000

1.0~1.4

≥100

≥120

≥20

Remaiks:

This is a basic technical specification.

All the above technical parameters can be   reached according to customer’s requirement and other special standard can be   carried out by agreement or contract.

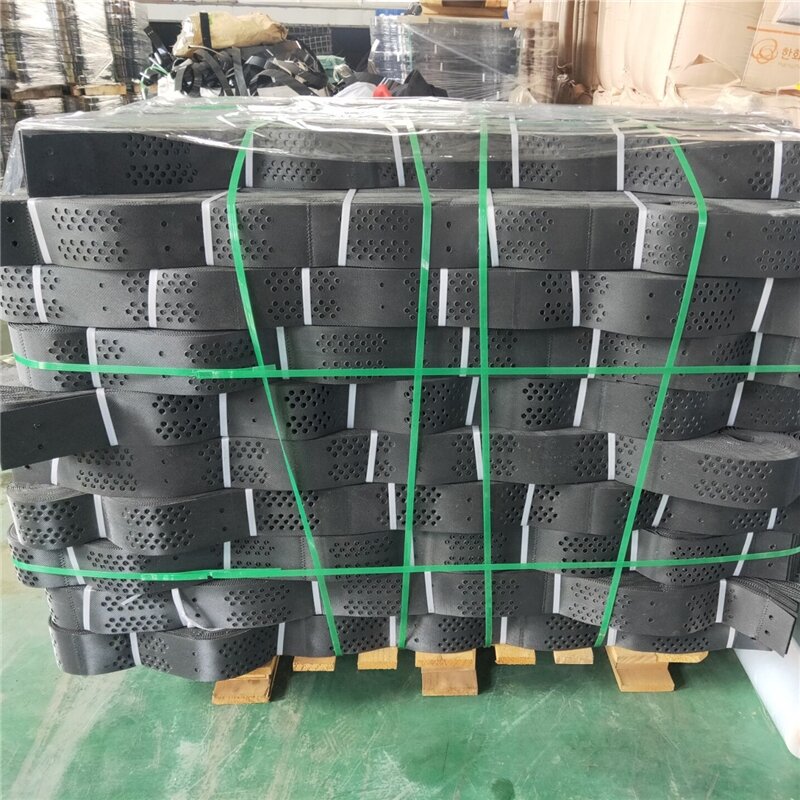

Geocell Ground Grid HDPE Geocells.jpeg


The main role of the geocells:

1. Improve the bearing capacity, advance geocell soil stabilization soulution

2. Sustainable slope stabilization with geocells: In the construction of roads and railways in mountainous areas, the slope is prone to landslide and collapse due to the complex terrain. Geocell can improve the stability of slope and prevent the occurrence of landslide and collapse. Its honeycomb structure design can effectively fix the soil and prevent soil sliding and loss.

3. High-strength textured geocelol for strong foundation,which can improve the bearing capacity and stability of the foundation and reduce the occurrence of settlement and uneven settlement.

4. Simple construction: Compared with the traditional sand cushion construction method, the construction of the HDPE geocell is more simple and fast. Its light weight and easy folding characteristics make transportation and installation very convenient. At the same time, the development area of the geocell is large, which can reduce the construction time and reduce the construction cost.

5. Material environmental protection: The main material of the geoglage room is high-strength HDPE or PP, which has good corrosion resistance, aging resistance and ultraviolet resistance, and will not pollute the environment and Reduced CO2 emissions.

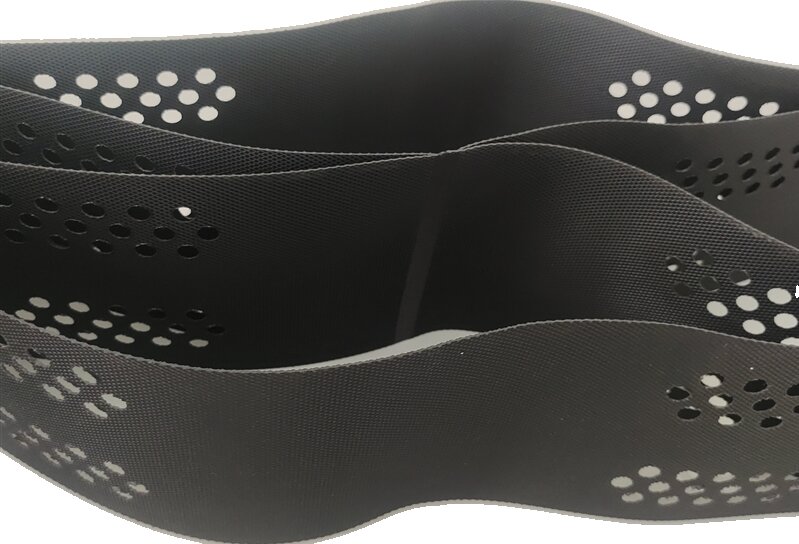

Geocell Ground Grid HDPE Geocells.jpg

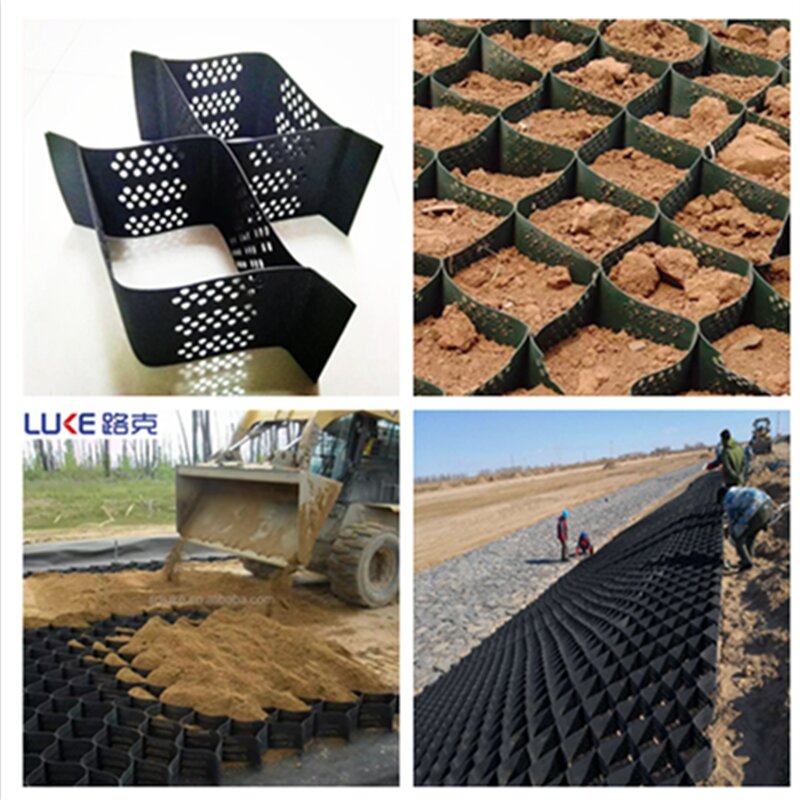

Application of HDPE geocells:

1、Geocells for highway construction and for railway construction: In highway or railway construction, geocells can be used to improve the bearing capacity and stability of the roadbed and prevent pavement cracking and subsidence.

2.、Hydraulic engineering: In hydraulic engineering, geocells can be used to improve the carrying capacity and stability of DAMS, reservoirs and other projects to prevent landslides and collapses. At the same time, the geocells can also be used for river bank protection, flood control and other fields.

3、Channel protection:ensure stability and protection of channels exposed to all types of erosive conditions.

4、Geocell for vegetated retainning walls:includes steep slopes,retainning walls,gravity walls and so on.


Geocell Ground Grid HDPE Geocells.jpg


About  our company(Shandong Luke composite Co;Ltd):

Our company aim is :quality first,reputation first!

Professional equipment,high quality HDPE geocells,first-class service is your best choice,welcome to our company!
