Geocell Honycomb Reinforcement HDPE Geocell

Geocell HDPE has good anti UV ,anti-aging,anti-corrosion properties and can be used for a long time.

Hot Selling HDPE geocell With Low Price.

Installation and infill of the geocell is very simpele and convenient.

Higher lateral restrict and prevent slippery.

The HDPE geocells can Enhance the bearing capacity of roadbed and scattered loads.

Flexible to fold during the transport and installation on construction site.

Contact Now

Product Details

Geocell Honycomb Reinforcement HDPE Geocell

Honeycomb geocell is a high intensity hdpe geocell with special structural design,which is composed of many small grids of the same size,similar to the shape of a honeycomb.It is usually made of polymer materials such as polypropylene and high-density polyethylene,and a variety of fillers such as soil and gravel can be filled between the small grids in the honeycomb geocell,thus forming a space with stable structure and certain supporting force.

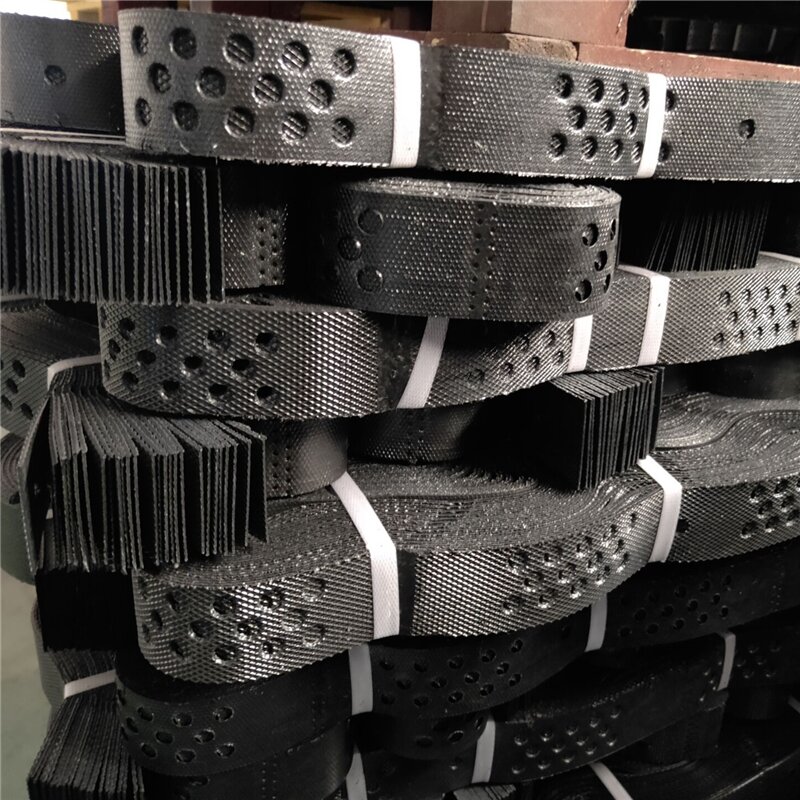

Geocell Honycomb Reinforcement HDPE Geocell.jpg

The advantages of HDPE geocells:

★High carrying capacity and good dynamic performance and high erosion ability

★High strength: The structure of the geocell is very strong and can withstand the challenges of high loads and long-term use.

★Water permeability: The holes on the surface of the geogrid can allow water to pass through, and the drainage channel is formed inside it to ensure the normal discharge of groundwater and avoid water accumulation.

★Corrosion resistance: The high-density polyethylene, polypropylene and other materials used in the geocell are not easy to be eroded by chemicals, so they are very durable.

★Light material, resistant to wear, stable in chemical properties, anti-aging, resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.

★High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance the supporting ability and scattered load function of roadbed.

Geocell Honycomb Reinforcement HDPE Geocell.jpeg

The parameters of reinforcement HDPE geocell:

Product type	Height(mm)	Welding Distance(mm)	Thickness(mm)	Tensile Strength of Welding Points(N/cm)	Tensile Strength of Commenction of Cells(N/cm)	Tensile Strength of Yield of Each Sheet(Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Smooth and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Textured and Perforated	50≤H≤250	330≤A≤1000	1.0~1.4	≥100	≥120	≥20
Remaiks: This is a basic technical specification. All the above technical parameters can be reached according to customer’s requirement and other special standard can be carried out by agreement or contract.

Geocell Honycomb Reinforcement HDPE Geocell.jpg

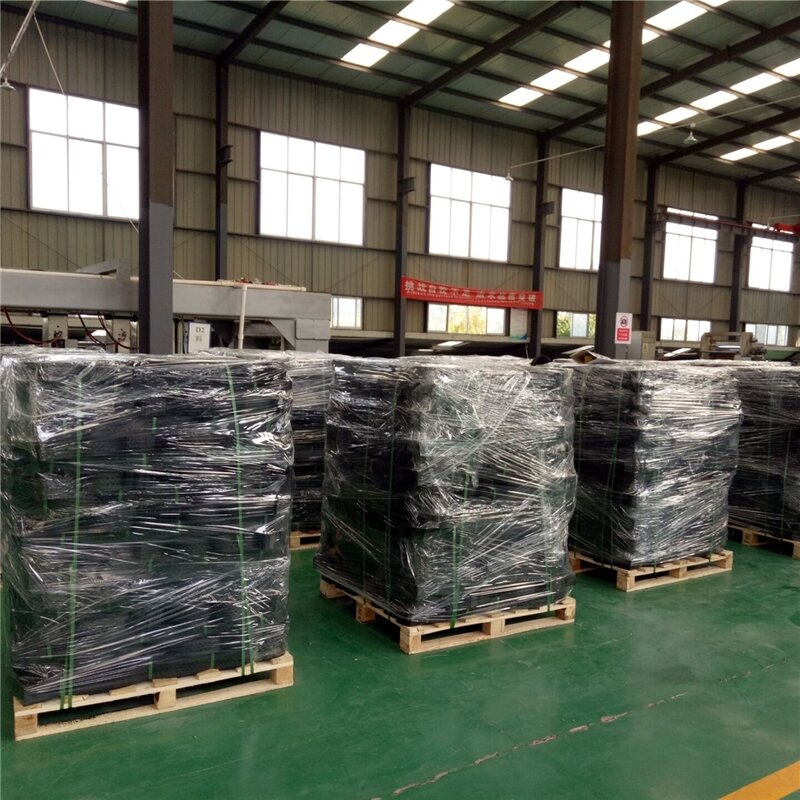

The packaging of Geocell For Road Reinforcement:

In the packaging of the geocells, it is need to choose packaging materials that can resist external pressure and wear resistance.

Geocell Honycomb Reinforcement HDPE Geocell.jpeg

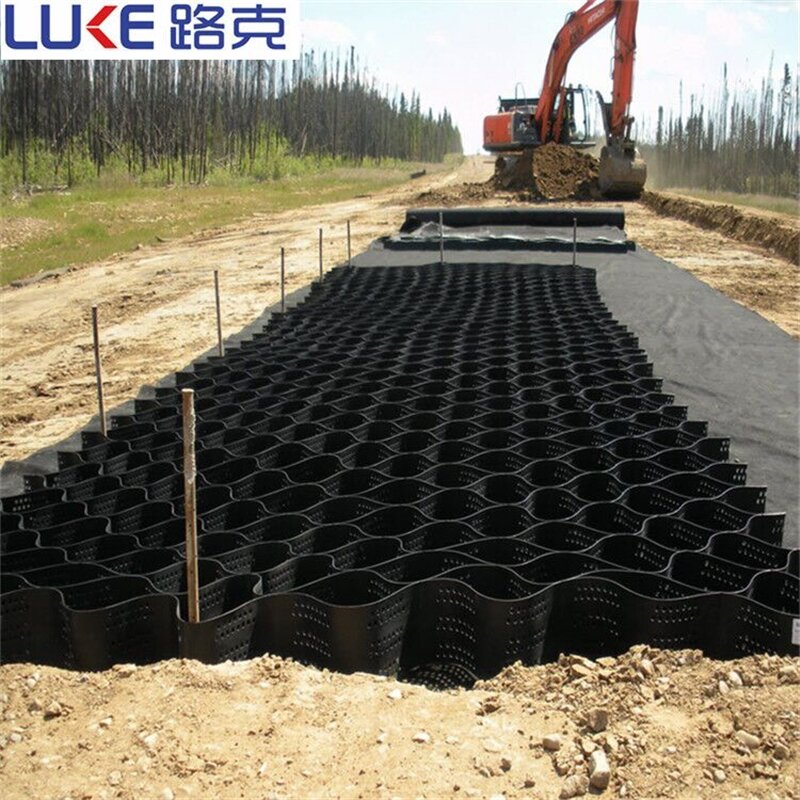

Application:

Honeycomb geocell has a wide range of application, simple construction, and plays an indispensable role in municipal construction, traffic engineering, water conservancy engineering, road construction and other fields, especially in civil engineering as filler materials, such as soft soil foundation reinforcement, road subgrade enhancement, retaining wall or slope construction, and so on.

In general, honeycomb HDPE geocell has a very important application value in civil engineering.

Geocell Honycomb Reinforcement HDPE Geocell.jpeg
