High Strength HDPE Geocell Reinforced Slope Protection

Geocell has high strength,good wear resistance and corrosion resistance.

HDPE geocell is mainly used to improve foundation bearing capacity and subgrade protection.

The geocells can be flexibly folded during transportation and easy to install.

The geocell has higher lateral restrict and prevent slippery.

Used to form a geocell soil stabilization system in soil.


  Contact Now
Product Details

High Strength HDPE Geocell Reinforced Slope Protection

A geocell is a three-dimensional honeycomb structure that can be filled with soil, gravel, or other materials to stabilize steep slopes and prevent erosion. They are made of high-density polyethylene (HDPE) and have an open honeycomb structure that allows them to adapt to the terrain.Its basic principle is to stretch into a network and fill loose materials such as soil, gravel and concrete to form a structure with high lateral limitation and anti-slip function to effectively enhance the bearing capacity of the roadbed and disperse the load.

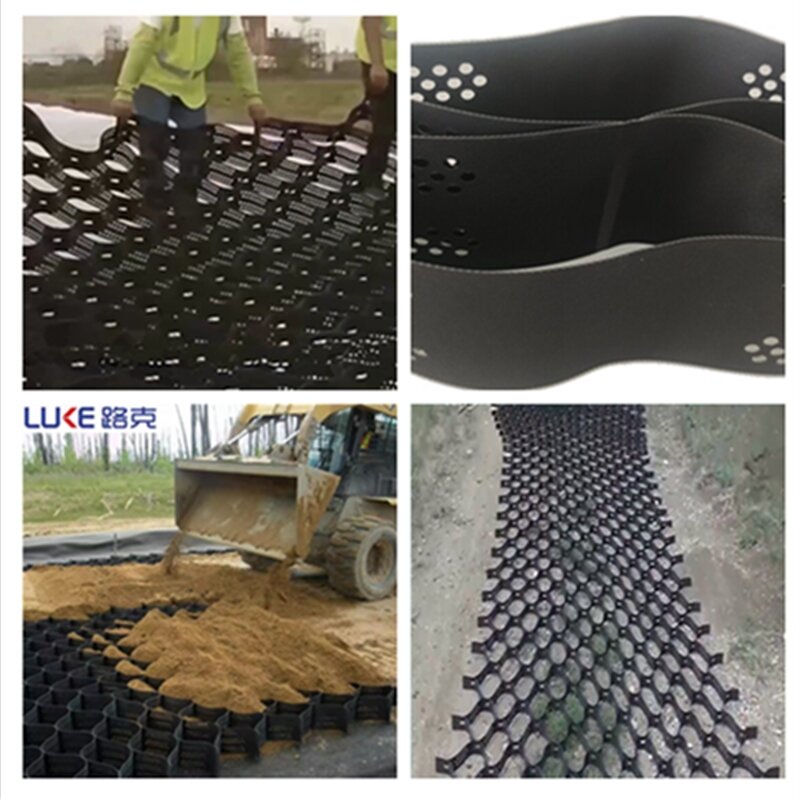

High Strength HDPE Geocell Reinforced Slope Protection.jpg


The HDPE geocell gravel grid roll geotextile for slope protection feature:

1、The geocell is very flexible, so it can be folded when transported. The construction can be stretched into a network, filled with soil, gravel, concrete and other loose materials, to form a strong lateral limit and large stiffness of the structure.

2、The HDPE geocell has good chemical and good aging resistance.Light material, wear resistance,acid and alkali resistance, suitable for different soil and desert soil conditions.

3、High side limit and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and disperse the load.

4、Change the geocell height, welding distance and other geometric dimensions to meet different engineering needs.

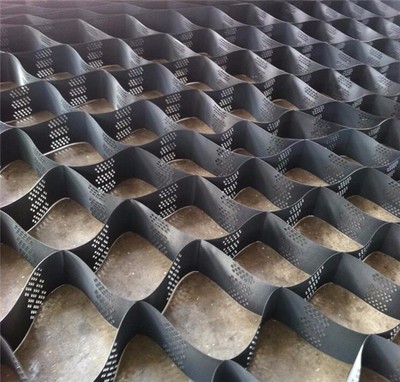

High Strength HDPE Geocell Reinforced Slope Protection.jpg


The technical parameter of HDPE geocell:

Product type

Height(mm)

Welding Distance(mm)

Thickness(mm)

Tensile Strength of Welding Points(N/cm)

Tensile Strength of Commenction of Cells(N/cm)

Tensile Strength of Yield of Each Sheet(Mpa)

Smooth and Not Perforated

50≤H≤250

330≤A≤1000

1.0~1.4

≥100

≥120

≥20

Smooth and Perforated

50≤H≤250

330≤A≤1000

1.0~1.4

≥100

≥120

≥20

Textured and Not Perforated

50≤H≤250

330≤A≤1000

1.0~1.4

≥100

≥120

≥20

Textured and Perforated

50≤H≤250

330≤A≤1000

1.0~1.4

≥100

≥120

≥20

Remaiks:

This is a basic   technical specification.

All the above   technical parameters can be reached according to customer’s requirement and   other special standard can be carried out by agreement or contract.

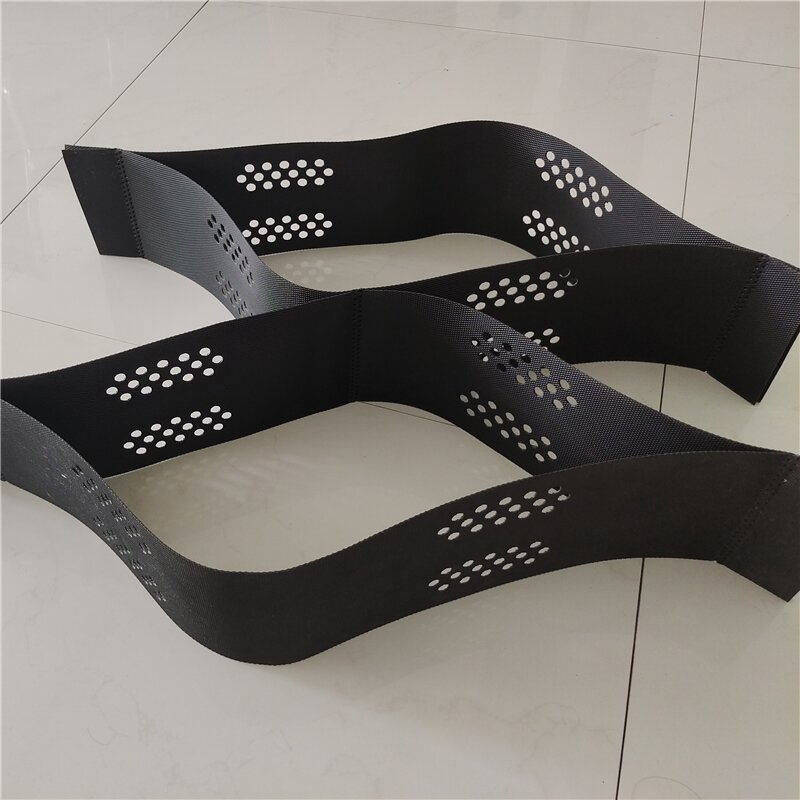

High Strength HDPE Geocell Reinforced Slope Protection.jpg


Application of high strength HDPE geocell reinforced slope protection:

★As a new type of advanced geocell soil stabilization solution,which has significant advantages and good application results.It can effectively improve the bearing capacity and stability of soil,and is suitable for various types of soil reinforcement.

★Slope protection:create a stable environment for longterm sustainability of embankment material.

Erosion Control Geocell :it can protect channel,ensure stability and protection of channels exposed to all types of erosive conditions.

Vegetated retainning:includes steep slopes,retaining walls,gravity walls and so on.

★Road support:solve problems on damaged roads,parking lot and yard.


High Strength HDPE Geocell Reinforced Slope Protection.jpg
