2.0mm HDPE Geomembrane Liner For Sewage Treatment

Geomembrane has excellent tensile strength and elongation at break.

2.0mm geomembrane has high tearing resistance.

It has good adaptability to high and low temperature.

Geomembrane HDPE is resistant to UV radiation.

It is puncture resistant.

Geomembrane shrimp pond liner/fish pond liner has good water proof performance,seepage and humidity resistance.

Contact Now

Product Details

2.0mm HDPE Geomembrane Liner For Sewage Treatment

Geomembrane is also called impervious membrane,waterproof plate and the use range is also very wide.HDPE Geomembrane is made of high density polyethylene (HDPE) with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes smooth geomembrane HDPE Geomembrane with excellent resistance to UV radiation and is suitable for exposed conditions.

We can provid samples:Maximum order quantity:1 square meter。

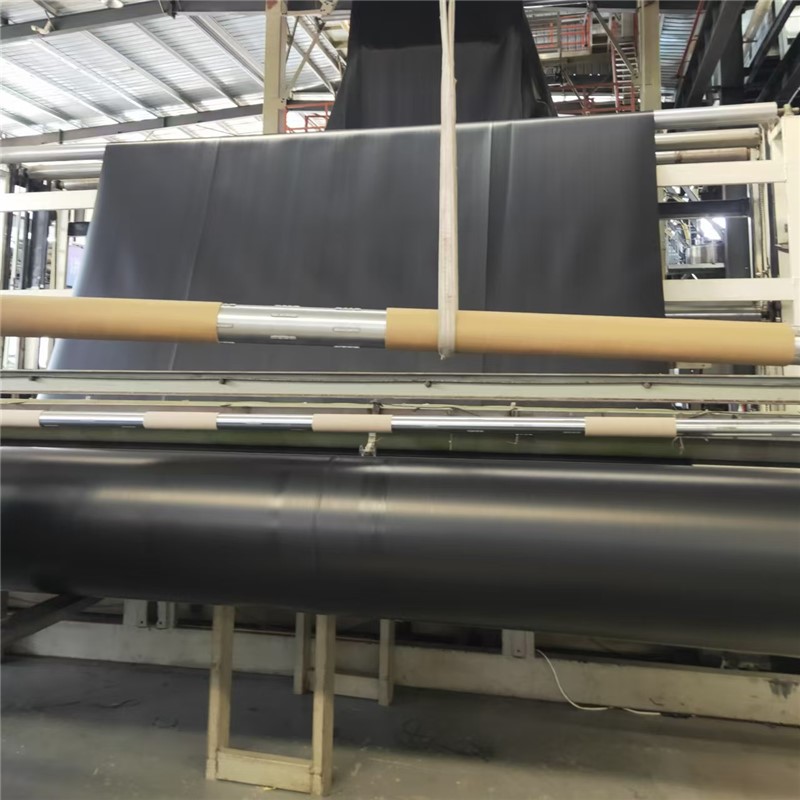

2.0mm HDPE Geomembrane Liner For Sewage Treatment.jpg

Technical Parameter of 0.5mm~3mm HDPE geomembrane:

	Test Properties	unit	Test Method	Test Frequency	LK MS75	LK MS10	LK MS15	LK MS20	LK MS30
Mechanical Propertiers	Thickness	mm	D5199	Per roll	0.75	1.00	1.50	2.00	3.00
	Density	g/cc	D1505/D792	90,000kg	0.94
	Tensile properties		D6693 Type IV	9,000kg
	Yield strength	KN/m			11	15	22	29	44
	Break strength	KN/m			20	27	40	53	80
	Yield elongation	%			12	12	12	12	12
	Break elongation	%			700	700	700	700	700
	Tear Resistance	N	D1004	20,000kg	93	125	187	249	374
	Puncture resistance	N	D4883	20,000kg	240	320	480	640	960
	Stress crack Resistance	Hr.	D5397	Per GRI GM-10	300hr
	Carbon Black Content	%	D4218	9,000kg	2.0-3.0%
Reference Properties	Oxidative Induction Time	Min
	Standard OIT		D3895	90,000kg	100min
	High Pressure OIT		D5885	90,000kg	400min
	Oven Aging at 85℃（retained after 90 days）	%	D5712	Per each formulation	50% 80%
	(a)standard OIT		D3895
	(b)High Pressure OIT		D5885
	UV Resistance High Pressure OIT Rerained after1600h	%	D5885	Per each formulation	50%
Roll Size	Roll width	m			7	7	7	7	7
	Roll Length	m			280	210	140	105	70
	Size Stability	%	2%

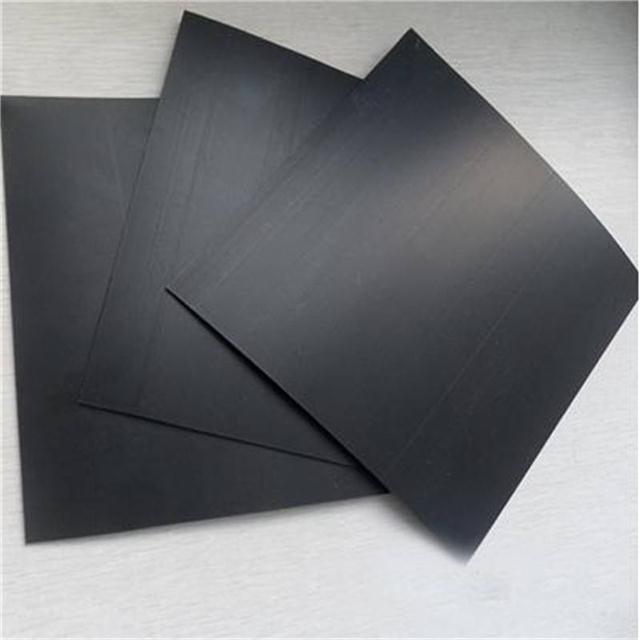

Geomembrane HDPE Pond Liner.jpg

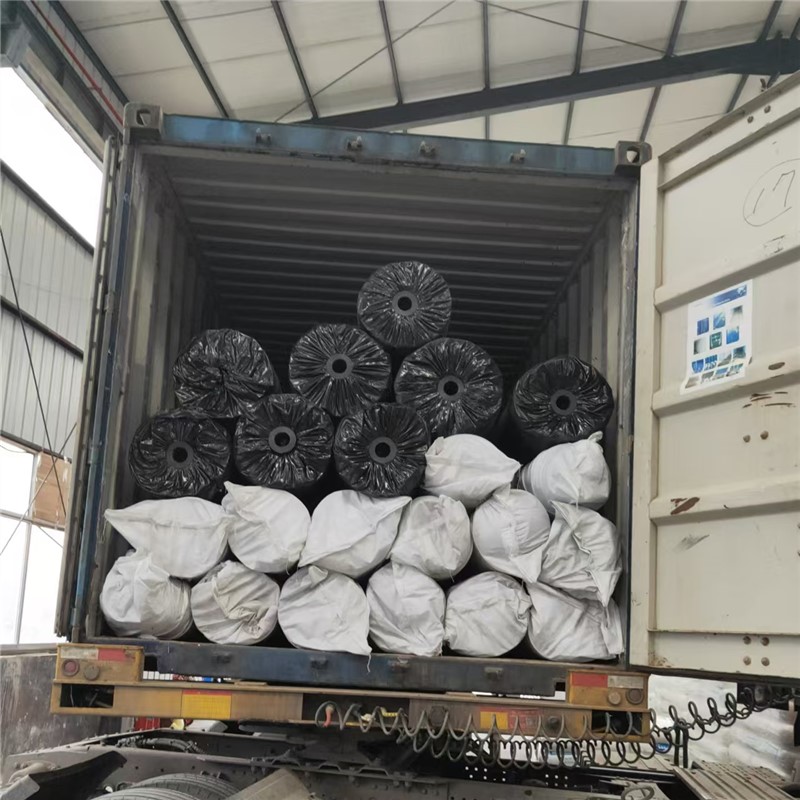

The packaging of geomembrane:

HDPE geomembrane roll is packed by woven bag or according to you requirements.

2.0mm HDPE Geomembrane Liner For Sewage Treatment.jpg

Feature of hdpe geomembrane:

1、Geomembranes have High mechanical strength and good chemical stability

2、HDPE Geomembrane Liner For Sewage Treatment has excellent waterproof,impermeable.

3、It has good wather resistance.

4、HDPE Geomembrane pond Liner Construction is convenience and the service life is long.

5、High impervious coefficient.

2.0mm HDPE Geomembrane Liner For Sewage Treatment.jpg

Our commitment:

Professional equipment, high quality geomembrance series products, first-class service is your best choice,welcome to our company!

If you want to know more about the geomembrance pond liner ,you can continue to ask me questions.

Shandong LuKe Composite Co;Ltd.jpg

The main use of geomembrane:

The HDPE geomembrane is more and more widely used in future engineering.It is mainly used for environmental sanitation, water conservancy, municipal engineering, garden, landscape, petrochemical, mining, salt industry, agriculture, aquaculture waterproof and anti leakage.

Geomembranes are also suit for the building basement, underground warehouse, underground garage moisture proof, reclamation project and docks engineering,mining and other fields etc.

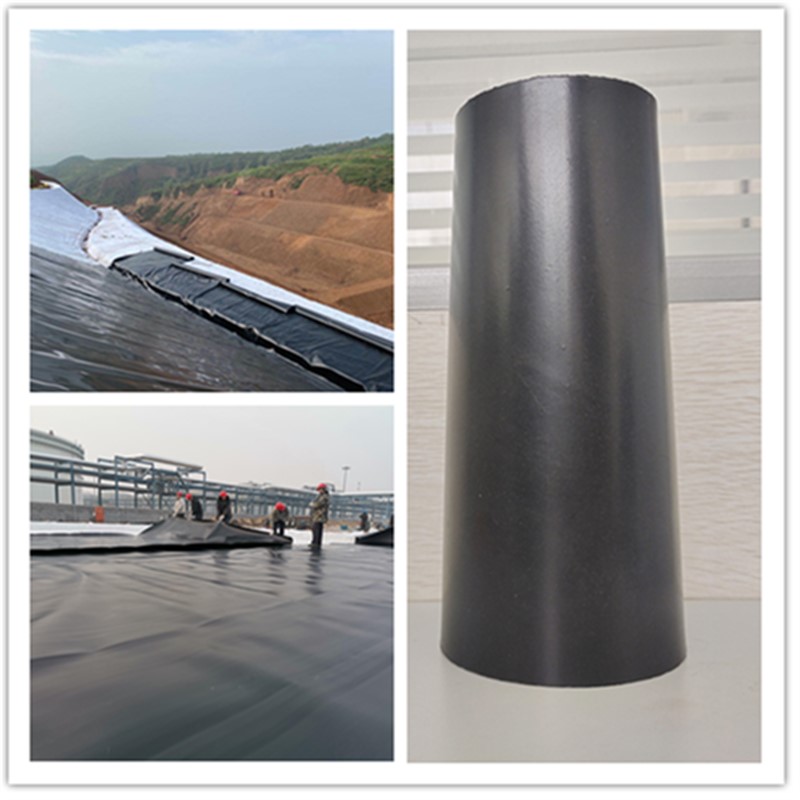

Geomembrane HDPE Application.jpg
