High tensile strength geotextile
Puncture resistance and strong
Excellent permeability and filtration
Increases performance life of the road
Withstands tough construction loading
With reliable drainage performance

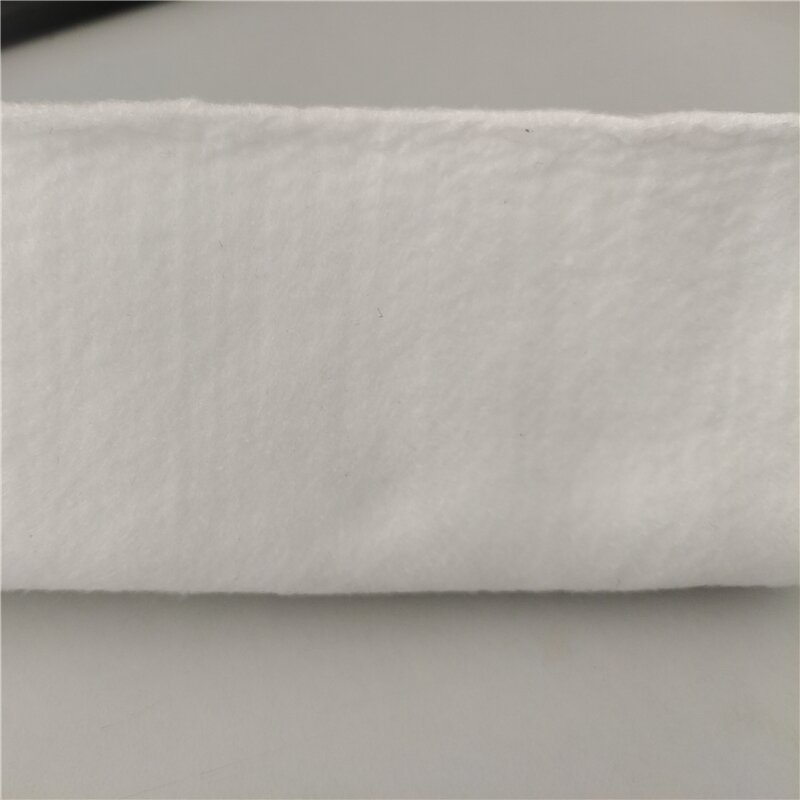

400g Filament Polyester non woven geotextile
Filament non woven Geotextile is a geosynthetic material made of synthetic materials such as polyester or polypropylene, which has good tensile properties, permeability resistance and corrosion resistance.
The specification range of polyester filament geotextiles is usually between100-1000g/m2, while the most commonly used specification is 400g/m2. Geotextile of this specification is widely used in many application scenarios because of its moderate weight and good physical properties.
Technical parameters of geotextile:
No | Mass per square meter | g/m2 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
1 | Weight Variation | % | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 |
2 | Thickness | mm | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 |
3 | Width Variation | % | -0.5 | ||||||||||
4 | Break Strength | kN/m | 4.5 | 7.5 | 10.5 | 12.5 | 15 | 17.5 | 20.5 | 22.5 | 25 | 30 | 40 |
5 | Break Elongation | % | 40-180 | ||||||||||
6 | CBR Burst Strength | kN/m | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3 | 3.5 | 4 | 4.7 | 5.5 | 7 |
7 | Sieve size | mm | 0.07-0.2 | ||||||||||
8 | Vertical Permeability Coefficien | cm/s | (1.0-9.9)×(0.1-0.001) | ||||||||||
9 | Tear Strength | kN/m | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.7 | 0.82 | 1.1 |
10 | others | Width:2m-8m;color:white,green,grey,black |

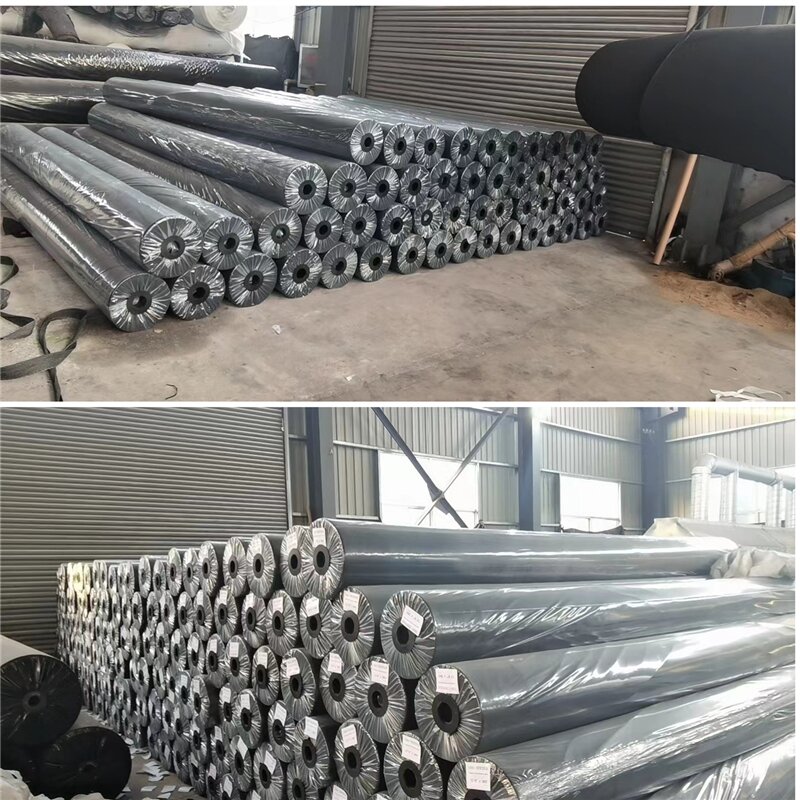

The packaging :

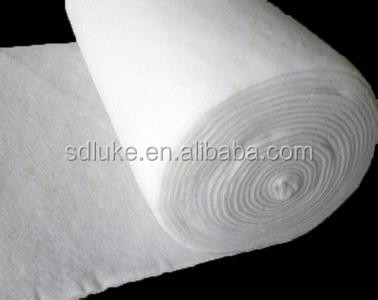

The PP/PET needled nonwoven geotextiles are packaged in rolls. The fixed length value is determined through negotiation according to the product specifications.

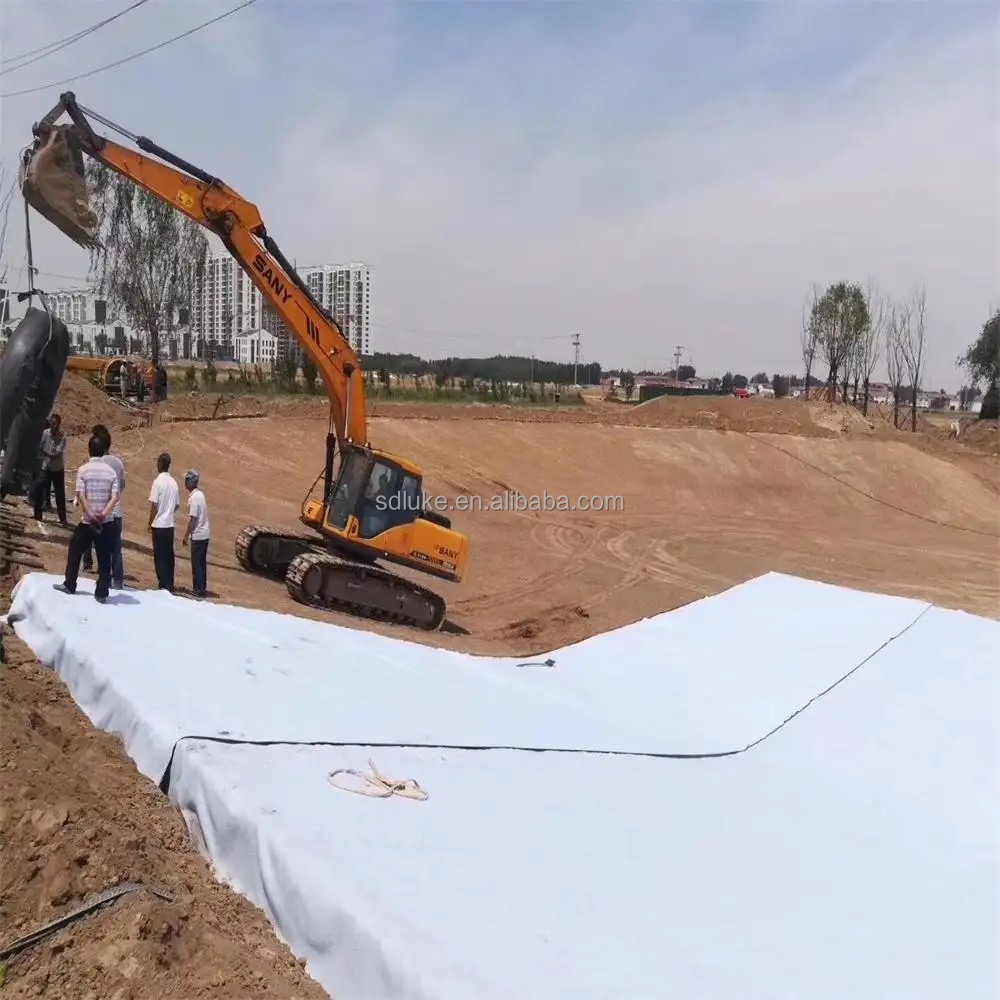

The application of 400g/m2 filament polyester geotextile:
400g polyester filament non-woven fabric also has multiple functions such as water permeability, reverse filtration and reinforcement, and its wide range can meet the needs of different occasions. This material not only has strong tensile properties, but also is suitable for maintenance anti-seepage, landfill anti-seepage, artificial lake anti-seepage, fish pond anti-ultraviolet, airport runway reinforcement and other scenarios. Therefore, 400g polyester filament non-woven fabrics play an important role in civil engineering, environmental protection engineering and other fields.
