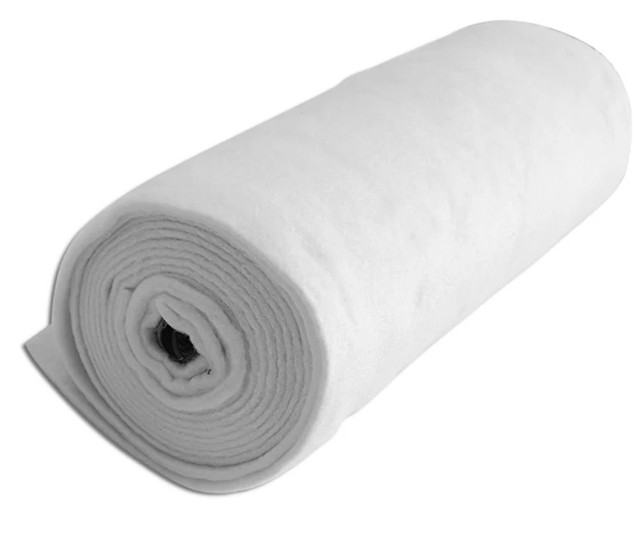

Staple Fiber Geotextile

* High tensile strength

* Excellent water permeability and filtration

* Good resistance to aging, tear and puncture

* Resistance to acid and alkali

Product Details

Product Details

The needle-punched non woven geotextile is produced from polyester or polypropylene fiber by way of special equipment and era to get specific thickness.

Geotextiles play an crucial and critical position within the civil engineering works.

The huge spectrum of geotextiles and related merchandise which are available to civil engineers to clear up a huge range of problems along with their functions and viable packages.

Geotextiles are permeable fabric structures made from polymeric materials and are used specially in civil engineering packages in conjunction with soil, rock and water.

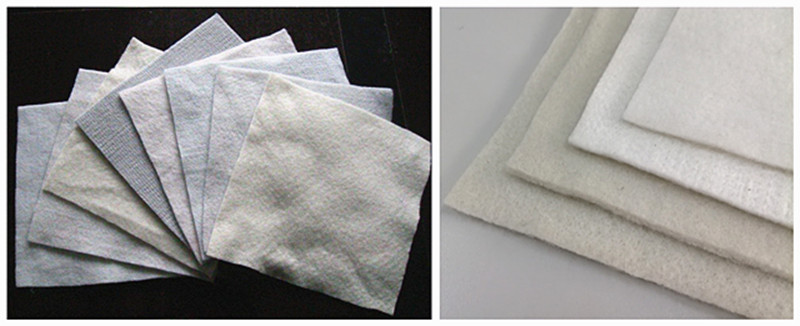

Staple Fiber Geotextile

Parameter

Test Properties		Units
Mechanical Properties	Weight	g/m2	100	150	200	250	300	350	400	450	500	600	800
	Weight Variation	%	-8	-8	-8	-8	-7	-7	-7	-7	-6	-6	-6
	Thickness	mm	0.9	1.3	1.7	2.1	2.4	2.7	3	3.3	3.6	4.1	5
	Width Variation	%	-0.5
	Break Strength (MD and XMD)	KN/m	2.5	4.5	6.5	8	9.5	11	12.5	14	16	19	25
	Break Elongation	%	25-100
	CBR Burst Strength ≥	KN	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.2	4
	Tear Strength ≥ (MD and XMD)	KN	0.08	0.12	0.16	0.2	0.24	0.28	0.33	0.38	0.42	0.46	0.6
Hydraulic Properties	O90 Sieve Size O90	mm	0.07-0.20
Hydraulic Properties	Coefficient of Permeability	cm/s	(1.0-9.9) x (10^-1-10^-3)
