High-density Polyethlene Black Geomembrane

HDPE geomembranes are in accordance with GB/GRI/ASTM standard.

Manufacturer direct HDPE geomembrane liner.

HDPE geomembrane has good physical and mechanic performance,stable performance.

It has good flexibility

High tensile strength and elongation.

It has good adaptability to high and low temperature,non-toxicity,long service life.

Contact Now

Product Details

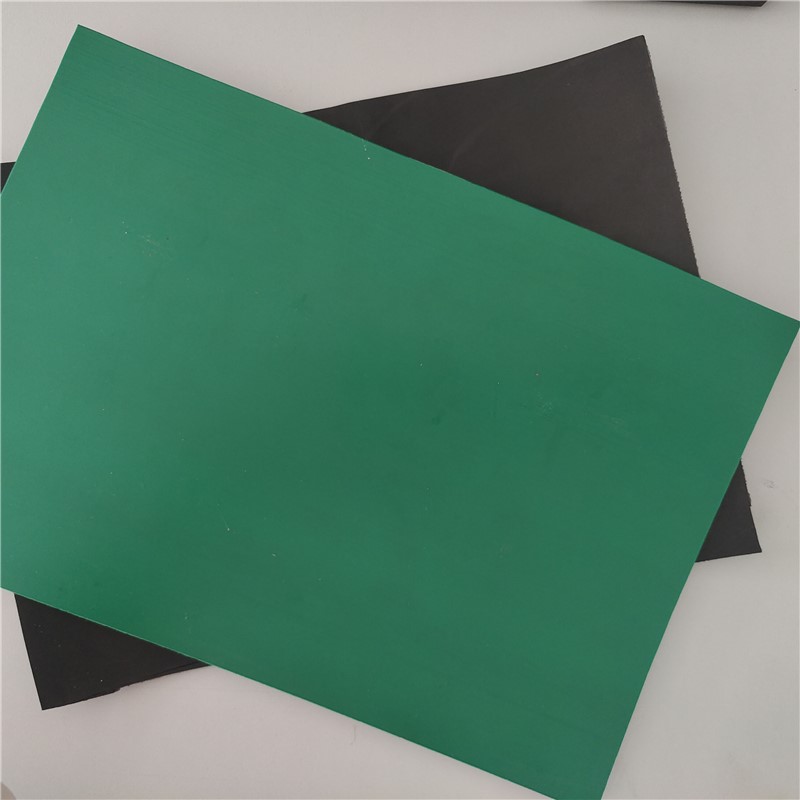

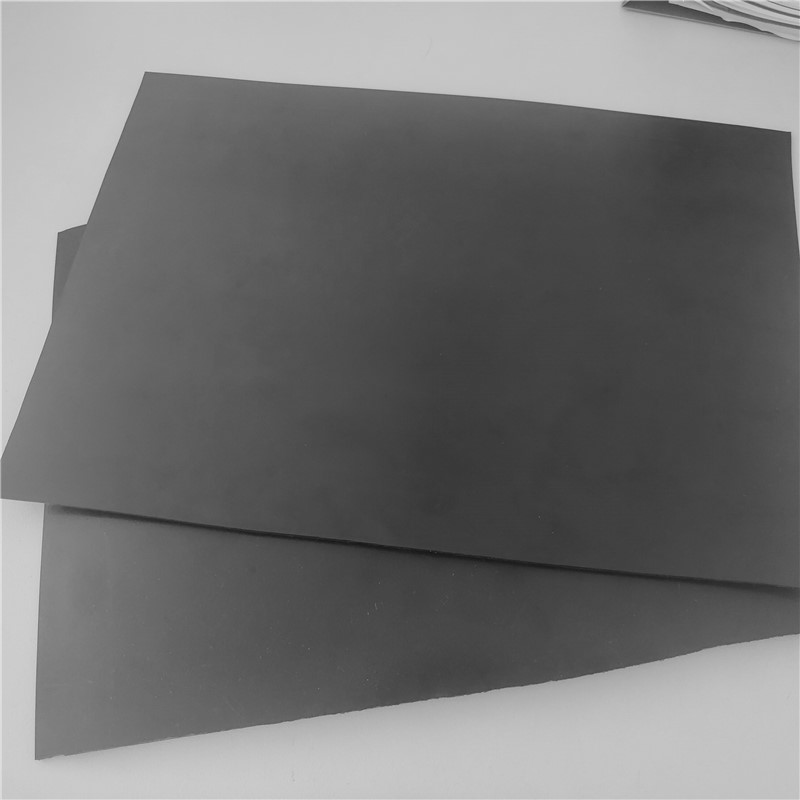

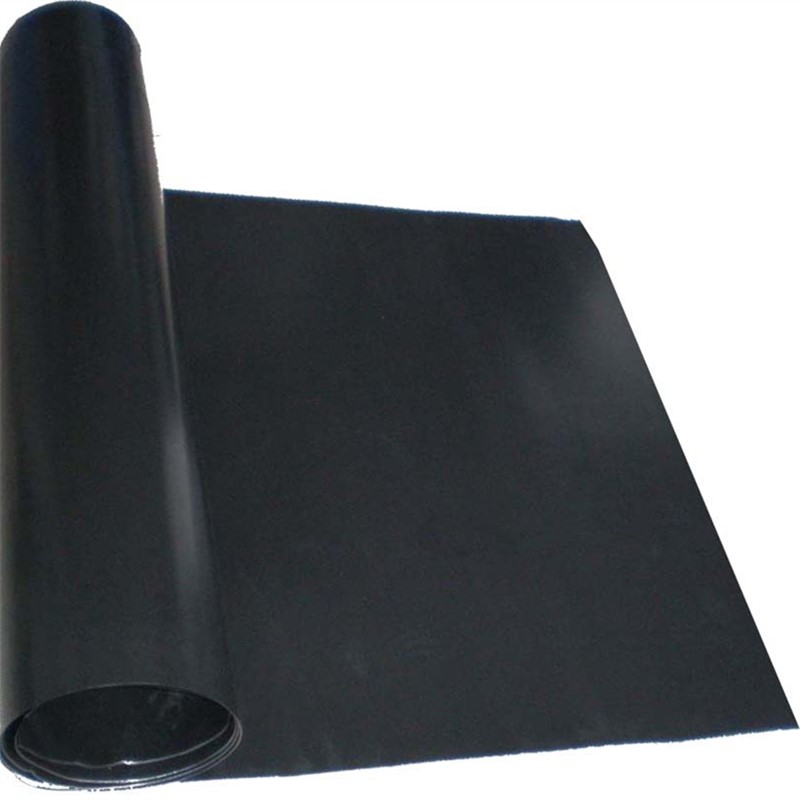

High-density Polyethlene Black Geomembrane

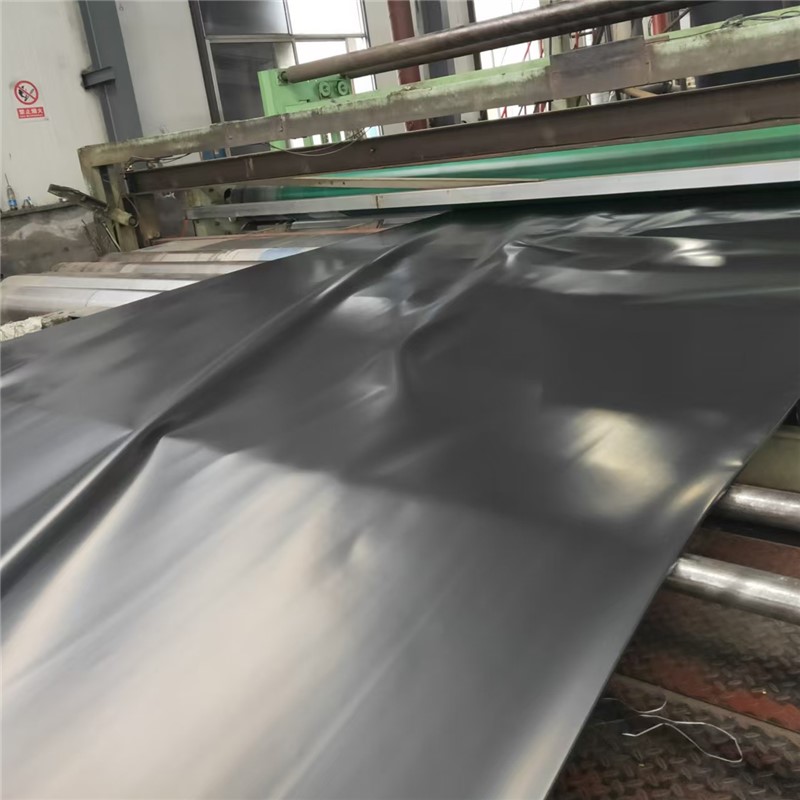

Geomembrane is a kind of plastic geomembrane with impermeability and isolation effect, which is also known as impermeability film including white geomembrane,black geomembrane,green geomembrane and so on. Because the raw material is high-density polyethylene (HDPE), so it is also called HDPE geomembrane. The surfaces of both sides are smooth.It adopted the first calss automatic production equipment and three-layer pressing technology.All products are in accordance with GB/GRI/ASTM standard.

High-density Polyethlene Black Geomembrane.jpg

The main characteristics of smooth black HDPE geomembrane:

1、Geomembrane can resistant to UV light.

2、 HDPE Geomembrane pond liner has good anti-seepage.
3、It has a good isolation function.

4、Geomembranes HDPE for landfill have high tearing resistance.

5、High impervious coefficient.

6、Fast construction speed.

7、Corrosion resistance, aging resistance.

High-density Polyethlene Black Geomembrane.jpg

Technical Parameters of geomembrane:

	Test Properties	unit	Test Method	Test Frequency	LK MS75	LK MS10	LK MS15	LK MS20	LK MS30
Mechanical Propertiers	Thickness	mm	D5199	Per roll	0.75	1.00	1.50	2.00	3.00
	Density	g/cc	D1505/D792	90,000kg	0.94
	Tensile properties		D6693 Type IV	9,000kg
	Yield strength	KN/m			11	15	22	29	44
	Break strength	KN/m			20	27	40	53	80
	Yield elongation	%			12	12	12	12	12
	Break elongation	%			700	700	700	700	700
	Tear Resistance	N	D1004	20,000kg	93	125	187	249	374
	Puncture resistance	N	D4883	20,000kg	240	320	480	640	960
	Stress crack Resistance	Hr.	D5397	PerGRI GM-10	300hr
	Carbon Black Content	%	D4218	9,000kg	2.0-3.0%
Reference Properties	Oxidative Induction Time	Min
	Standard OIT		D3895	90,000kg	100min
	High Pressure OIT		D5885	90,000kg	400min
	Oven Aging at 85℃（retained after 90 days）	%	D5712	Per each formulation	50% 80%
	(a)standard OIT		D3895
	(b)High Pressure OIT		D5885
	UV Resistance High Pressure OIT Rerained after1600h	%	D5885	Per each formulation	50%
Roll Size	Roll width	m			7	7	7	7	7
	Roll Length	m			280	210	140	105	70
	Size Stability	%	2%

High-density Polyethlene Black Geomembrane.jpg

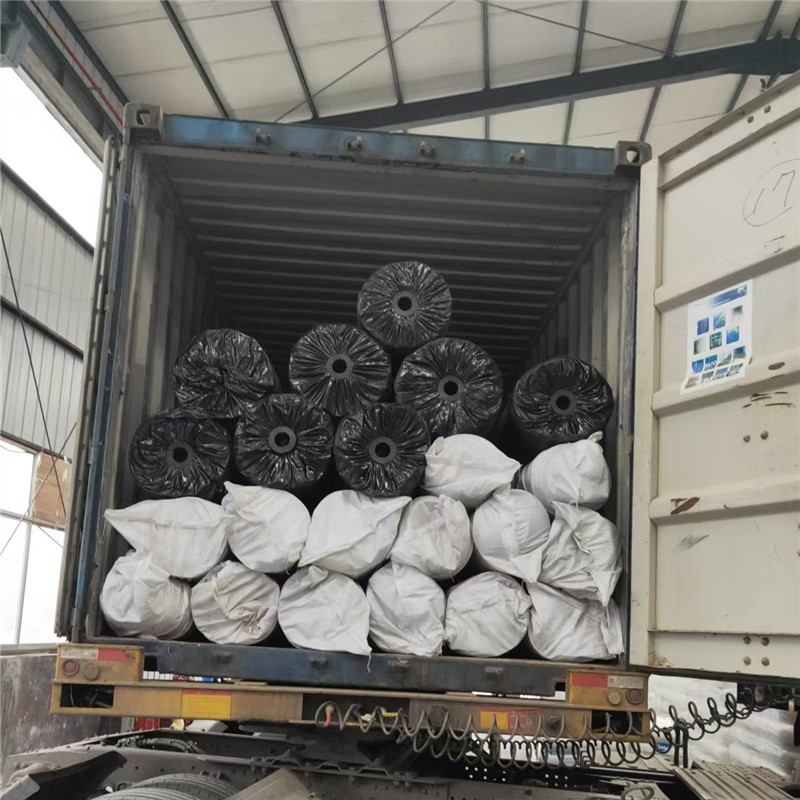

HDPE geomembrane transport package:

PP woven geotextile bags or PE film,or accroding to your needs.

High-density Polyethlene Black Geomembrane.jpg

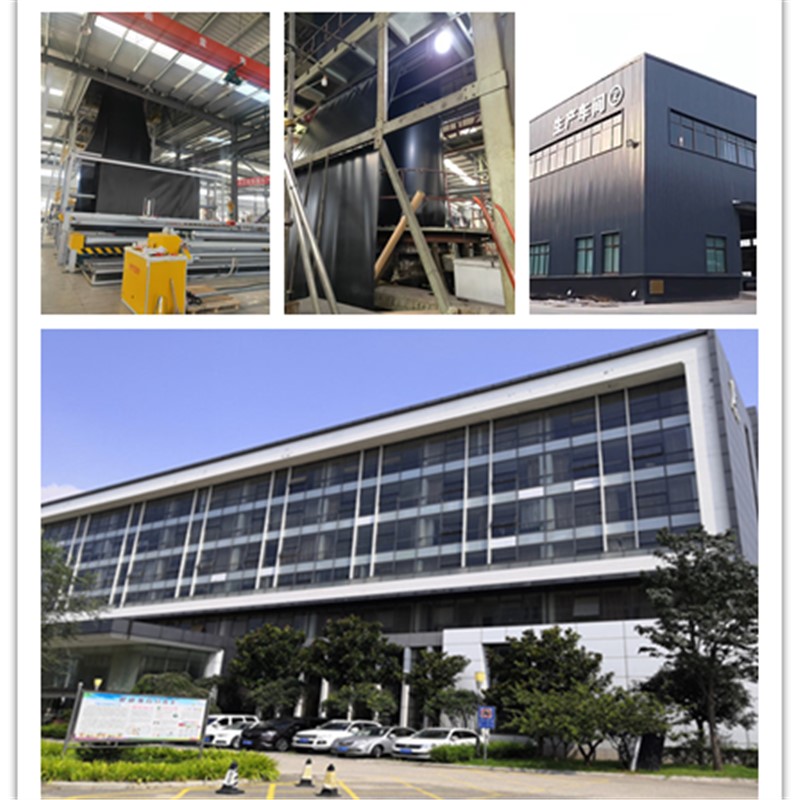

Our company aim is :quality first,reputation first!

Professional equipment,high quality HDPE geomembrane,first-class service is your best choice,welcome to our company!

High-density Polyethlene Black Geomembrane.jpg

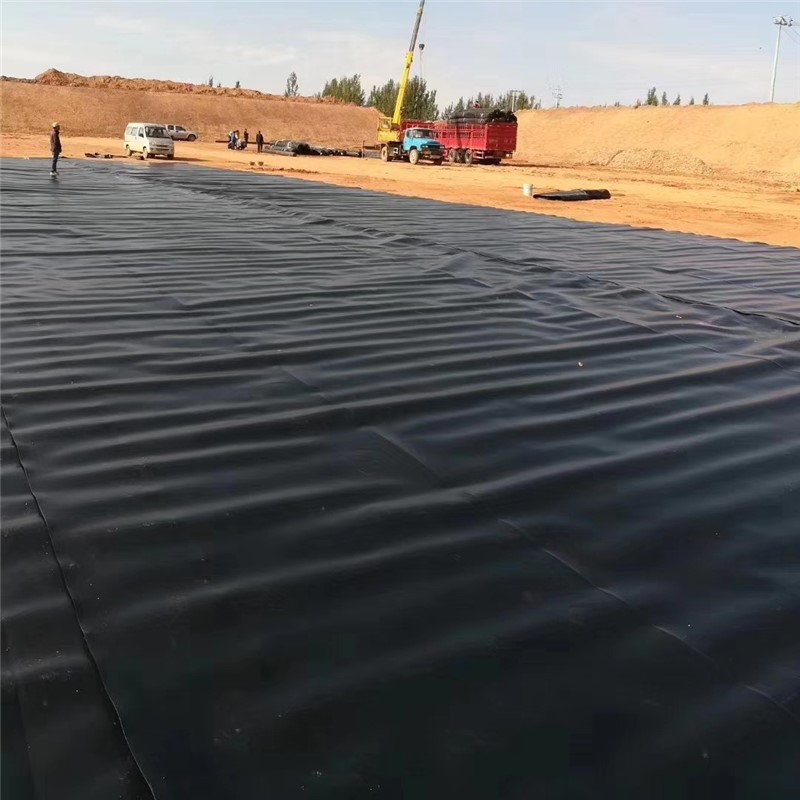

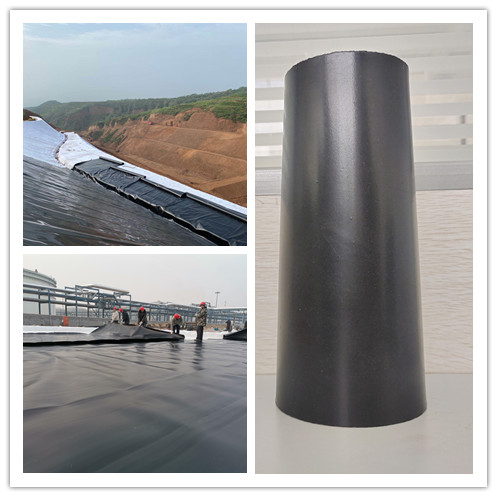

Application:

1、Hydraulic engineering.

2、HDPE geomembranes for environmental protection：In environmental protection engineering, geomembrane is widely used in sewage treatment, landfill and other projects, which can effectively prevent pollution and leakage.

3. Construction engineering: In construction engineering, geomembrane is widely used in roofs, basements, parking lots and other parts that need to be waterproof and moisture-proof, which can improve the waterproof performance and service life of buildings

4. Other fields: Geomemofilm can also be widely used in petroleum, chemical, mining and other fields, can play a role in anti-leakage, anti-corrosion and so on.

High-density Polyethlene Black Geomembrane.jpg
