200gsm Polypropylene Polyester Nonwoven Geotextile
200gsm fiber nonwoven geotextile has high tensile strength and wear resistance.
PP PET nonwoven geotextile has excellent water permeability and filtration.
It has excellent UV resistance.
Good resistance to aging, tear and puncture
Resistance to acid and alkali.
PP PET nonwoven geotextile has excellent chemical resistance.
Non-woven polypropylene polyester fiber geotetile has outstanding stress crack capacity.
Product Details

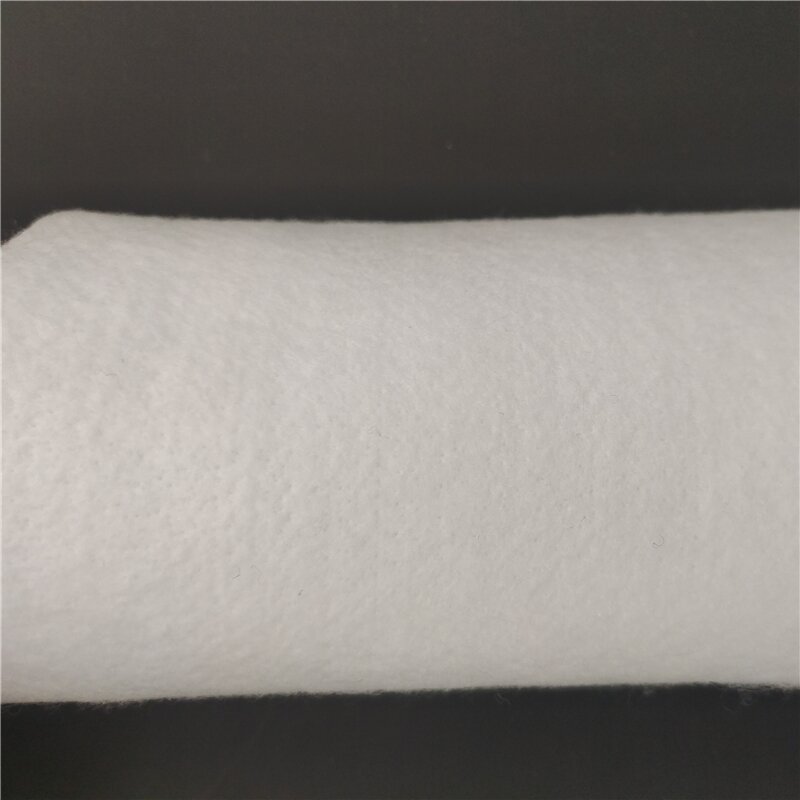

200gsm Polypropylene Polyester Nonwoven Geotextile
The needle punched non woven geotextile is produced from polyester or polypropylene fiber by different equipment and technology to get different thickness.Our commonly used geotextiles are 200g/m2,300g/m2,400g/m2, and custom geotextiles. Different specifications of geotextiles have different characteristics and scope of application, choosing the right specifications can yield twice the result with half the effort.
The feature of the 200gsm geotextile:
The geotextile of 200g/m2 specification is characterized by high tensile strength and wear resistance, which can prevent damage caused by soil particle movement. This specification of geotextiles is mostly used for the impermeability of civil engineering, such as DAMS, tunnels, cofferdams and so on. In addition, it is also used in traffic engineering such as highways and railways.
Technical parameters of nonwoven needle punched geotextile:
Test Properties | Units | LKS10 | LKS15 | LKS20 | LKS25 | LKS30 | LKS35 | LKS40 | LKS45 | LKS50 | LKS60 | LKS80 | |
Mechanical Properties | Weight | g/㎡ | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
Weight Variation | % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
Thickness | mm | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
Width Variation | % | 0.5 | |||||||||||
Break Strength(MD and XMD) | kN/m | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | |
Break Elongation | % | 25-100 | |||||||||||
CBR Burst Strength | |||||||||||||
Tear Strength≥（MD and XMD） | kN | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | |
Hydraulic Properties | Sieve SizeO90 | mm | 0.07-0.20 | ||||||||||
Coefficient of Permeability | Cm/s | (1.0-9.9) ×（10-1-10-3） | |||||||||||

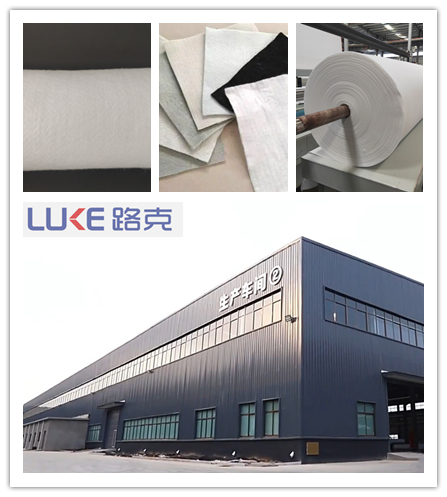

About our company:
Shandong LuKe Composite Co;Ltd. is a company specializing in the production and sales of geosynthetic materials.we mainly produce geomembrane,geotextile,drain board,geogrid,geocell,3D geomat,drain mat,drainage net,grass paver ect.
Our company purpose is :
quality first,reputation first!
Professional equipment,high quality pp geotextiles,first-class service is your best choice. Our products are all over the word,and have received unanimous praise welcome to our company!

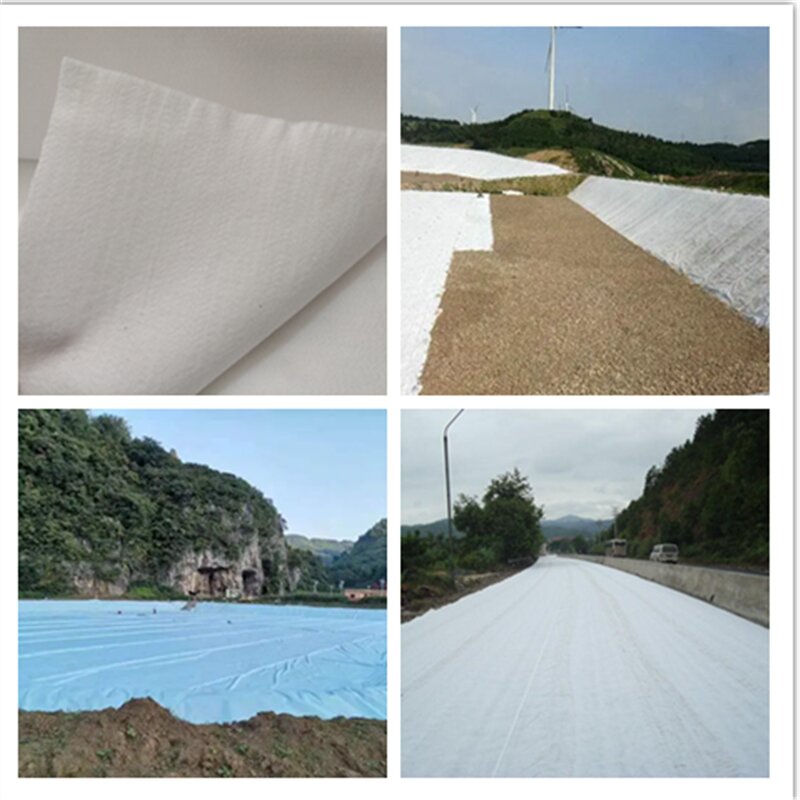

The role of geotextile:
★PP PET nonwoven geotextile fabric reinforcement in retainning wall backfill
★200g/m2 fiber nonwoven geotextile can strengthen the weak road and fix the cracks on the road.
★Improve the stability of slope and reinforcement soil,avoid water and soil loss and soil frozen in jure.
★Isolation layer of drainage pipe or gravel sub-drain.
★Vertical or horizontal drainage,bury in soil to release air pressure.
★Reinforcement the weak foundation of engineering of road,railway,embankment,airport.
