High Performance PP Polypropylene Non-Woven Geotextile Fabric

PP/PET geotextile can moisture Barrier and waterproofing function.

Polypropylene /Polyster geotextile has light weight, low cost, corrosion resistance.

Non woven geotextile for driveway with reverse filtration, drainage, isolation, enhancement and other excellent performance.

Geotextile Fabric for driveway has high strength, high tensile properties.

Economical and durable, long service life.


  Contact Now
Product Details

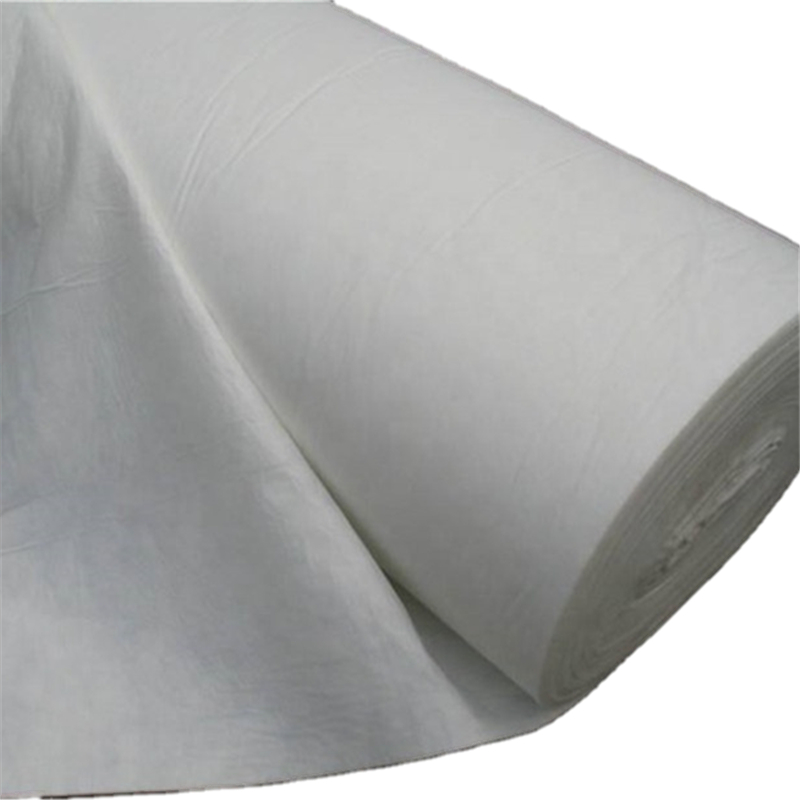

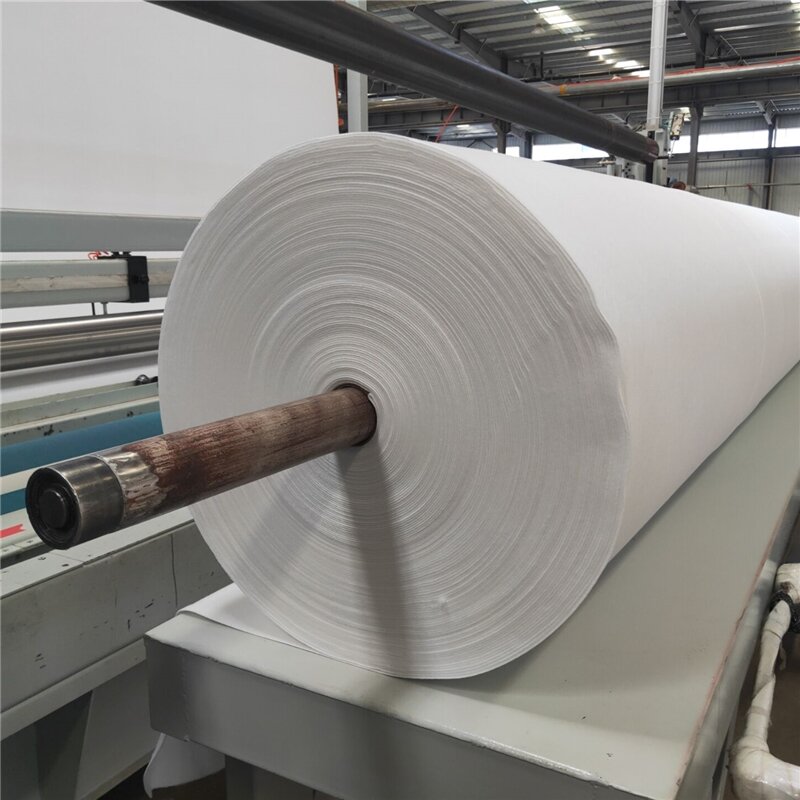

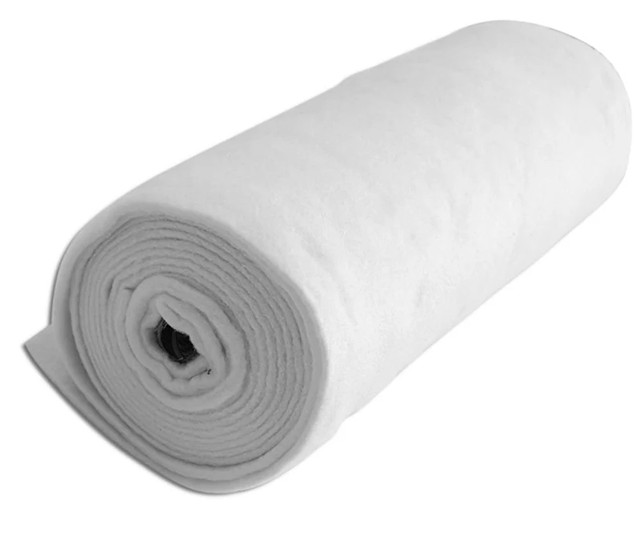

High Performance  PP Polypropylene Non-Woven Geotextile

Geotextile is a kind of engineered fabric in the form of a continuous sheet of woven, nonwoven, knitted or stitch-bonded fibres or yarns.It is produced from polyester or polypropylene fiber by different equipment and technonlogy to get different thickness.Geotextile Filter Fabric are used in civil, geotechnical and environmental engineering for a range of specific engineering functions such as separation, filtration, drainage, reinforcement and erosion control applications.





Technical parameters of High Performance  PP Polypropylene Non-Woven Geotextile:

Test Properties

Units

LKS10

LKS15

LKS20

LKS25

LKS30

LKS35

LKS40

LKS45

LKS50

LKS60

LKS80

Mechanical Properties

Weight

g/㎡

100

150

200

250

300

350

400

450

500

600

800

Weight Variation

%

-8

-8

-8

-8

-7

-7

-7

-7

-6

-6

-6

Thickness

mm

0.9

1.3

1.7

2.1

2.4

2.7

3

3.3

3.6

4.1

5

Width Variation

%

0.5

Break Strength(MD and XMD)

kN/m

2.5

4.5

6.5

8

9.5

11

12.5

14

16

19

25

Break Elongation

%

25-100

CBR Burst Strength













Tear Strength≥(MD and XMD)

kN

0.08

0.12

0.16

0.2

0.24

0.28

0.33

0.38

0.42

0.46

0.6

Hydraulic Properties

Sieve SizeO90

mm

0.07-0.20

Coefficient of Permeability

Cm/s

(1.0-9.9) ×(10-1-10-3

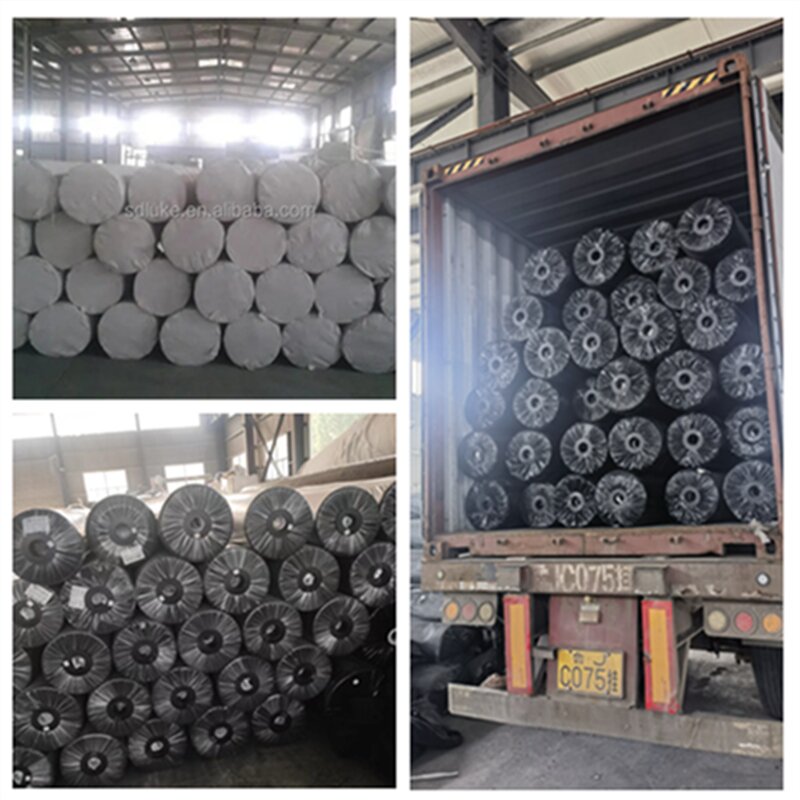

The non woven geotextile fabric packaging:

Packaging and transport:woven bag in roll or customer’s requirements.

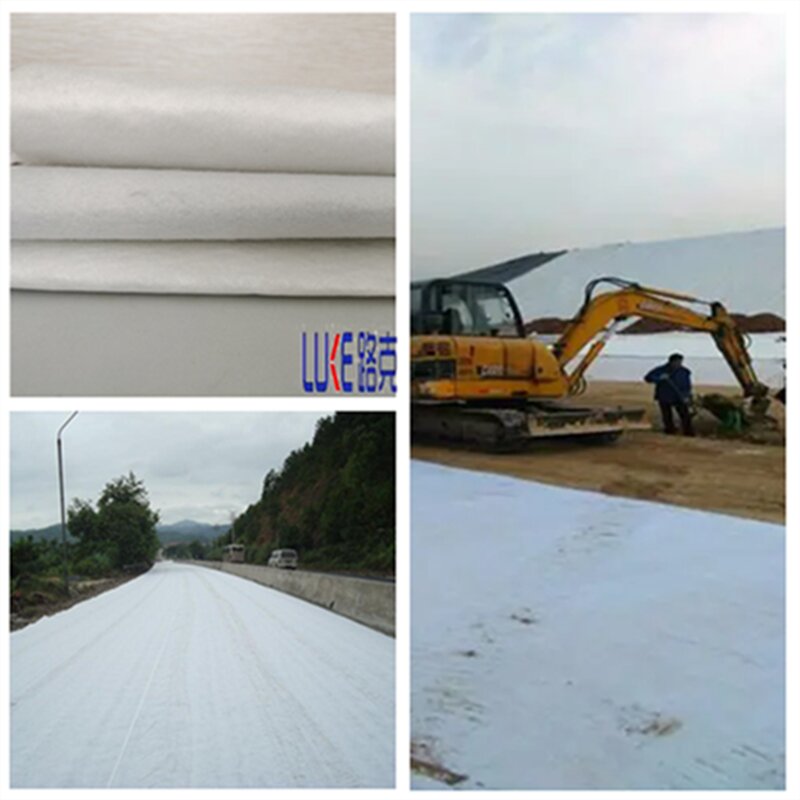

Application and function of geotextile:

The main function is a fileration,drainage,reinforcement.it has good impermeability and resistance to deformation.

1、  Reinforcement in retainning wall backfill

2、  Strengthen the weak road and fix the cracks on the road.

3、  Improve the stability of slope and reinforcement soil,avoid water and soil loss and soil frozen in jure.

4、  Isolation layer of drainage pipe or gravel sub-drain.

5、  Vertical or horizontal drainage,bury in soil to release air pressure.

6、  Reinforcement the weak foundation of engineering of road,railway,embankment,airport.

Geotextile fabric for diverway,and it widely used in water conservancy, power, mine, road and railway and other geoengineering.

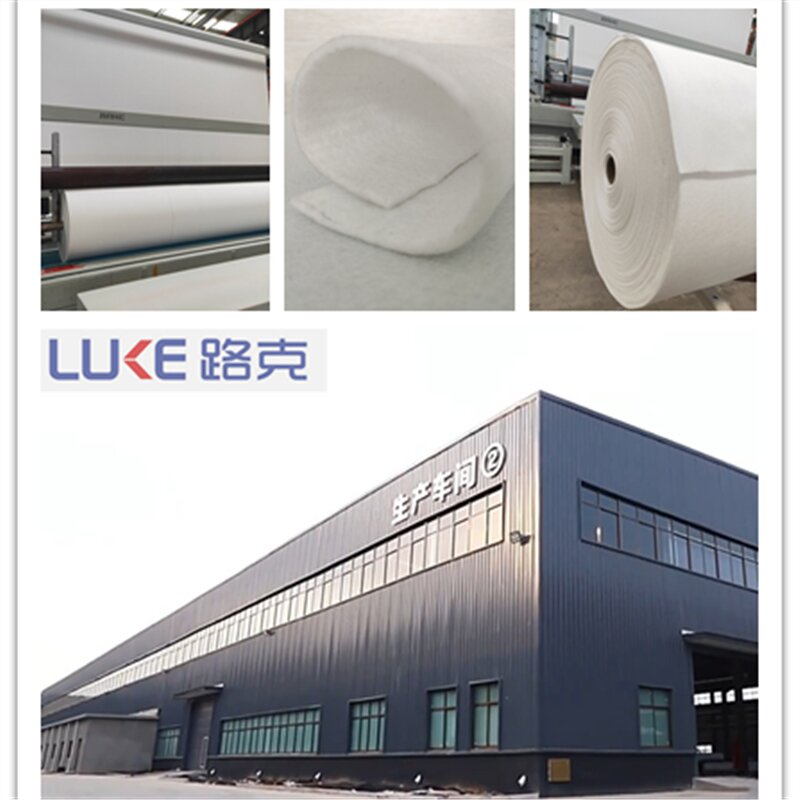

About our company:

Shandong LuKe Composite Co;Ltd. is a company specializing in the  production and sales of geosynthetic materials.we mainly produce geomembrane,geotextile,drain board,geogrid,geocell,3D geomat,drain mat,drainage net,grass paver ect.

Our company purpose is :

quality first,reputation first!

Professional equipment,high quality pp geotextiles,first-class service is your best choice. Our products are all over the word,and have received unanimous praise welcome to our company!
