HDPE Dimple Board For Wall Drainage

•The HDPE dimple board for drainage wall structural stability.

•The vertical drainage plate can improve the stability of earth dam.

•The raw material of dimple board drain is light in weight.

•The dimple board drainage has high compressive strength.

•It has high drainage efficiency.

•Factory driect sales.

Contact Now

Product Details

HDPE Dimple Board For Wall Drainage

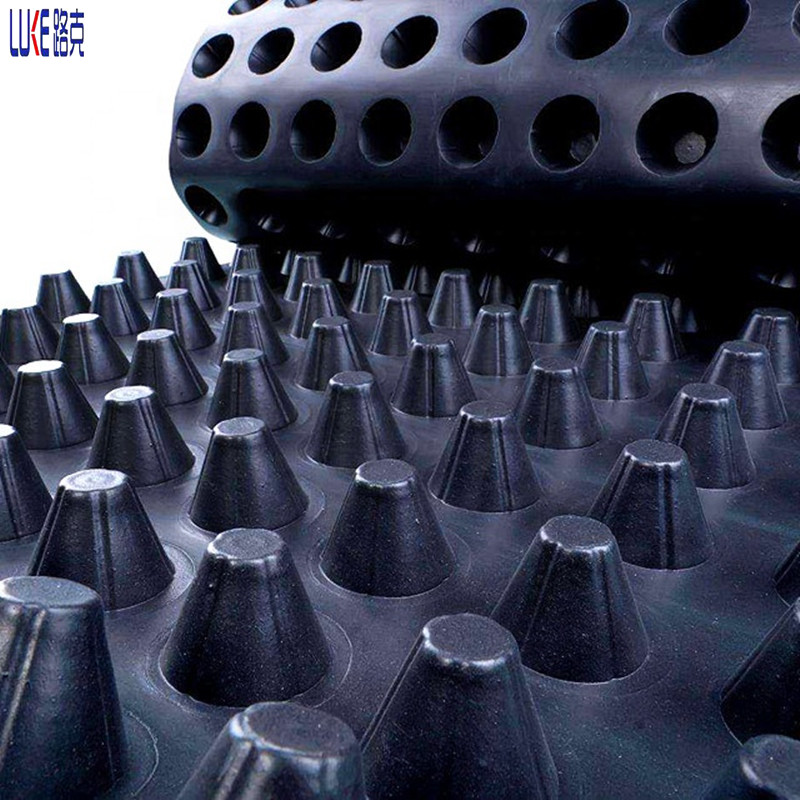

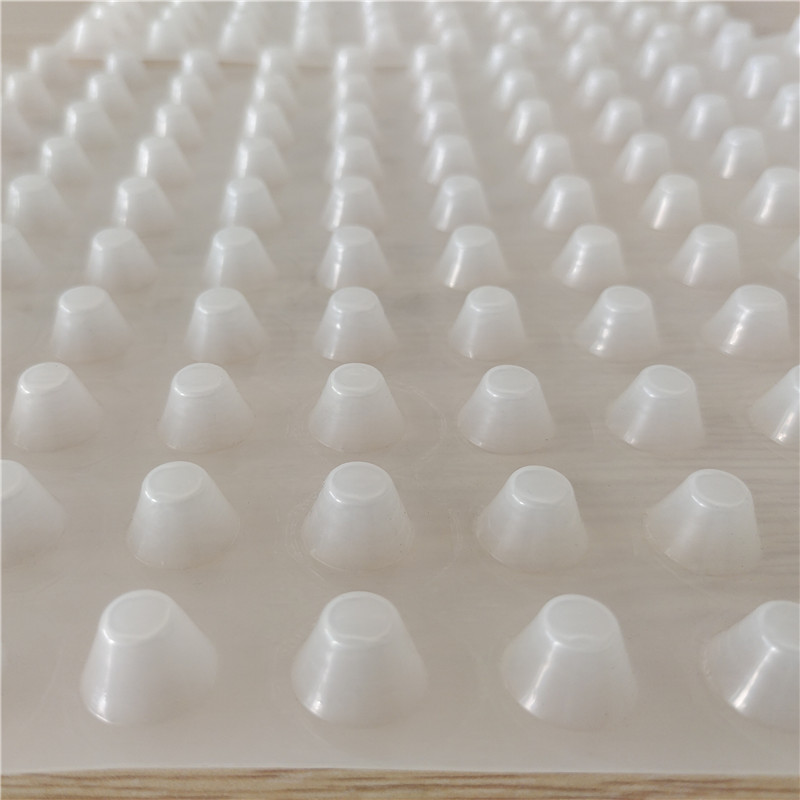

Drainage board is a simple and effective drainage facility.It is specially used for building roofs, walls and basements and other building structures drainage material, which is made of high-density polyethylene (HDPE), the surface is wavy shape, the internal has a raised drainage surface and notched exhaust holes. This design can effectively remove water from the roof or wall and divert it away from the building, thus reducing the risk of building damage.

HDPE Dimple Board For Wall Drainage.jpg

The feature of dimple board for wall drainage:

Material: HDPE

Width:2~3M

Color:white,black,green

Roll Length:5~30M

◆The dimple board for wall drainage is resistant to aging.

◆HDPE drainning board strong corrosion resistance.

◆HDPE Composite Drainage Board can not only drain water but also store water.

◆Strong load resistance and durability.

◆Construction convenience.

◆It has strong tensile strength.

◆It is economical and environmentally friendly.

◆It can adjust the humidity inside the building to prevent moisture and improve the service life of the building.

HDPE Dimple Board For Wall Drainage.jpg

The technical parameter of dimple draining board:

No		LK-H08	LK-H10	LK-H12	LK-H16	LK-H20	LK-H25	LK-H30
1	Material	HDPE	HDPE	HDPE	HDPE	HDPE	HDPE	HDPE
2	Drain height(mm)	08	10	12	16	20	25	30
3	Weight(g/m²)	1000	1100	1200	1400	1500	1600	1800
4	Board thickness(mm)	0.7	0.8	0.9	1	1.1	1.1	1.2
5	Tensile strength(N/100mm)	350	350	350	350	350	350	350
6	Anti-pression strength(KPa)	300	300	300	300	300	300	300
7	Elongation rate(% >)	80	80	80	80	80	80	80
8	Flow (cm³.s)≥	10	10	10	10	10	10	10
9	CBR puncture strength N	350	350	350	350	350	350	350

HDPE Dimple Board For Wall Drainage.jpg

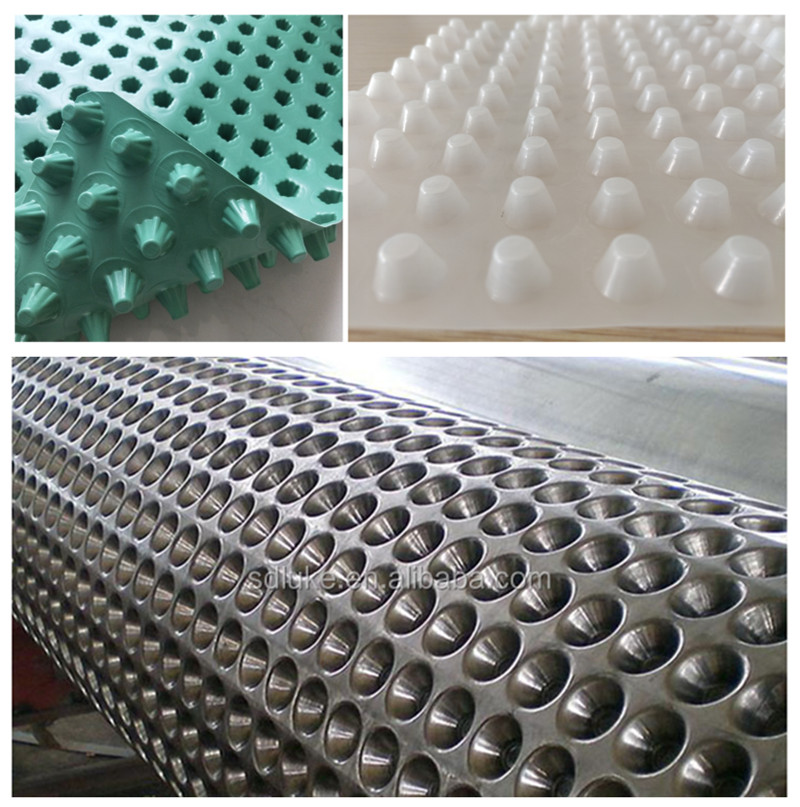

Shandong Luke HDPE drainage board workshop conner display:

We have a number of drainage board production lines, high output, sufficient supply, short delivery.

HDPE Dimple Board For Wall Drainage Workshop Conner Display.jpg

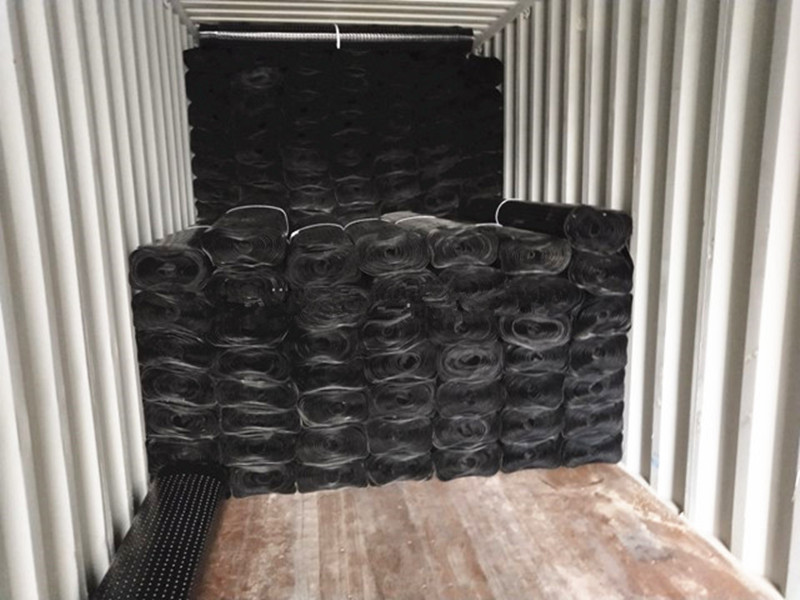

The packaging and divery:

Packed by roll or in white woven bag, neatly packed, or according to your requirements.and delivery within the specified date.

HDPE Dimple Board For Wall Drainage.jpg

About us:

Shandong Luke Composite Co; Ltd. is professional company on production and sales geosynthetics for years, which is located at the foot of the beautiful Mountain Tai.

We mainly produce geomembrane, geotextile, drain board, geogrid,geocell,3D geomat, drain mat, drainage net, grass paver ect.

Our geosynthetic materials have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa.

Our commitment:

Professional equipment, high quality geomembrane series products, first-class service is your best choice, welcome to our company!

If you want to know more about the dimple drainage board ,you can continue to ask me questions.

HDPE Dimple Board For Wall Drainage.jpg

After-sales service:

Our company provides a one-stop service, and our technical staff provides 24/7 online support to solve any technical problems related to hdpe dimple drain board in a timely manner. Thank you for your love of our products.

Drainage Board One-stop Service.jpg
