Polypropylnene staple fiber non-woven geotextile has good tensile strength and durability.
PP staple fiber non-woven geotextile has good water permeability, so that water can quickly penetrate into the underlying soil, play a good drainage function.
Geotextile erosion control: as an insulating layer between soil and rock, effectively prevent soil erosion and water loss.
PP staple non-woven fabrics are made of natural fibers that are degraded, recyclable and environmental friendly.
It has a long service life.
Width:3-6mm,weigh:100g-800g/㎡

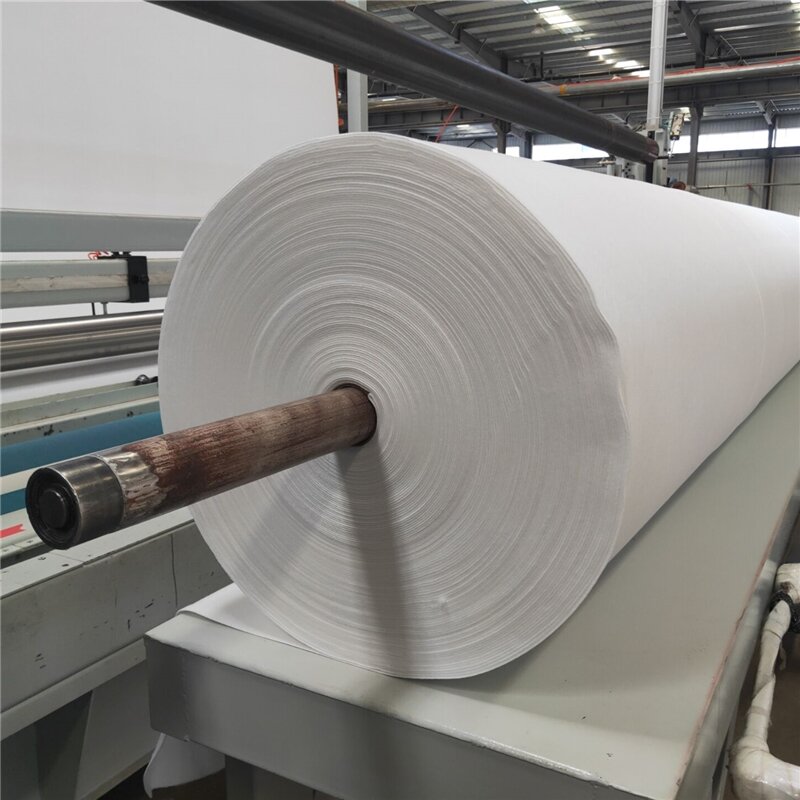

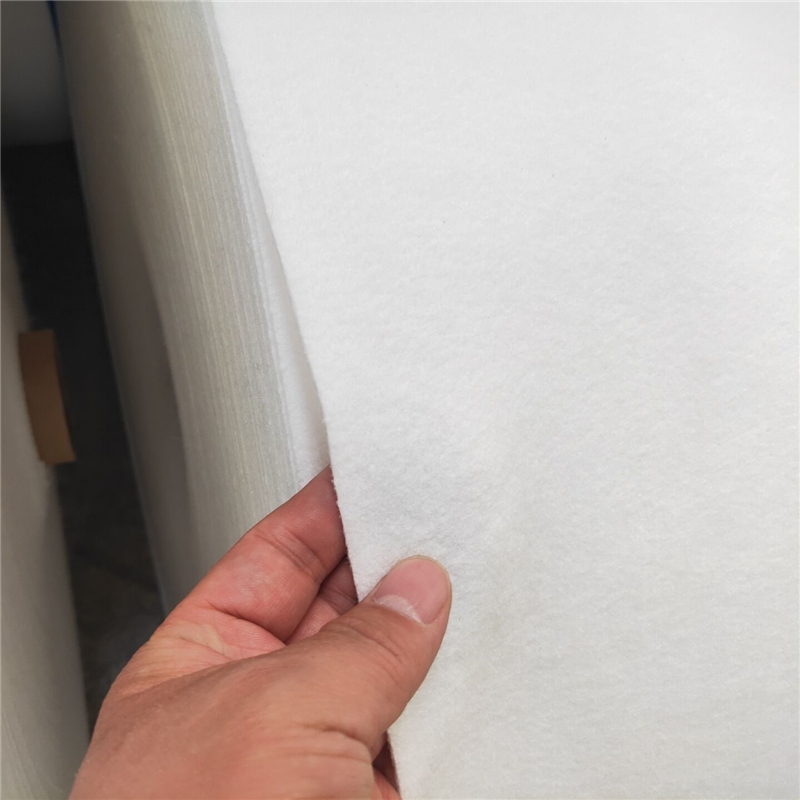

Supply PP Staple Fiber Needle Punched Geotextile
Staple fiber non-woven geotextile is a kind of geomaterial made of staple fiber by needling process. This material has high strength, high tensile properties, corrosion resistance and good filtration properties. By interweaving, fusing and fixing the short fiber on the needling machine, a three-dimensional structure is formed, which makes the geotextile have high tensile strength and shear strength, can effectively disperse and transfer the load, and enhance the stability of the soil.
The features of pp staple fiber geotextile:
High strength: PP staple fiber geotextile has a high tensile strength and tear strength, can withstand greater external force.
Wear resistance: because the tight interweaving between the fibers,so the geotextiles have good wear resistance.
Anti-aging: PP/PET geotextile can resist ultraviolet radiation and chemical corrosion, maintain long-term stability.
Water permeability: HDPE proof water geotextile has good water permeability and air permeability, which helps soil drainage and gas exchange.
Easy construction: light weight, soft, easy to cut and splice, simple and fast construction.
Technical parameters of staple fiber needle punched geotextile:
Test Properties | Units | LKS10 | LKS15 | LKS20 | LKS25 | LKS30 | LKS35 | LKS40 | LKS45 | LKS50 | LKS60 | LKS80 | |
Mechanical Properties | Weight | g/㎡ | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
Weight Variation | % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
Thickness | mm | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
Width Variation | % | 0.5 | |||||||||||
Break Strength(MD and XMD) | kN/m | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | |
Break Elongation | % | 25-100 | |||||||||||
CBR Burst Strength | |||||||||||||
Tear Strength≥(MD and XMD) | kN | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | |
Hydraulic Properties | Sieve SizeO90 | mm | 0.07-0.20 | ||||||||||
Coefficient of Permeability | Cm/s | (1.0-9.9) ×(10-1-10-3) |

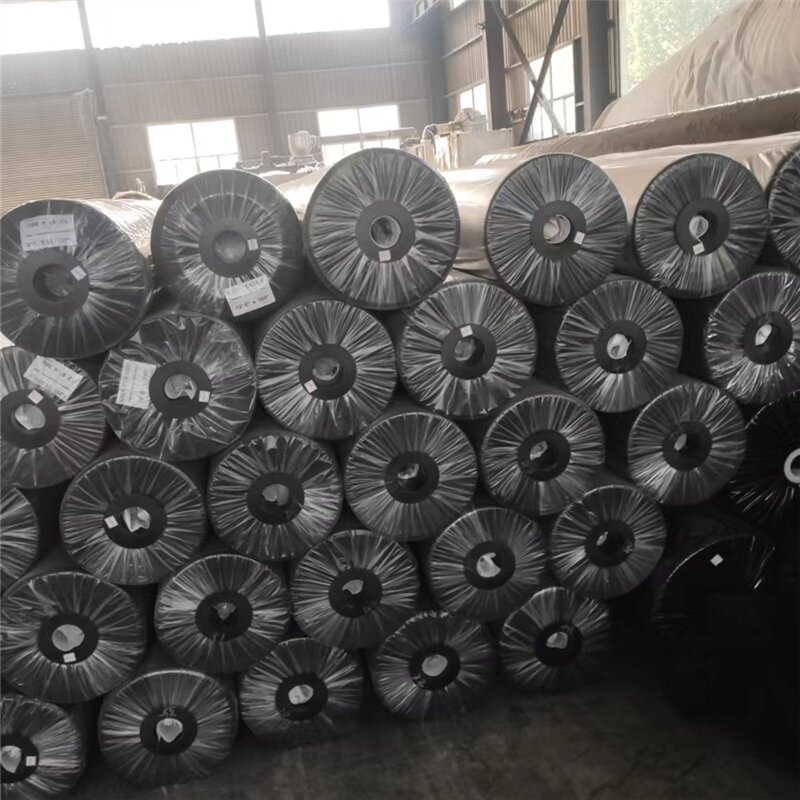

Packaging: Woven bag in roll or customer’s requirements.
Lead time: We can supply 30,000 square meters PP staple fiber needle punched geotextile within 5 days, more than 30,000 square meters can be negotiated dates.

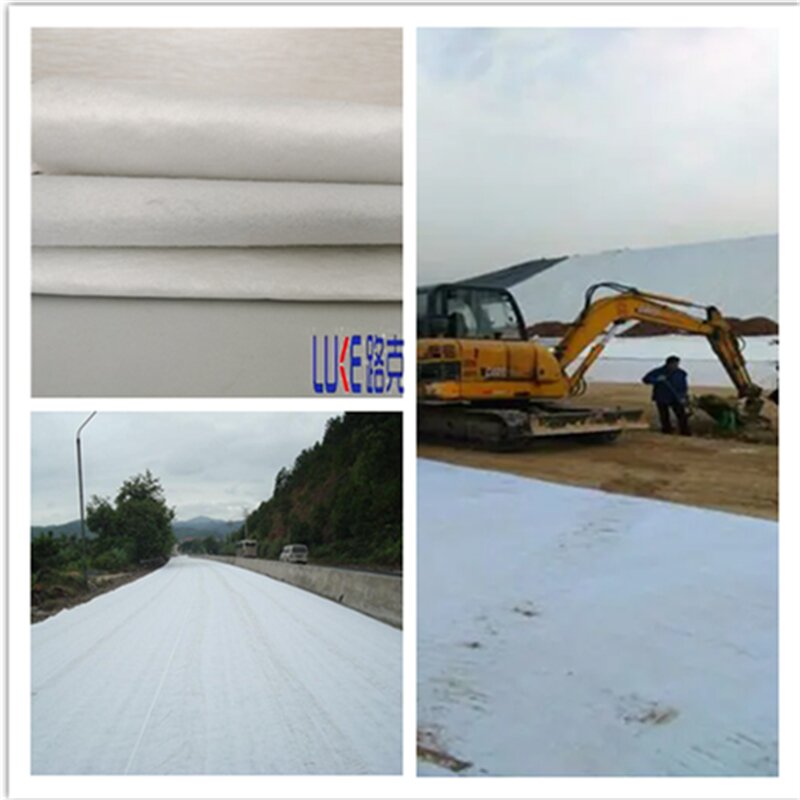

Application of geotextiles:
PP/PET geotextiles Widely used in water conservancy, power, mine, road and railway and other geoengineering:
★ Filter material for soil layer separation;
★Drainage materials for reservoirs, mining and mineral processing, drainage materials for high-rise building foundations;
★ Anti-erosion materials for river dykes and slope protection;
★Railway, road, airport runway roadbed reinforcement materials, swamp area road reinforcement materials;
★Anti-frost, anti-freeze insulation materials;
★Asphalt pavement anti-crack material.

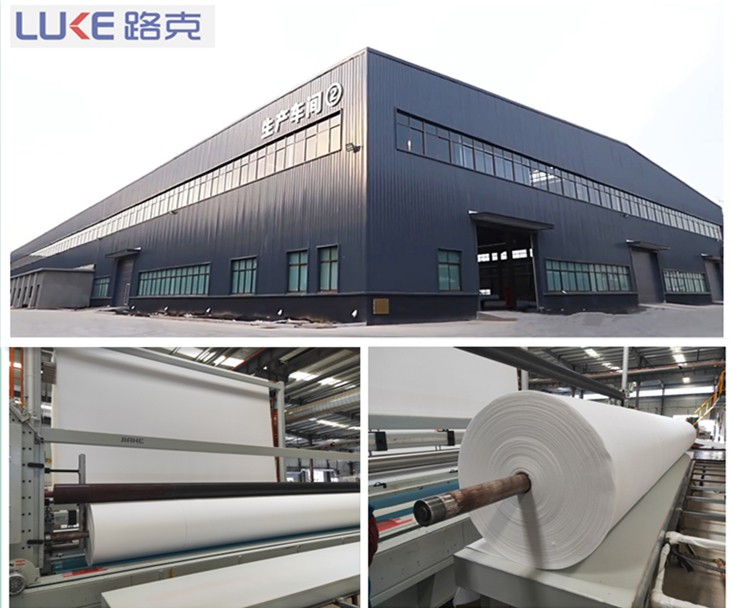

About our company:
Shandong LuKe Composite Co;Ltd. is a company specializing in the production and sales of geosynthetic materials.we mainly produce geomembrane,geotextile,drain board,geogrid,geocell,3D geomat,drain mat,drainage net,grass paver ect.
Our company purpose is :
quality first,reputation first!
Professional equipment,high quality pp geotextiles,first-class service is your best choice. Our products are all over the word,and have received unanimous praise welcome to our company!
