Plastic Foundation Dimpled Drainage Board

Plastic Drainage Sheet have high drainage efficiency.

•Dimple drainage board has high compressive strength.

•The performance of the dimple drainage plate material is stable.

•The use of HDPE dimpled  drainage board is economical and environmentally friendly.

•It can corrosion resistance, and convenient construction.

•HDPE dimple board drainage has strong load resistance and durability.










  Contact Now
Product Details

Platic Foundation Dimple Drainage Board

The drainage board uses polyethylene as the main raw material and is made by stamping in the later stage. It is a material with many potential functions. The use of this plate can be very convenient to construct an overhead layer to form a drainage and exhaust channel. The drainage effect is efficient, and it can also achieve the effect of sound insulation and vibration isolation.Drainage board is widely used in building roof system in the floor overhead, planting roof drainage ventilation, building basement waterproof, system drainage protection, indoor ground moisture insulation protection, highway and railway tunnel drainage waterproof.

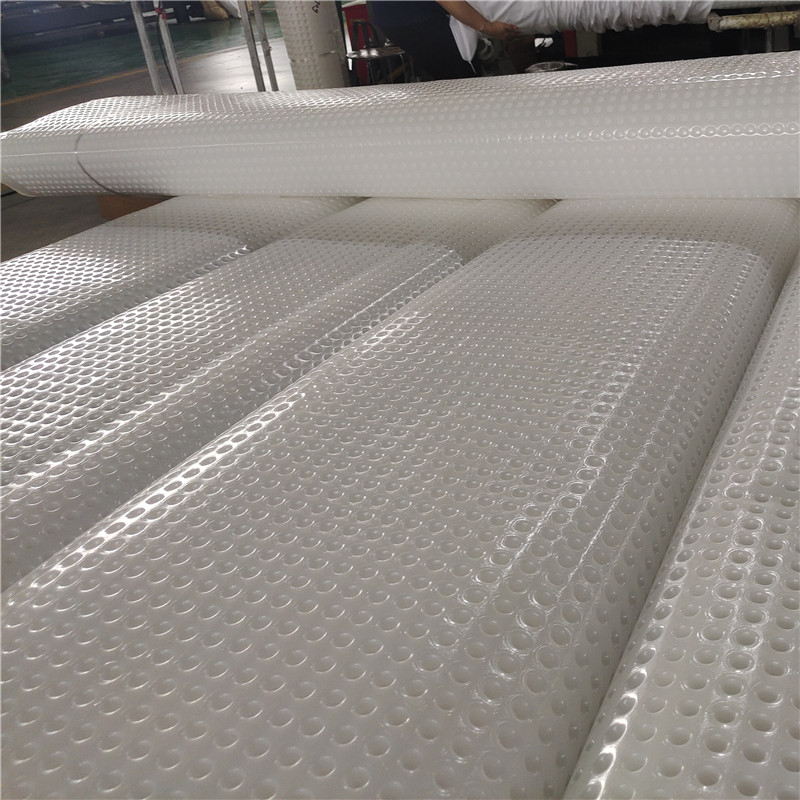

Plastic Foundation Dimpled  Drainage Board.jpg


Drainage Dimple Board  technical parameter:

No


LK-H08

LK-H10

LK-H12

LK-H16

LK-H20

LK-H25

LK-H30

1

Material

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

2

Drain   height(mm)

08

10

12

16

20

25

30

3

Weight(g/m2)

1000

1100

1200

1400

1500

1600

1800

4

Board   thickness(mm)

0.7

0.8

0.9

1

1.1

1.1

1.2

5

Tensile   strength(N/100mm)

350

350

350

350

350

350

350

6

Anti-pression   strength(KPa)

300

300

300

300

300

300

300

7

Elongation   rate(% >)

80

80

80

80

80

80

80

8

Flow   (cm3.s)≥

10

10

10

10

10

10

10

9

CBR puncture   strength N

350

350

350

350

350

350

350

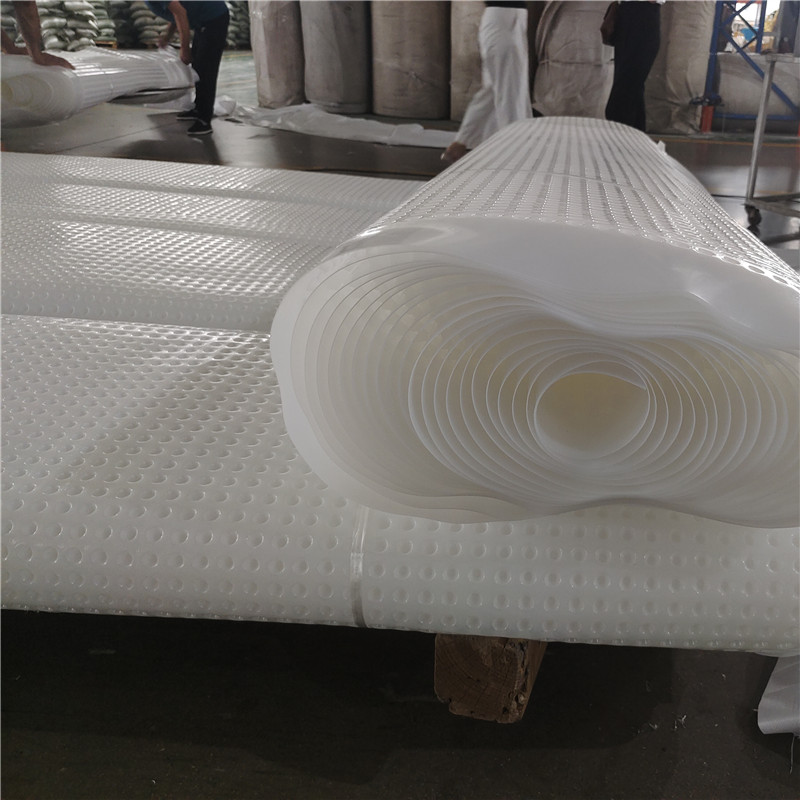

Plastic Foundation Dimpled  Drainage Board.jpg


HDPE drainage dimple board other attributes:

Product Name

 Drainage Board

Cup height/mm

1.0mm~3.0mm

Place of origin

Shandong,China

Roll Length

5-20m

Brane Name

Luke

Width

2-3m

Model Number

Drainage Board

packaging

By roll,as your   need

Material

HDPE

Delivery

Sea transportation

Thickness

8-30mm

Cup height/mm

1.0mm~3.0mm

Volume /weight

40kg-60kg

Color

White,Black ,Green

Cup height/mm

1.0mm~3.0mm

Application

Roof greening,beach   project,etc

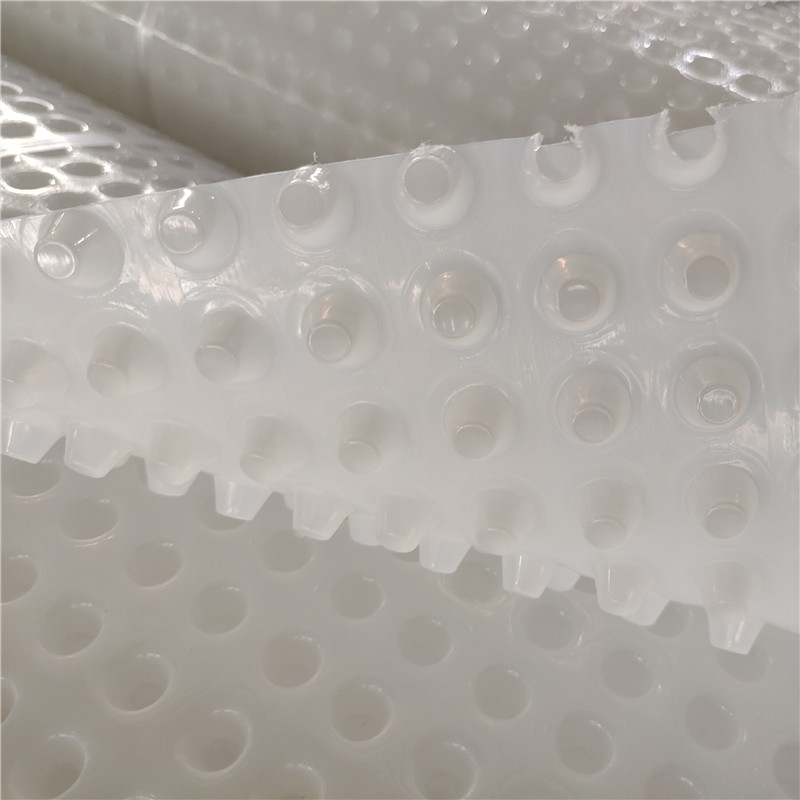

Plastic Foundation Dimpled  Drainage Board.jpg


Shandong Luke HDPE drainage board workshop display:

We have a number of drainage board production lines, high output, sufficient supply, short delivery.


Plastic Foundation Dimpled  Drainage Board.jpg


The function of plastic foundation HDPE drainage dimple board:

hdpe dimple drain board can withstand the extreme load of mechanical pressure in the backfilling process of the planting roof.

◆Effective drainage to avoid leakage on the top floor.

◆The dimple drainage board has excellent drainage and water conduction performance, which can quickly discharge rainwater and avoid water accumulation.

◆The foundation HDPE drainage dimple board can auxiliary waterproof‌: As an auxiliary waterproof material, prevent moisture penetration and protect the foundation of the building.

◆‌Protective effect‌ :When backfilling soil, avoid the damage of waterproof layer, play a protective role.

 Besides the dimple drainage board also has the functions of sound insulation, ventilation and moisture-proof to improve the comfort of the building.


Platic Foundation Dimple Drainage Board.jpg



About us:

Shandong Luke Composite Co; Ltd. is professional company on production and sales geosynthetics for years, which is located at the foot of the beautiful Mountain Tai.

We mainly produce geomembranegeotextile, drain board, geogrid,geocell,3D geomat, drain mat, drainage net, grass paver ect.

Our geosynthetic materials have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa.

Our commitment:

Professional equipment, high quality geomembrane series products, first-class service is your best choice, welcome to our company!

If you want to know more about the dimple drainage board ,you can continue to ask me questions.

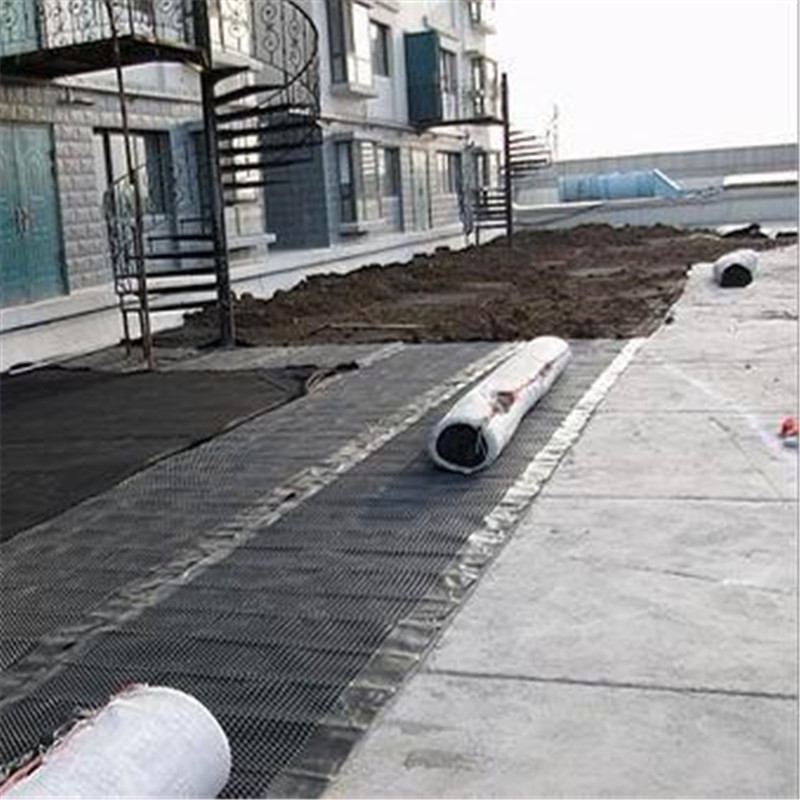

Platic Foundation Dimple Drainage Board.jpg


The application range of the drainage board is very wide, mainly including the following aspects ‌:

◆Greening project:

Drainage board has a wide range of applications in greening projects, such as garage roof greening, roof garden, vertical greening, sloping roof greening, football fields, golf courses and so on.

◆Municipal engineering:

In the municipal engineering,the drainage board is used in the drainage project of airport,road subgrade,subway,tunnel,landfill and other places to ensure the normal operation of municipal facilities.

◆Architectural engineering‌:

Plastic hdpe drainage sheet(board) is also widely used in construction projects, such as the upper or lower layer of the building foundation, the inner and outer walls and floor of the basement, as well as the roof, roof impermeability and heat insulation layer, etc., to improve the service life and safety of the building

◆Water conservancy engineering:

In water conservancy engineering, drainage board is often used in the drainage projects of impermeable water reservoir, reservoir, artificial lake, etc., to ensure the safe operation of water conservancy facilities ‌.

◆Traffic engineering:

HDPE drainage plate also has a wide range of applications in traffic engineering, such as highway, railway roadbed, embankment and slope protection layer drainage engineering, to ensure the safety and stability of traffic facilities.

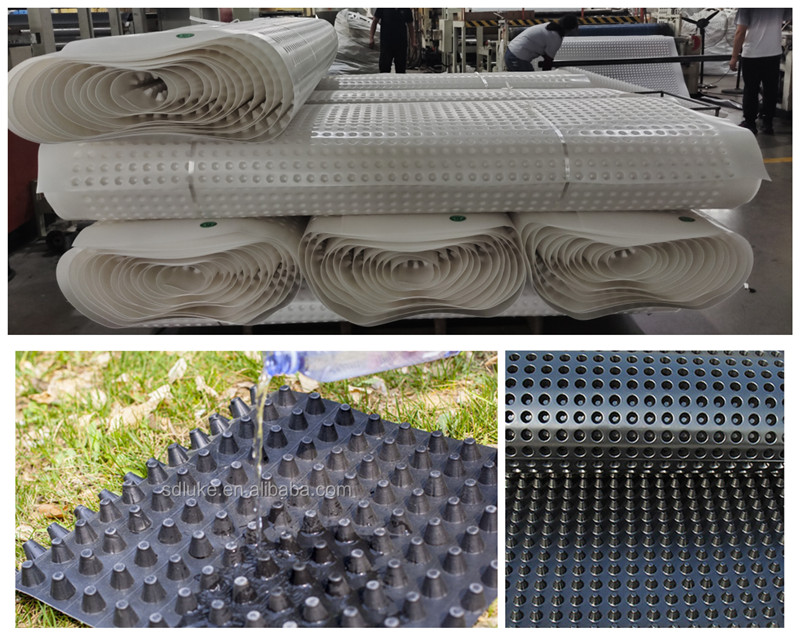

Plastic Foundation Drainage Board.jpg


After-sales service:

Our company provides a one-stop service, and our technical staff provides 24/7 online support to solve any technical problems related to hdpe dimple drain board in a timely manner. Thank you for your love of our products.
