Drainage Plate Plastic Dimple Board

The HDPE drainage plate structural stability.

•The HDPE draining board is light in weight.

•The dimple board drainage has high compressive strength.

It has high drainage efficiency.

It has strong tensile strength.

It is economical and environmentally friendly.

•Drain board for drainage system.

Factory driect sales.










  Contact Now
Product Details

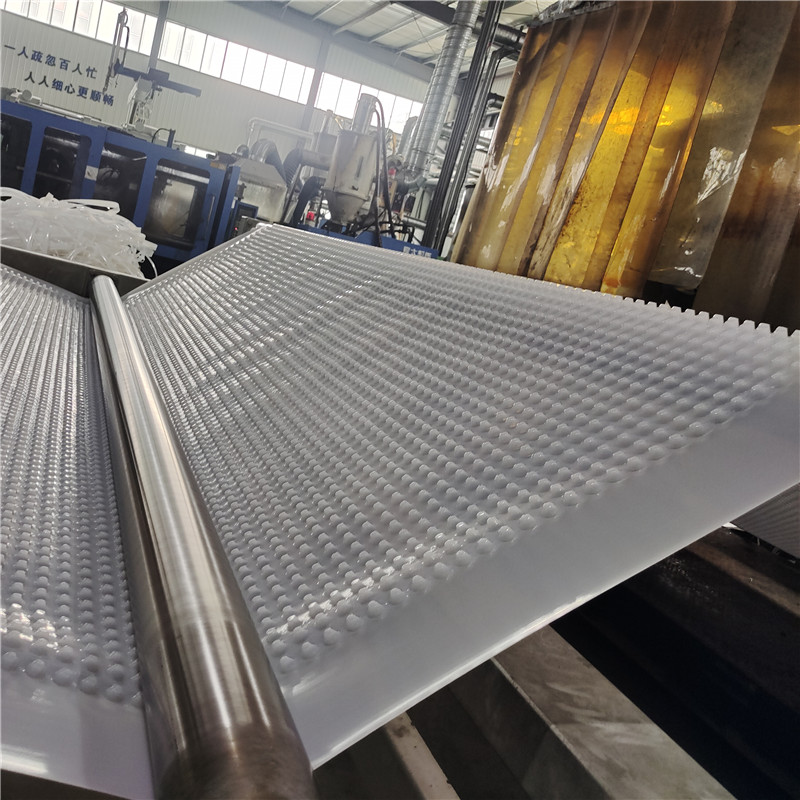

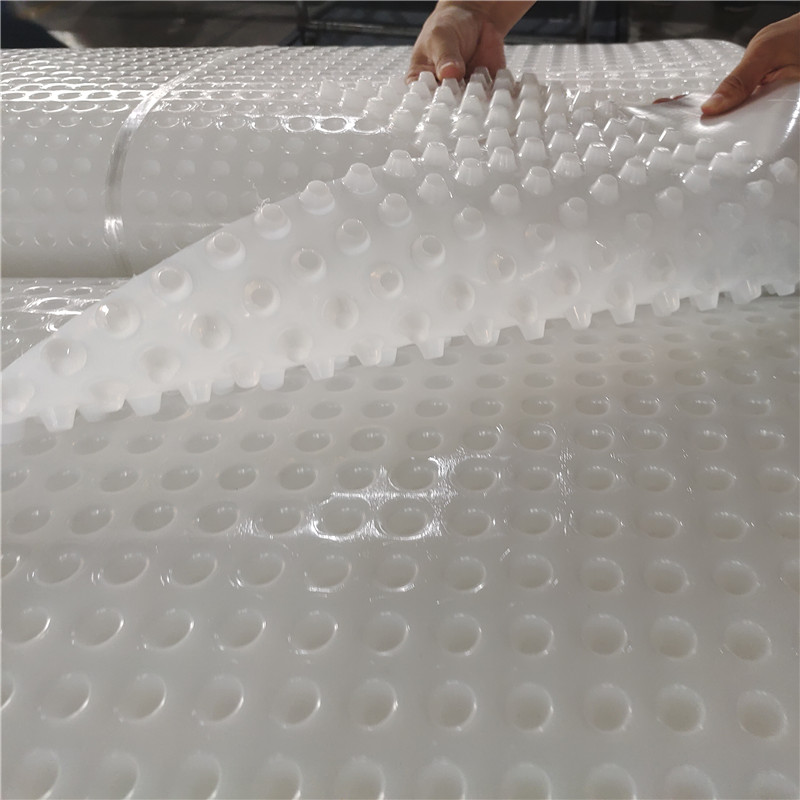

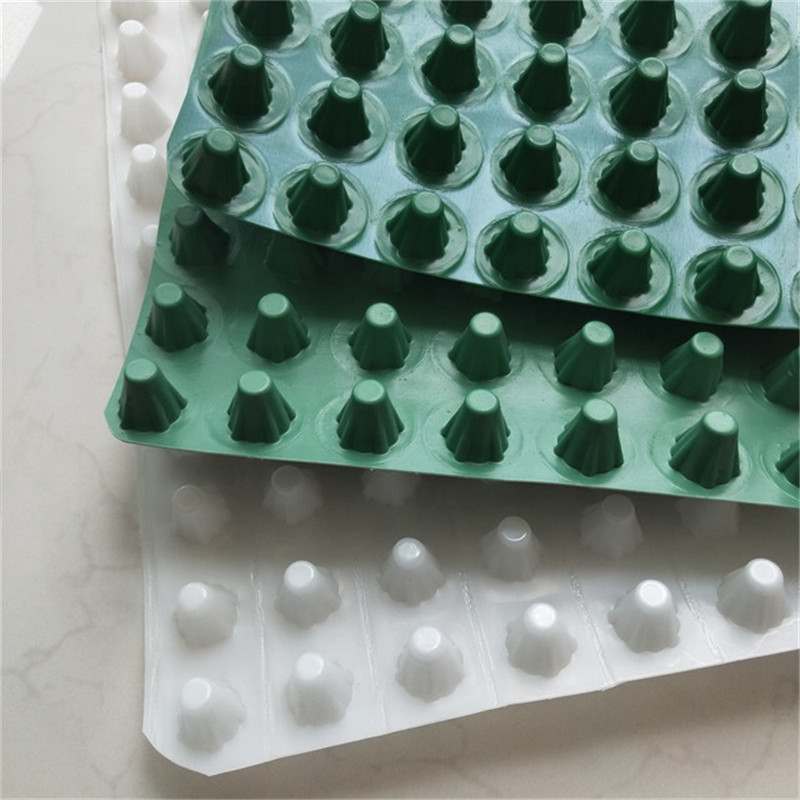

Drainage Plate Plastic Dimple Board

The main raw material of HDPE drainage board is polyethylene.Its surface is continuous and orderly convex shape,which can effectively drain and store water.The width of the drainage board is mainly 1m,2m,and 3m.In addition,the length of the drainage board also has a variety of choices,usually 4 to 10 meters or more,and even up to 15 meters.The drainage board can also be combined with geotextiles and other materials, with drainage, seepage prevention, air permeability, moisture, root separation and other functions, can be widely used in thermal insulation flat roof or underground engineering floor, play a role in tide insulation, drainage, heat preservation and other functions ‌.


Drainage Plate Plastic Dimple Board.jpg


Luke drainage plate dimple board  technical parameter:

No


LK-H08

LK-H10

LK-H12

LK-H16

LK-H20

LK-H25

LK-H30

1

Material

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

2

Drain   height(mm)

08

10

12

16

20

25

30

3

Weight(g/m2)

1000

1100

1200

1400

1500

1600

1800

4

Board   thickness(mm)

0.7

0.8

0.9

1

1.1

1.1

1.2

5

Tensile   strength(N/100mm)

350

350

350

350

350

350

350

6

Anti-pression   strength(KPa)

300

300

300

300

300

300

300

7

Elongation   rate(% >)

80

80

80

80

80

80

80

8

Flow   (cm3.s)≥

10

10

10

10

10

10

10

9

CBR puncture   strength N

350

350

350

350

350

350

350


Drainage Plate Plastic Dimple Board.jpg


HDPE drainage dimple board other attributes:

Product Name

 Drainage Board

Cup height/mm

1.0mm~3.0mm

Place of origin

Shandong,China

Roll Length

5-20m

Brane Name

Luke

Width

1-3m

Model Number

Drainage Board

packaging

By roll,as your   need

Material

HDPE

Delivery

Sea transportation

Thickness

8-30mm

Cup height/mm

1.0mm~3.0mm

Volume /weight

40kg-60kg

Color

White,Black ,Green

Cup height/mm

1.0mm~3.0mm

Application

Roof greening,beach   project,etc


Drainage Plate Plastic Dimple Board.jpg


The feature of HDPE draining board:

◆The drain plate is resistant to aging.

◆The drainage plate drains smoothly.

◆HDPE drainning board strong corrosion resistance.

HDPE Composite Drainage Board can not only drain water but also store water.

◆Strong load resistance and durability.

◆Construction convenience.


 Drainage Plate Plastic Dimple Board.jpg

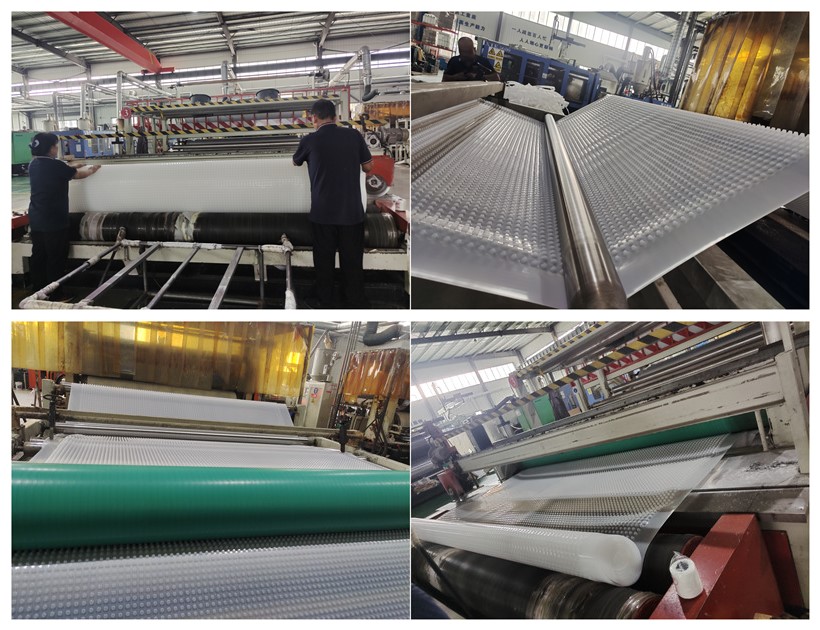

Shandong Luke HDPE drainage board workshop  conner display:

We have a number of drainage board production lines, high output, sufficient supply, short delivery.


Draining Board Workshop Conner Display.jpg

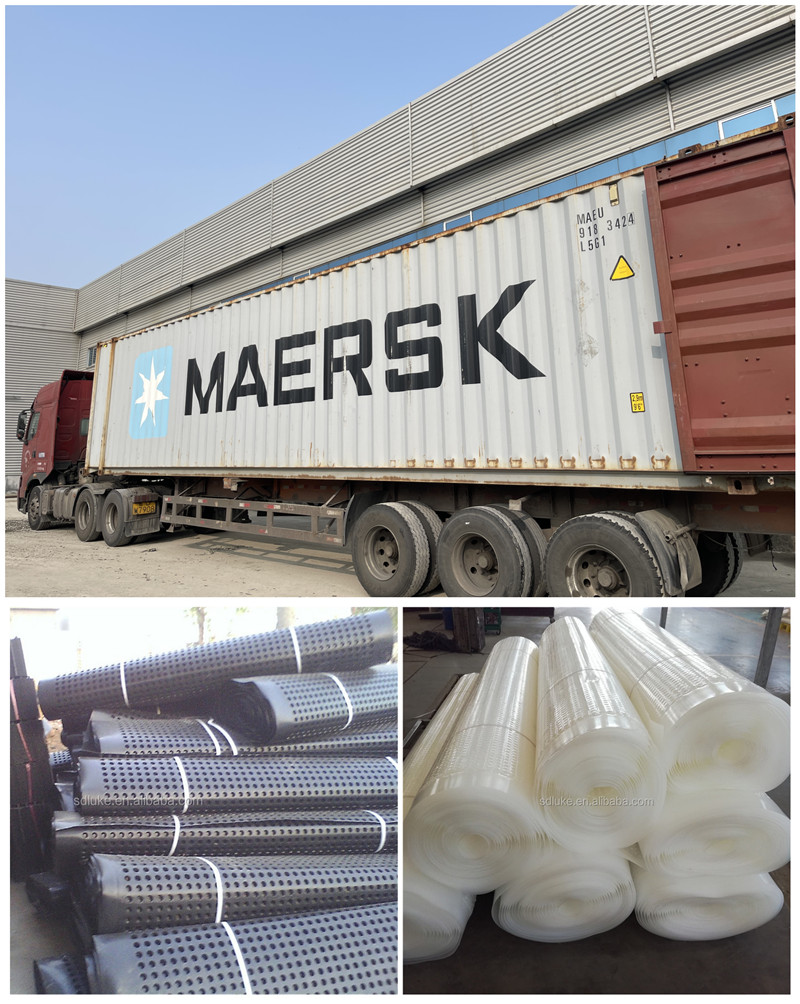

The packaging and divery:

Packed in white woven bag, neatly packed, or according to your requirements.and delivery within the specified date.


HDPE Drain Board Transport and packaging.jpg

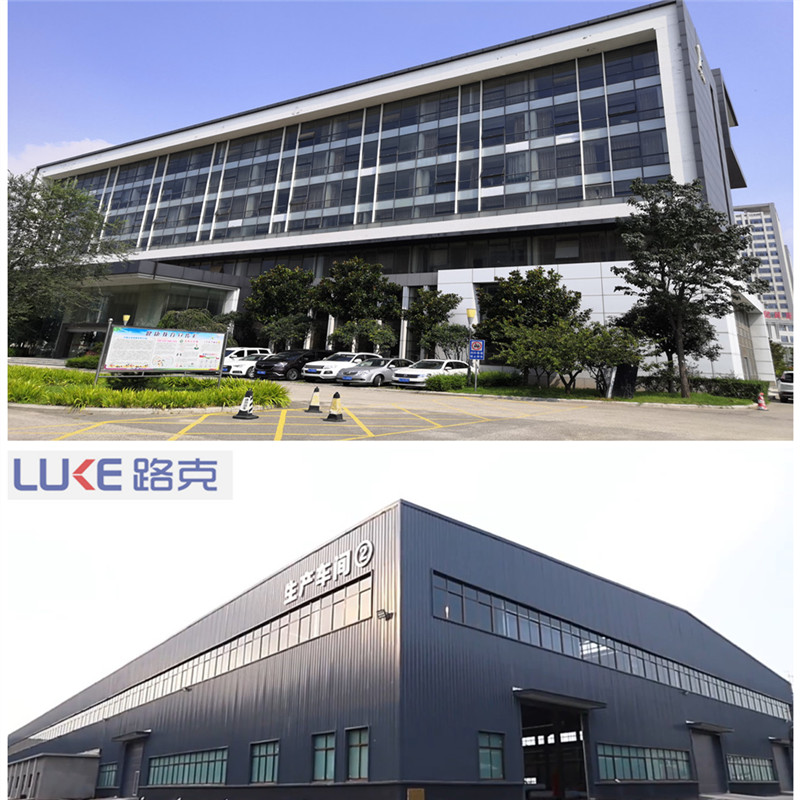

About us:

Shandong Luke Composite Co; Ltd. is professional company on production and sales geosynthetics for years, which is located at the foot of the beautiful Mountain Tai.

We mainly produce geomembranegeotextile, drain board, geogrid,geocell,3D geomat, drain mat, drainage net, grass paver ect.

Our geosynthetic materials have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa.

Our commitment:

Professional equipment, high quality geomembrane series products, first-class service is your best choice, welcome to our company!

If you want to know more about the dimple drainage board ,you can continue to ask me questions.


HDPE Dimple Drainage Board Manufacturer.jpg


Drainage board in different fields of application:

Greening project ‌ : used for garage roof greening, roof garden, football field, golf course, etc.

‌Municipal engineering : including airport, road subgrade, subway tunnel, landfill and so on.

‌Construction project :used for building foundation upper or lower layer, roof green drainage and anti-seepage and heat insulation layer.

The drainage of the basement floor,basement inside and outside wall,protect the main building.

Traffic engineering : highway, railway roadbed pavement, embankment and slope protection layer backflow drainage.

Landscape: Improve soil drainage conditions, promote plant growth.


Dimple Board Drain Construction Case.jpg


After-sales service:

Our company provides a one-stop service, and our technical staff provides 24/7 online support to solve any technical problems related to hdpe dimple drain board in a timely manner. Thank you for your love of our products.


Drainage Board One-stop Service.jpg
