10~30mm Height Drainage Dimple Board

•The performance of the dimple drainage plate material is stable.

•Roof Drainage Plastic Drainage Sheet have high drainage efficiency.

•The HDPE dimple drain board has strong anti-aging ability and no cracking at high and low temperatures.

•Dimple drainage board has high compressive strength.

•It can corrosion resistance, and convenient construction.

•It has strong load resistance and durability.

•Length and width can be produced according to customer requirements.

Contact Now

Product Details

10~30mm Height Drainage Dimple Board

The drainage plate is a kind of plate made of high density polyethylene geomembrane produced by foundation or blow molding, which is formed by pressing out a round table, column and spherical crown shell on the geomembrane through a special process.Through its special design, the drainage board can effectively guide and discharge water, avoid the accumulation of water in the soil,and It can quickly discharge the rain and snow on the roof to avoid the roof structure being soaked and eroded.

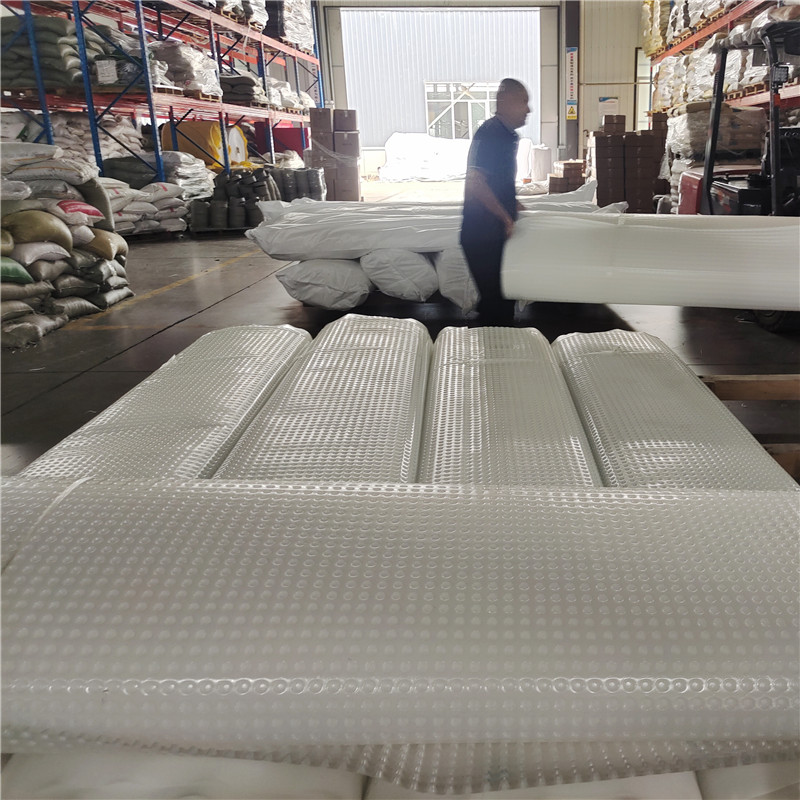

10~30mm Height Drainage Dimple Board.jpg

HDPE drainage dimple board other attributes:

Product Name	Drainage Board	Cup height/mm	1.0mm~3.0mm
Place of origin	Shandong,China	Roll Length	5-20m
Brane Name	Luke	Width	2-3m
Model Number	Drainage Board	packaging	By roll,as your need
Material	HDPE	Delivery	Sea transportation
Thickness	8-30mm	Cup height/mm	1.0mm~3.0mm
Volume /weight	40kg-60kg	Color	White,Black ,Green
Cup height/mm	1.0mm~3.0mm	Application	Roof greening,beach project,etc

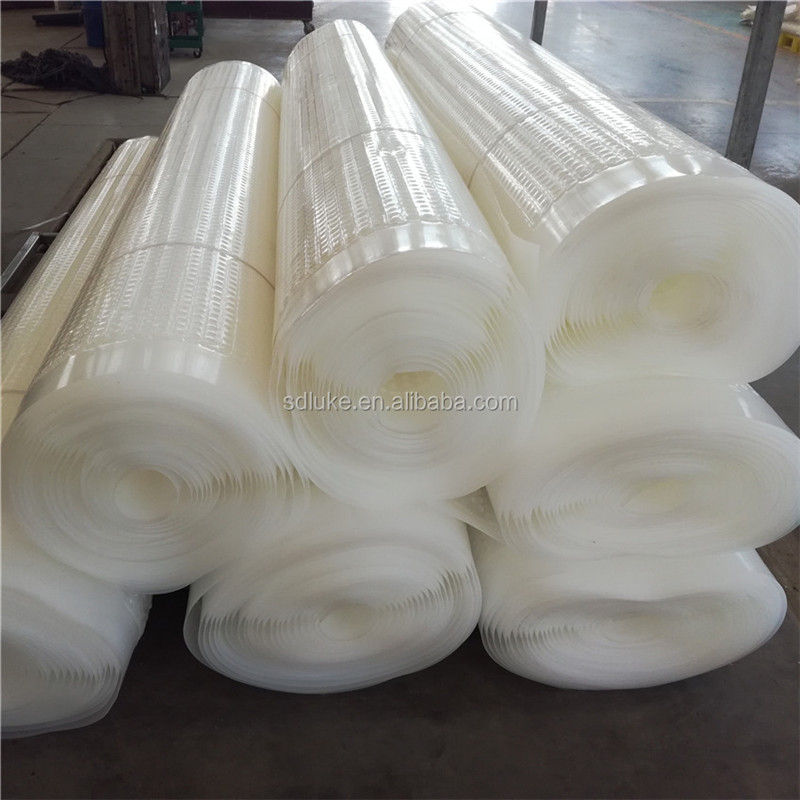

10~30mm Height Drainage Dimple Board.jpg

10~30mm Height Drainage Dimple Board technical parameter:

No		LK-H08	LK-H10	LK-H12	LK-H16	LK-H20	LK-H25	LK-H30
1	Material	HDPE	HDPE	HDPE	HDPE	HDPE	HDPE	HDPE
2	Drain height(mm)	08	10	12	16	20	25	30
3	Weight(g/m²)	1000	1100	1200	1400	1500	1600	1800
4	Board thickness(mm)	0.7	0.8	0.9	1	1.1	1.1	1.2
5	Tensile strength(N/100mm)	350	350	350	350	350	350	350
6	Anti-pression strength(KPa)	300	300	300	300	300	300	300
7	Elongation rate(% >)	80	80	80	80	80	80	80
8	Flow (cm³.s)≥	10	10	10	10	10	10	10
9	CBR puncture strength N	350	350	350	350	350	350	350

10~30mm Height Drainage Dimple Board.jpg

Different lenths HDPE drainage dimple board sheet function:

◆hdpe dimple drain board can withstand the extreme load of mechanical pressure in the backfilling process of the planting roof.

◆Effective drainage to avoid leakage on the top floor.

◆It has a strong ability to resist acid and alkali.

◆HDPE dimple board drain light weight, convenient transportation.

◆The dimple drainage board has excellent drainage and water conduction performance, which can quickly discharge rainwater and avoid water accumulation.

◆Auxiliary waterproof ‌: As an auxiliary waterproof material, prevent moisture penetration and protect the foundation of the building.

◆‌Protective effect‌ :When backfilling soil, avoid the damage of waterproof layer, play a protective role.

Besides the dimple drainage board also has the functions of sound insulation, ventilation and moisture-proof to improve the comfort of the building.

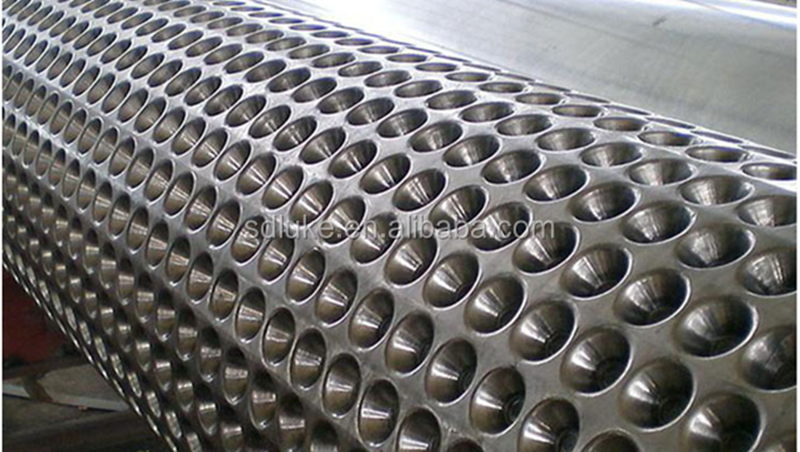

10~30mm Height Drainage Dimple Board.png

10~30mm Height Drainage Dimple Board packaging and delivery:

Standard packaging or customer's requirements.

10~30mm Height Drainage Dimple Board.jpg

After-sales service:

Our company provides a one-stop service, and our technical staff provides 24/7 online support to solve any technical problems related to hdpe dimple drain board in a timely manner. Thank you for your love of our products.

High Density Polyethylene Drainage Dimple Board Sheet.jpg

Dimple drainage board applications in different projects:

Landscape engineering,garage top greening,roof garden,football field,golf course,beach project.

Municipal engineering,road base,subway,tunnel,landfill.

Construction engineering:upper or bottom layer of building foundation,basement wall,bedding filtration and heat insulation.

Traffic engineering: highway, railway basement,dam ect.

10~30mm Height Drainage Dimple Board.jpg

About us:

Shandong Luke Composite Co; Ltd. is professional company on production and sales geosynthetics for years, which is located at the foot of the beautiful Mountain Tai.

We mainly produce geomembrane, geotextile, drain board, geogrid,geocell,3D geomat, drain mat, drainage net, grass paver ect.

Our geosynthetic materials have been exported to more than 30 nations and regions, such as Southeast Asia, Australia, North America, Europe, Middle East and Africa.

Our commitment:

Professional equipment, high quality geomembrane series products, first-class service is your best choice, welcome to our company!

If you want to know more about the dimple drainage board ,you can continue to ask me questions.

10~30mm Height Drainage Dimple Board.jpg
